Model NO.
CLW5038FG7
Seats
≤5
Horsepower
251-350hp
Engine Capacity
6-8L
Storage
Oil
Tire Certification
ISO
Tire Design
Nylon Tire, Tubeless, Radial
Condition
New
Chassis Brand
Dongfeng, Isuzu, FAW, Foton, Shacman, etc.
Gearbox
10 Forward & 2 Reverse Gear
Tank Shape
Square Round, Round
Tank Material
Carbon Steel, Stainless Steel or Aluminum Alloy
Total Volume
5m3-35m3
Load Weight
5ton-30ton
Transport Oil Type
Diesel, Petrol, Gasoline, Oil, etc.
Compartment
According to Customer Requirements
Oil Pump
Optional
Oil Dispenser
Optional
Hose Reel with Filling Gun
Optional, Length Can Be Longer as Per Request
Oil Vapor Recovery System
Optional
Delivery Time
35 Days
Warranty
1 Year
Color
Customized
Transport Package
Naked, Container, RO-RO, Bulk
Specification
9500*2490*3350mm
Trademark
CLW
Origin
Suizhou, China
HS Code
87059099
Production Capacity
500 Units/Month
Transmission Type:
Manual
Power:
Diesel
Load Capacity:
11-20t
Emission Standard:
Euro 4
Tank Volume:
15001-30000L
Drive Wheel:
6×4

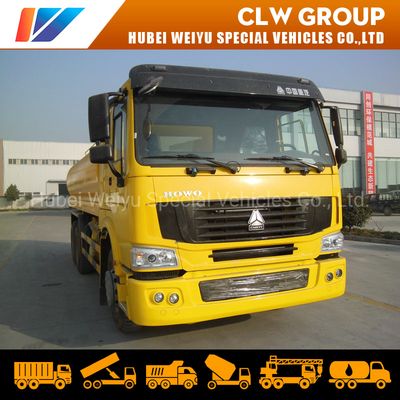

SINOTRUK HOWO 6X4 336HP 18,000L 20,000Liters FUEL TANKER TRUCK DIESEL TRANSPORT TRUCK
Description:
1. Tank material: Q235 (carbon steel) Q304 ( stainless steel) Q316 (stainless steel) 5454 Aluminum.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Specifications
Reference photos
Description:
1. Tank material: Q235 (carbon steel) Q304 ( stainless steel) Q316 (stainless steel) 5454 Aluminum.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Specifications
| Truck Model | SINOTRUK HOWO 6X4 LHD | |
| Dimension (Lx W xH)(unloaded)(mm) | 10200×2500×3210 | |
| Tank volume | 18-20m3 with 2 compartments | |
| Overhang(front/rear) (mm) | 1500/2900 | |
| Wheel base (mm) | 4625+1350 | |
| Max speed(km/h) | 102 | |
| Curb weight(kg) | 11360 | |
| Loading Weight(kg) | 30000 | |
| Engine (Steyr technology, made in China) | Model | WD615.69 water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
| Fuel type | Diesel | |
| Horse Power, max(kw/rpm) | 336HP | |
| Emission | EURO2 | |
| Fuel tanker capacity(L) | 300L with locking fuel cap | |
| Transmission | Model | HW19710,10 forward&2 reverse |
| Power take off | HW70 | |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Steering system | Model | ZF8118 hydraulic steering with power assistance |
| Front axle | HF9 | |
| Rear axle | HC16 | |
| Tyre | 12.00R20 11 pieces(1 spare) | |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw | |
| Starter | 7.5Kw/24V | |
| Cab | HW76 cab(one bunk, with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |
Reference photos
