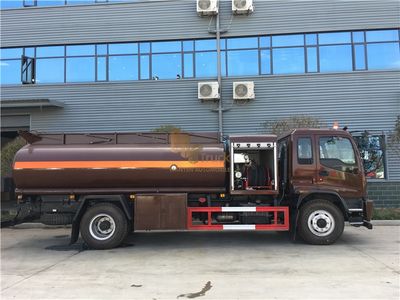

» I. DETAILED VIEW OF ISUZU FVR 15000liters aircraft refueller refueller truck jet aircraft trucks with right hand drive 3300 gallons
| Item | Unit | Description | ||||||||
| Model | FTR Aircraft Refueling Tank truck | |||||||||
| Dimension | mm | 7500*2490*2980 | ||||||||
| Sample Tank Dimension | mm /m3 | 4800*2200*1400 / 10 m3 | ||||||||
| material | Aluminum , 6 mm thick | |||||||||
| Option~ Stainless steel | ||||||||||
| Curb Weight | kg | 6320 | ||||||||
| G.V.W | kg | 16000 | ||||||||
| Wheel Base | mm | 4500 | ||||||||
| F/R track base | mm | 1800/1810 | ||||||||
| F/R Axles Loading | kg | 6300/13000 | ||||||||
| Approach/Departure angle | . | 31/20 | ||||||||
| Traction system | Type | 4*2 | ||||||||
| Tire Specification/Number | Type | 11.00R20, 8+1 Spare Unit | ||||||||
| Max speed | Km/h | 85 | ||||||||
| Engine | Model | 4HK1-TC50 | ||||||||
| Emission/Kw | 5193cc, 151 Kw / 2500 r | |||||||||
| Horse Power | 205 Hp | |||||||||
| Power | 650 N.m - 1600 r/min | |||||||||
| Type | Diesel, 6 cylinder, turbocharge, water cooling | |||||||||
| Brand | Qingling ISUZ Engine Power Co.,Ltd | |||||||||
| Standard | Europ V | |||||||||
| Gear box | model | 6F&1R, Manual | ||||||||
| Electric system | V | 24 | ||||||||
| Cab | Person | 3 | ||||||||
| Type | Reversable, Manual | |||||||||
| Steering | Powering , LHD or RHD | |||||||||
| Installing | Mp3, Radio | |||||||||
| Air Conditioner | Hot Wind / Cold Wind | |||||||||
| Equipment | Installed | Top Installing human foldable ladder, Rear climbing ladder, Top Aluminum type Human port diameter 450mm. Bottom Output and input port with ball valve,Bottom urgent cut off valve, Tool box. | ||||||||
| China manufacturer standard | ||||||||||
| Option | Refueling device, fuel dispenser | |||||||||
| Option | API Standard | |||||||||
» III. DESCRIPTION OF ISUZU FVR 15000liters aircraft refueller refueller truck jet aircraft trucks with right hand drive 3300 gallons
» IV. Production workshop and testing
» V. SHIPPMENT
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
» VI. ABOUT US
HUBEI MANTEN AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck , refrigerated truck and etc. Main info as below:
(1) More than 500 workers, large and advanced production;
(2) 25 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 30,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.
» VII. FAQ
Why choose us?
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,faw,hino,camc,north-benz,ect.
Production supply capacity
Company scale
More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.
