Model NO.
CLW
Seats
≤5
Horsepower
150-250hp
Engine Capacity
4-6L
Storage
Oil
Tire Certification
ECE, GCC, ISO, DOT
Tire Design
Radial
Condition
New
Name
Foton 4X2 Fuel Tank Truck
Drive Model
4X2
Engine
170HP
Cabin
with One Sleeper or Without Sleeper
Volume of Tank
10000L-15000L
Air Conditioner
A/C or Without A/C
Driving Type
LHD or Rhd
No. of Compartment
No. of 1/2/3compartments
Other Key Parts
Discharged Pump/ Discharged Valve/API Manhole
Customizing
Accepted
Transport Package
Naked and Waxed Before on Board
Specification
ISO9001, 3C,
Trademark
CLW
Origin
Suizhou, Hubei
HS Code
8705909990
Production Capacity
1000unit/Month
Transmission Type:
Manual
Power:
Diesel
Load Capacity:
11-20t
Emission Standard:
Euro 2
Tank Volume:
10001-15000L
Drive Wheel:
4×2

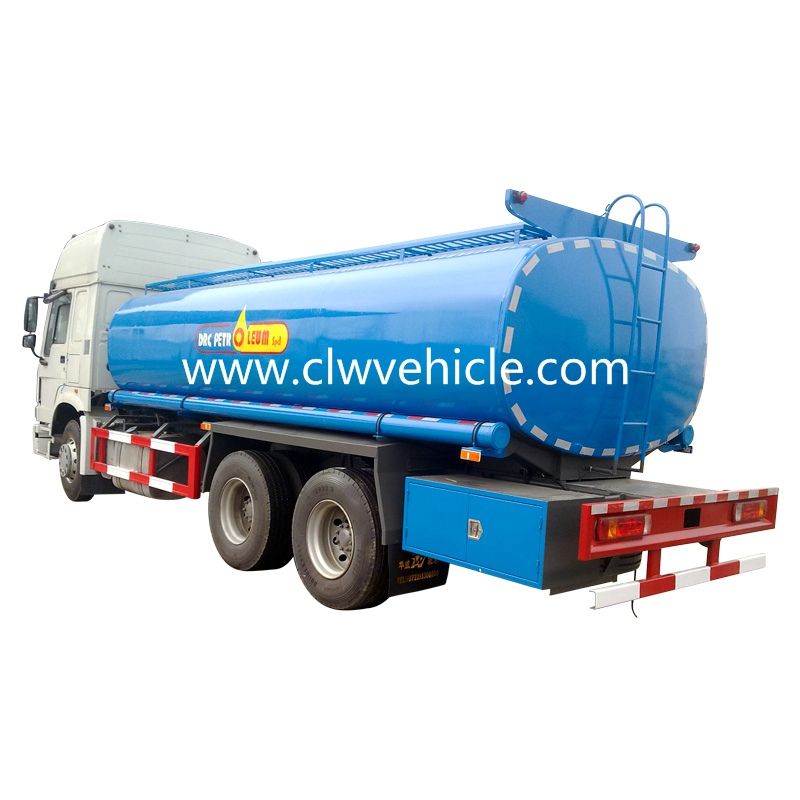

10m3 Fuel Refueling Truck for fuel oil gasoline filling
The Advantages:
1. Oil Saving
2. Safety
3. Driving comfort
4.Reliability
5. Low application cost
Techincal Data as fllows,
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment. LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
If you are interested in our product, please feel free to contact me.
Miss. Cherry Zhou
Address:Chengli Automobile Industry Park,Suizhou City,Hubei Province,P.R.China.
Tel/Fax:+86 2783796298
Mobile : +86 15171731532
findtextile.com/store/chenglitruck
The Advantages:
1. Oil Saving
2. Safety
3. Driving comfort
4.Reliability
5. Low application cost
Techincal Data as fllows,
Description | FOTON 4X2 FUEL TANK TRUCK | |
Drive Model | 4X2 | |
| Chassis | BJ5163 | |
Vehicle Main Dimensions | Dimensions(L x W x H)mm | 8500*2480*3100 |
Wheel base (mm) | 3220 | |
Overhang (front/rear) (mm) | 1365/2435 | |
Wheel track (front/rear) (mm) | 1960/1847 | |
Approach/Departure angle(°) | 16/12 | |
Weight in KGS | GVW. | 16000 |
Curb Weight | 6265 | |
Max. driving speed(km/h) | 80 | |
Engine | Model | ISB170 40 |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power(HP) | 170HP | |
Emission standard | Euro IV | |
Gearbox | 6 forwards & 1 reverse | |
Clutch | Reinforced diaphragm clutch | |
Steering Gear | Power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 150 | |
Tire | 10.00-20 18PR, 6 pieces+1 spare tire | |
Brakes | dual circuit compressed air brake | |
TANK | ||
Material | 6mm carbon steel Q235 Aluminum Alloy/Stainless steel can be chosen | |
Tank Dimensions | Length:5800mm long axis:2250mm minor axis:1560mm | |
Tank Volume | 15CBM | |
Standard Equipment | gravity valve,tool box,fuel pipes ,climb ladder,man hole | |
Remarks | 1> With multiple baffle plates in the tank, the tank has the advantages of high intensity, stability, transporting safety etc. 2> Oil pump is installed to suck or discharge oil, with high suction pressure and speed. 3> According to users' needs, the tank can be designed as a single compartment or several compartments to contain different oils. 4> According to users' needs, the side or the rear of the tank can be installed 1 to 3 self-flowing valves. 5> According to users' needs,the tank panting color can be customized. | |
