Model NO.
ZZ1257N4641W
Seats
≤5
Horsepower
251-350hp
Engine Capacity
＞8L
Storage
Water
Tire Certification
ISO
Tire Design
Tubeless
Condition
New
Colour
Optional
Type
Water Tank
Horse Power
336
Transport Package
Nude
Specification
ISO
Trademark
HOWO
Origin
China
HS Code
8701
Production Capacity
2000
Transmission Type:
Manual
Power:
Diesel
Load Capacity:
21-30t
Emission Standard:
Euro 2
Tank Volume:
15001-30000L
Drive Wheel:
6×4

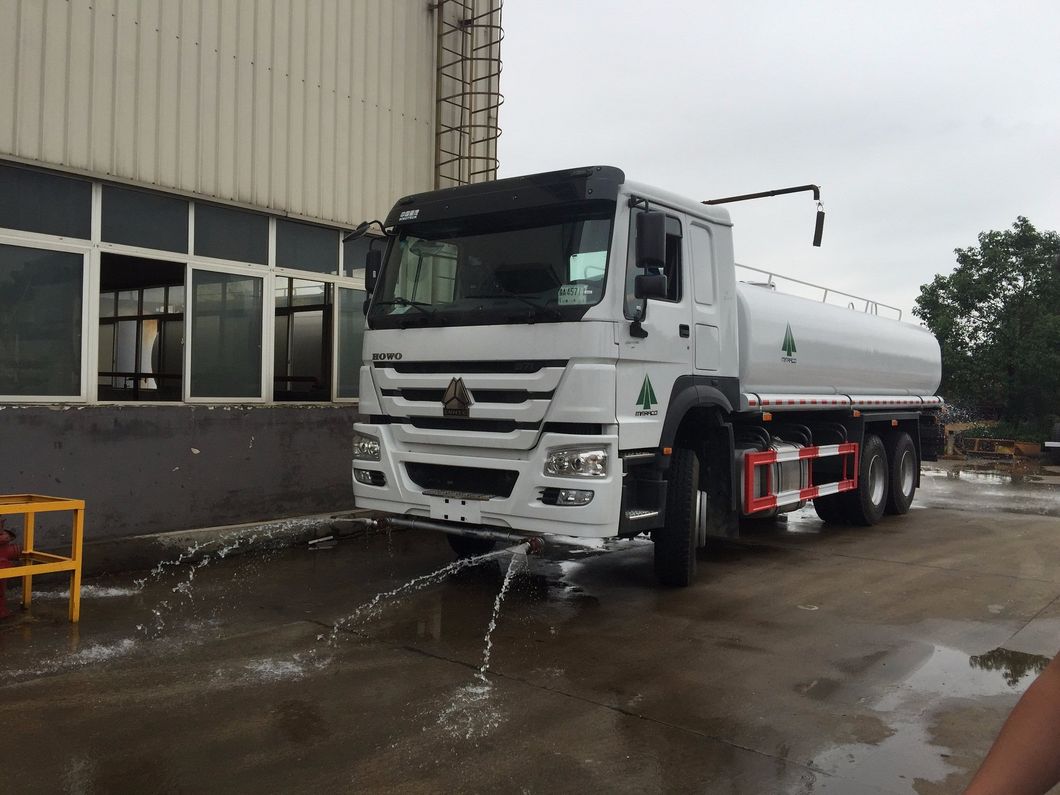

Sinotruk HOWO water sprinker tanker truck (20CBM -25CBM)
Driving model: 4x2; 6x4; 8x4
Engine: 266hp; 290hp; 336hp; 371hp; 420hp
Gear box: Manual Transmission with 10 forwards and 2 reverse
Tire: 12R22.5 Tubless tire; 12.00R20 radial tire
Tanker volume: 10 cbm -35cbm
Material: Carbon steel Q235, Aluminius Alloy 5083; stainless steel 304
Optional: PTO; Pump; Dispensor, Bottom Valve, Flow meter
Payload: 4x2 Payload: 18000kg 6x4 Payload: 30000kg 8x4 Pay
Others:
Equipped with front(rear,side)sprinkler.
Equipped with pump
Equipped with fire valve,water valve,and filter gauze
1. Electrical automatic control, no need to get off the car to start and close operation, convenient
2. the front has 2 sprinklers, can be adjusted up and down the left and right, for road erosion, width of 5-10 meters.
3. the back of a cylindrical sprinkler, sprinkler and dust, covering the width of 14-18 meters
4. Antiaircraft gun: located on the operating platform, you can move in all directions, large trees sprayed, emergency fire, a range of 30-40 meters
Exact Specifications of 20 000liters water sprinker truck
Avantages:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Driving model: 4x2; 6x4; 8x4
Engine: 266hp; 290hp; 336hp; 371hp; 420hp
Gear box: Manual Transmission with 10 forwards and 2 reverse
Tire: 12R22.5 Tubless tire; 12.00R20 radial tire
Tanker volume: 10 cbm -35cbm
Material: Carbon steel Q235, Aluminius Alloy 5083; stainless steel 304
Optional: PTO; Pump; Dispensor, Bottom Valve, Flow meter
Payload: 4x2 Payload: 18000kg 6x4 Payload: 30000kg 8x4 Pay
Others:
Equipped with front(rear,side)sprinkler.
Equipped with pump
Equipped with fire valve,water valve,and filter gauze
1. Electrical automatic control, no need to get off the car to start and close operation, convenient
2. the front has 2 sprinklers, can be adjusted up and down the left and right, for road erosion, width of 5-10 meters.
3. the back of a cylindrical sprinkler, sprinkler and dust, covering the width of 14-18 meters
4. Antiaircraft gun: located on the operating platform, you can move in all directions, large trees sprayed, emergency fire, a range of 30-40 meters
Exact Specifications of 20 000liters water sprinker truck
| Cabin | HW 76 cab, with one bed and air condition, 70°hydraulically tillable to the front | |
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 9800×2500×3200 |
| Wheel base (mm) | 4325+1350 | |
| Wheel track (front/rear) (mm) | 2022/1830/1830 | |
| Approach/Departure angle(°) | 14.5/15 | |
| Weight in KGS | Tare Weight | 12400 |
| payload | 25000 | |
| Front axles loading capacity | 1x7000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed(km/h) | 102 | |
| Engine | Brand | Sinotruk |
| Model | WD615.69 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 336 | |
| Emission standard | Euro 2 | |
| Gearbox | HW19710,10-speed forward and 2 reverse gear | |
| Steering | ZF8098 power steering, hydraulic steering with power assistance | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Fuel tank (L) | 400 | |
| Tire | 12R22.5 tubeless tyre 11 pcs including one spare tire | |
| Tank specification | 25,000 liters Equipped with front(rear,side)sprinkler. Equipped with pump Equipped with fire valve,water valve,and filter gauze | |
Avantages:
1) Factory price, more competitive than agent price
2) Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3) Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles. In Tanzania and Kenya, we have our local agents, in other countries we go to business trips about 5 times per year to solve your problem ASAP.
4) After-sales: Professional after-sales team sovle your difficult or special questions within 3 working days or 5 working days, and all spare parts are available for your urgent use.
5) Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly
