Model NO.
ddws
Tank Volume
15001-30000L
Drive Wheel
4×2
Seats
2
Horsepower
251-350hp
Engine Capacity
＞8L
Storage
Oil
Tire Certification
ECE, GCC, ISO, DOT
Tire Design
Tubeless
Condition
New
Name
Fuel Oil Tanker Truck
Brand
HOWO
Capacity
16cbm 16000liter
Tanker Material
Carbon Steel Aluminum Alloy
Pump
Pump in and out
Transport Package
Nude
Specification
9600x2500x3200
Trademark
Sinotruk
Origin
China
HS Code
8503009090
Production Capacity
500PCS/Week
After-sales Service:
12 Month
Warranty:
10 Year
Transmission Type:
Manual
Power:
Diesel
Load Capacity:
11-20t
Emission Standard:
Euro 3

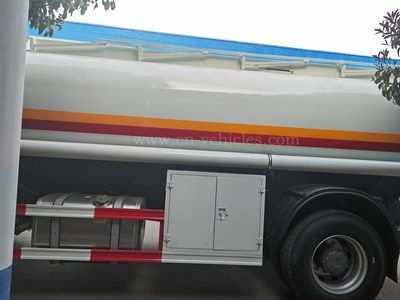

China Manufacturer Fuel Tanker Truck Awd All Wheel Drive Sinotruk 15cbm 16cbm 18cbm 15tons 10tons 10mt 10t 15t 4X2 HOWO Fuel Dispenser Truck
Sinotruk howo 20m3 to 25m3 fuel oil tanker truck is one of our main and competitive products. We can provide you product with high quality and at reasonable price according to your requirements. The tank material could be carbon steel, stainless steel, aluminum alloy, etc. Fuel tank can be chosen with oil pump, flow meter, tanker piston, and bobbin disk. Fuel tank can be separated to several compartments to fill different kinds of fuel. Our tankers are seamless welding and has gone through strict anti-leakage inspection. And the interior tank body has gone through anti-corrosion treatment.
Sinotruk howo 20m3 to 25m3 fuel oil tanker truck Specification:
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
| Condition | New condition/Left hand drive/4x2 | ||
| Chassis | Brand | SINOTRUK HOWO | |
| Curb weight(kg) | 8805 kg | ||
| Loading weight(kg) | 7000/8000/9000 kg | ||
| Wheelbase(mm) | 4200/4500/4700/5000 mm | ||
| Front/Rear axle loading weight(kg) | 4000/7000 kg | ||
| Front/Rear overhang(mm) | 1430/2370 mm | ||
| Approach/Departure angle(°) | 18/12 | ||
| Max. driving speed(km/h) | 80 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6pcs with one spare tire | |
| Specifications | 9.00-20 | ||
| Transmission | Manual type, 8 Forwards and 2 reverses | ||
| Steering | Power steering, hydraulic steering with power assistance | ||
| Cab | It can accommodate three people, With Air conditioner | ||
| Engine | Brand | SINOTRUK | |
| Model | WD615.62 | ||
| Fuel type | Diesel | ||
| Displacement(ml) | 9726 ml | ||
| Power(kw) | 156 kw | ||
| Horsepower(HP) | 266 HP | ||
| Cylinder number | 6 pcs | ||
| Emission standard | Euro 2 | ||
| Upper & Equipment | |||
| Fuel tank | Capacity(cbm) | 15.0 cbm/15 cbm | |
| Tank material | Aluminium alloy | ||
| Thickness(mm) | 5.0mm | ||
| Compartment quantity(pcs) | 1 pcs | ||
| Filling medium | Aviation kerosene | ||
| Fuel pump | Quantity(pcs) | 1 pcs | |
| Model | China local brand | ||
| Notes | 1, Aluminium alloy safety valve 1 pc 2, Mechanical type Ladder 3, Filter system 4, Control system | ||
| Remarks | Customized LOGO design as per customer needs! | ||
