Model NO.
SX4255HU324R
Drive Wheel
6×4
Seats
≤5
Horsepower
251-350hp
Engine Capacity
＞8L
Tire Certification
ECE, GCC, ISO, DOT
Tire Design
Tubeless
Condition
New
Product Name
Shacman 6X4 Tractor Truck with Semi Trailer
Axle Number
3
Engine Brand
Weichai Engine
Brand
Shacman
Drive Type
6*4
Gross Vehicle Weight
8600kg
Horse Power
340HP
Displacement(L)
11.596
Type
Tractor Truck
Visit
Welcome
Tank Capacity(L)
400L
Transport Package
Nude
Specification
8300x2495x2980mm
Trademark
Shacman
Origin
China
HS Code
8701200000
Production Capacity
1000pieces/Year
After-sales Service:
Provide After-Sales Service
Warranty:
1 Year
Transmission Type:
Automatic
Power:
Diesel
Load Capacity:
21-30t
Emission Standard:
Euro 2

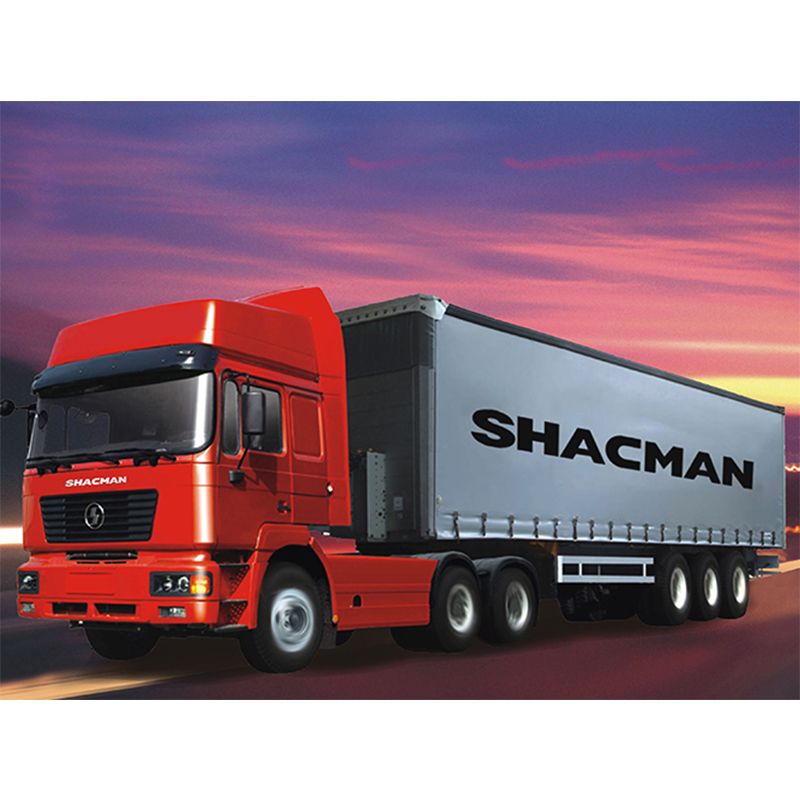

Shacman 6X4 Tractor Truck with Semi Trailer
1.Features:
It is equipped with upgraded STEYR cab based on STEYR technology, WEICHAI WP10 engine series with Euro 2& 3 emissions, STEYR front & rear axle and suspension, STEYR cooling system for chassis, STEYR air inlet and outlet system as well as a frame modified from STEYR technology.
2.Parameters:
| SHACMAN H3000 6×4 TRACTOR TRUCK(Lightweight) | |
| Model | SX4255HU324R |
| Basic configuration:H3000 Cab,Single bed,without A/C,Air main seat, four point air suspension, electric window lifter, telescopic shaft operation, metal bumper, headlamp protection grid, tail lamp protection grid, 165ah maintenance free battery, fuel system anti-theft, battery box anti-theft, adding a long-term coarse filter, rear reflector and reversing buzzer | |
| Dimension(Lx W xH)(mm) | 6850×2500×3300mm |
| GVW (kg) | ≤55000kg |
| Kerb mass(kg) | 8600kg |
| Approach / departure angel | 20/60 |
| Front/rear suspension(mm) | 1485/725 |
| Max. gradeability (%) | 28 |
| Engine brand | Weichai Engine |
| Engine model | WP12.400E201,400hp |
| Rated output power | 294kw |
| Rated speed(rpm) | 1900rpm |
| Emission Standard | E-II |
| Fuel type | Diesel |
| Displacement(L) | 11.596L |
| Driving type | 6×4 |
| Axle number | 3 |
| Wheel base(mm) | 3175+1350mm |
| Clutch | φ430 diaphragm spring |
| Gearbox | FAST 12JSD200T-B,12 Forward&2 Reverse,Manual |
| Front axle | 5.5T MAN,with drum braking system |
| Rear axle | 13T MAN single speed reduction drive axle |
| Steering | Z---F technology right-hand drive(RHD) |
| Frame | 850×270(8+4)mm |
| Type | 12R22.5,10+1pc |
| Tank capacity(L) | 400L |
| Saddle | 50# |
| Max. speed (km/h) | 100km/h |
