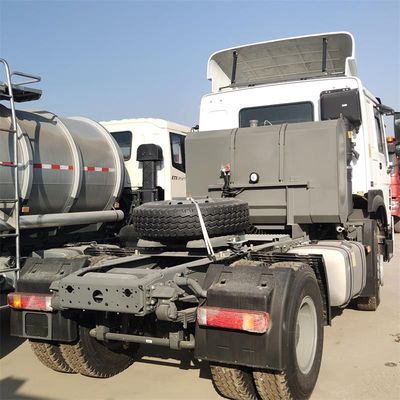

Sinotruk HOWO 2 Axle 4X2 Euro 2 371 HP 6 Wheeler Tipper Truck Dump Truck, Tractor Truck, Phorse Truck

Product detail

Drive Wheel

Seats

Horsepower

351-450hp

Engine Capacity

Tire Certification

Tire Design

Radial

Condition

Product Name

Tractor Truck

Model

Zz4167n3817A

Engine

Wd615.47

Transmission

Hw19710

Front Axle

Rear Axle

Driving Type

LHD/Rhd

Specification

5.6x2.5x3.2

Trademark

Sinotruk

Origin

China

Production Capacity

5000pieces/Year

High Quality Sinotruk HOWO 2 Axle 4X2 Euro 2 371 HP 6 Wheeler Tipper Truck Dump Truck with Low Prices

Model	ZZ4167N3817A Driving Type 4×2
Engine	Engine model: WD615.47, Euro 2 emission standard 4 stroke direct injection diesel engine 6 cylinder in-line with water cooling, turo-charging & intercooling Maximum output: 371hp Euro 2 Maximum torque: 1450Nm at 1300~1600 rpm Bore: 126mm; Stroke: 130mm; Displacement: 9.726L; Compression ratio: 17:1 Specific fuel consumption: 198g/kWh; Engine oil filling quantity: 20L Cooling system filling quantity (long-term filling): 40L Thermostat opening temperature: 71oC Rigid fan Twin cylinder air compressor
Clutch	SINOTRUK's 430C diaphragm spring clutch, hydraulically operating with air assistance
Transmission	Transmission, model HW19710, 10 forward and 2 reverse Ratio:14.28 10.62 7.87 5.88 4.38 3.72 2.43 1.80 1.34 1.00 13.91/3.18(R
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle	New HF9 series, with drum brake system Steering with double T-cross section beam
Rear Axle	HC16 Pressed axle housing, central single reduction and differential locks between axles Ratio: 5.73 Option: 4.22 4.42 4.80
Chassis	Frame: High-strength U-profile frame, all cold riveted cross members and reinforced subframe Front suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Spare wheel carrier: with one spare wheel Fifth wheel size: 2 inch Option:3.5 inch
Steering	ZF8098, hydraulic steering with power assistance Ratio: 22.2-26.2:1
Braking System	Front and rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake
Wheel & Types	1200R20 rear tri angle TR691, front TR668
Driver's cab	long cab, all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, double berths with 4-point support fully floating suspension and shock absorber with transverse stabilizer, air conditioner, safety belt.
Electrical System	Operating voltage:24V, negative grounded Starter: 24V, 7.5KW Alternator: 3-phrase, 28V, 1540W Batteries: 2×12V, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
Dimensions in mm	Wheel base (mm) Front wheel track (mm) Rear wheel track (mm) Front overhang (mm) Rear overhang (mm) Approach angle(°) Departure angle(°) Overall Dimension (mm)	3200+1400 2022/2041 1830 1500 700 16 70 5600×2496×3200
Weight in kg	Dead weight Rated loading capacity at fifth wheel Gross vehicle weight Gross combination weight Front axle loading capacity Rear axle loading capacity	9210 15660 25000 70000 7000 9000×2
Performance	Maximum driving speed(km/h) Maximum gradeability(%) Minimum ground clearance(mm) Minimum turning radius (m) Fuel consumption(L/100km)	102(reference data) 33 265 18.5 40(reference data)
