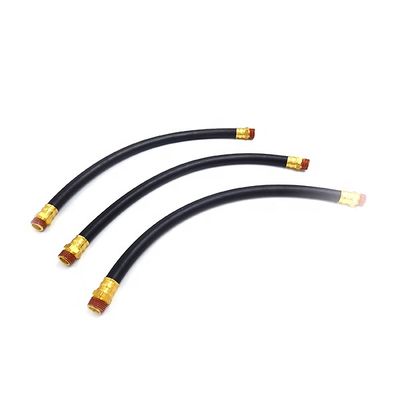

Applications:use in automotive air brake systems including flexible connections from frame to axle, tractor to trailer, trailer to trailer .Widely used in compressed air brake system of large and medium-sized truck and buses.
Construction:Tube:Black synthetic rubber
Reinforcement:High tensile braided fiber
Cover:Black ,red and blue ASTM IRM 903 oil-,ozone-resistant synthetic rubber compound
Working Temperature:-40ºC~+93ºC
Standard: SAE J1402,FMVSS 106
Flexure Test ≥ 1,000,000 cycles
Sizes and technical parameters:
| No | I.D | O.D | W.P | B.P | ||||||
| inch | mm | Tolerance (mm) | inch | mm | Tolerance (mm) | Bar | PSI | Bar | PSI | |
| 1 | 1/4 | 6.3 | ±0.3 | 19/32 | 15 | ±0.5 | 15.5 | 225 | 62 | 900 |
| 2 | 5/16 | 8.0 | ±0.4 | 43/64 | 17 | ±0.6 | 15.5 | 225 | 62 | 900 |
| 3 | 3/8 | 9.5 | ±0.5 | 3/4 | 19 | ±0.6 | 15.5 | 225 | 62 | 900 |
| 5 | 1/2 | 12.5 | ±0.5 | 29/32 | 23 | ±0.7 | 15.5 | 225 | 62 | 900 |
| 6 | 5/8 | 16.0 | ±0.6 | 1-1/16 | 27 | ±0.8 | 15.5 | 225 | 62 | 900 |
3 in 1 ABS Electric&Air Hose Assembly SAE J20 Heater Hose
Ningbo Shijun Auto Parts Technology Co., Ltd is a national high-tech enterprise with rubber hose manufacturing and exporting to the customers around the world. The company located at Linshan, Yuyao city, Zhejiang province.
Air Brake Hose, Hydraulic Brake Hose, Fuel Hose, Radiator Hose, Refrigerant Charging Hose and Air Hose, etc.are the king product of the company. They are widely used among Automotive, AC Refrigeration and Industry Tool.
The company has passed the IATF 16949 quality management system. All production processes strictly followed procedures and quality control systems.
Quality is the cornerstone of SHIJUN's development as the quality orientation, all staffs will make continuous progress to meet customer's requirement.
DOT APPROVED
Question: What is the warranty of the air brake hose?
Answer: 5 years.
Question: How do you guarantee the quality?
Answer: We have strict quality management system,thorough check products before packing .
Question: Can you send samples for testing?
Answer: Yes.We can provide free samples for testing.
