Model NO.
QT-semitrailer
Seats
≤5
Horsepower
451-500hp
Tire Certification
ECE
Tire Design
Tubeless
Dumping Type
Front Lifting Style
Condition
New
Overall Dimensions(Mm)
10428X2495X3480
Container Inner Dimensions(Mm)
7400X2300X1140
Total Weight(Kg)
31000
Rated Load(Kg)
15940
Kurb Mass(Kg)
14865
Container Volume(Cbm)
17
Wheel Base(Mm)
1860+3960+1350
Front Overhang/Rear Overhang(Mm)
1438/1820
Chassis Model
Ca3310p2k2l4t4ea80
Drive Type
8X4
Transport Package
Assembly
Specification
SGS
Trademark
Qingte
Origin
Qingdao, Shandong, China
HS Code
8716
Production Capacity
12, 000/Year
Heavy Duty Dump Truck Dumping Truck
8X4 Tipper Truck, Dump TruckDescription
1.Reliable quality
Adopting advanced production technology and perfect testing equipments to ensure the reliable quality and good performance of trucks. Famous brand main assemblies.
2.Supply Capacity
The trucks shall be on production procedure immediately after you place order. The annually productivity of our factory can reach 3000 truck units. 8X4 DUMP TRUCK fully comply with relevant national standards, at the same time to meet with the individual needs of customers.
3. After-sale Service
We are looking for long term cooperation with customers. Therefore, if there is any quality feedback, we shall provide technical support and after sales service promptly. Easy to wear off parts list for each model is available upon customer's request. Service parts shall be sent along with each complete truck as well to ensure easy maintenance and service of each truck.
| Overall Parameters | |||
| Truck model | STQ3311L8T6B3 | Approach angle | 25° |
| Color | Red, Yellow | Departure angle | 30° |
| Overall dimension(L×W×H) | 10060mm×2490mm×3450mm | Kerb mass | 17500kg |
| Number of tires | 12 | Regular loading capacity | 40000kg~50000kg |
| Track width (front/rear) | 1940/1940/1880/1880mm | Max. loading capacity | 60000kg |
| Overhang (front/rear) | 1460mm/1850mm | Economical speed | 60km |
| Wheel base | 1850+3200+1350mm | Max. speed | 90km |
| ENGINE | |||
| Brand @ Model | Cummins @ LK375 33 | Intake way | Turbo-charge, inter-cooling |
| Rated power & speed | 375HP(276kw) & 2000rpm | Max. torque/speed | 1600N.m @ 1100-1600rpm |
| Engine type | in-line,4-stroke,water-cooled | Bore x Stroke | 116.5mm×148mm |
| Displacement | 6 cylinders,9.5L,diesel | Min. fuel consumption | ≤193(g/KM.h) |
| Emission standard | Euro-III | Fuel injection pump | Domestic |
| GEARBOX | |||
| Brand @ Model | FAST@Fuller @ 12JS160TA | ||
| Type | Manual,12 forward gear,2reverse gear,rated input tonque 1600N.M,with Power take-off | ||
| Gearbox ratio | First gear ratio: 12.1, 12th gear ratio: 0.78 | ||
| Clutch | Dry type,disc diameter Φ430mm | ||
| SUSPENSION SYSTEM | |||
| Front axle | Double 7T front axles | ||
| Rear axle | Reinforced double 16T hub reduction rear axles. Default axle Ratio: 5.92 | ||
| Front suspension | With shock absorber,Number/Thickness of leaf spring: 9/18mm | ||
| Rear suspension | With shock absorber,Number/Thickness of leaf spring: 12/25mm | ||
| BODYWORK DETAILS | |||
| Cargo box | Inner dimension of cargo box(L×W×H):6800mm×2300mm×1650mm,Volume:25.8CBM Cargo box thickness(floor/wall):10mm/8mm | ||
| Dump hydraulic system | Front-installed,Φ180mm, single cylinder,F580 gear pump | ||
| Cabin | T360 flat-roof,rear mechanical type suspension,3 seats,with sleeper | ||
| Chassis frame | Reinforced,Frame breadth 300mm,double-deck sheet(10mm+8mm),Frame width 860mm | ||
| Tire | 12.00R20-18 Aelous radius tire,8.5-20 wheel rim | ||
| Fuel tank | 430L,aluminium alloy | ||
| Exhaust system | Muffler, anti-scald board | ||
| Electrical system | 24V Voltage,2×12V/165Ah Battery | ||
| Brake system | 1.Service brake:dump-type air brake,2.Parking brake:spring type air shut-off brake, 3.Assistant brake:engine exhaust brake | ||
| EQUIPMENT | |||
| Power steering | Front & rear bumper | Spare tire | Windscreen wiper |
| Inter-axle differential | Oil pan protective cover | Tool | Electrical extinguisher |
| Inter-Wheel differential | Taillight protective cover | Engine tachometer | Cigar lighter & ashtray |
| Desert air filter | Air conditioner | Seat belt | AM/FM radio & player |
| Drier | Warm A/C | Front fog lamp | Horn |
| Sun visor | Power windows | Crystal headlamp | Reversing light & buzzer |
Qingte Group,establish in 1958, is a diversified enterprise specialize in Special Vehicle, drive axle, trailer axle , and auto parts like gears and casting with the strength of good quality and pretty competitive price. And real estate.
Sincerely hope to establish communication with you for any possible cooperation in the market
Customized special trailers manufacture and Qingte own design trailer export.
Our main trailers including Cargo transport, flatbed, side wall trailer and skeletal semitrailers(container semitrailers
), Low bed trailer,Tank semitrailers, Modular Trailers (Hydraulic multi axle trailer), SPMT (Self-propelled Modular Transporters),trailer for wind power industry, etc
With rich processing experience and practical expertise, Solid, Durable, and Powerful quality products can be supplied.

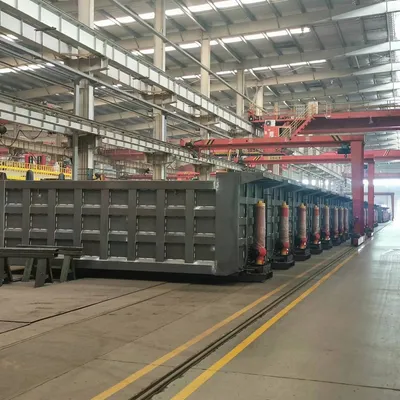

We know how to make better bodies for semi-trailers, dumpers, and trucks
Sincerely hope to establish communication with you for any possible cooperation in the market
Customized special trailers manufacture and Qingte own design trailer export.
Our main trailers including Cargo transport, flatbed, side wall trailer and skeletal semitrailers(container semitrailers
), Low bed trailer,Tank semitrailers, Modular Trailers (Hydraulic multi axle trailer), SPMT (Self-propelled Modular Transporters),trailer for wind power industry, etc
With rich processing experience and practical expertise, Solid, Durable, and Powerful quality products can be supplied.
We know how to make better bodies for semi-trailers, dumpers, and trucks
