QINGDAO HETANCH TRUCK CO.,LTD Original Produced Brand New dumper tipper FAW J6 Dump Truck, FAW J6 Truck, FAW J6 Tipper

QINGDAO HETANCH TRUCK CO.,LTD Original Produced Brand New dumper tipper FAW J6 Dump Truck

Company information
We're one specialist truck refitting and semi trailer manufacturer in China, we could supply various special purpose trucks and semi trailers. Our products are always popular in China several years.
From 2005, China allow exporting completed truck and semitrailer. We established overseas department that year and exported more than 30 counties promptly. Our products got almost clients' love and admiration. We appreciate our clients' fully trust to us, and remember the responsibility every moment.
There're too much processes need to do during producing, we never dare to reduce anyone. And we never dare to reduce any material although it's expensive. All of these only for ensure the high quality and excellent performance.
Respectful  ,  Faithful  ,  Studious  ,  Innovative . Our progress never could leave your supporting. Warmly welcome your coming!



Product details

Other products

Our advantage
1) Manufacturer, more than 14yrs professional experience.
2) CCC,SGS and ISO9001 certificate, one year guarantee term provided.
3) Small order can be accepted.
4) Any color and logo will be available.
5) Products can be custom-made according to your design, or diversified needs.
Certifications


High safety, High reliability, High comfort, High load carrying capacity, Low center of gravity, Low Fuel consumption, Wide frame V rod, and other characteristics.

The J6 dump truck is equipped with a matched low-speed high-torque engine which gives it better climbing ability, with a cast axle housing upgraded from a 300 axle which provides it with higher load-carrying capacity, and with an oil bath cleaner and 24mm thick rear leaf springs as standard which deliver more reliable quality and easier maintenance.

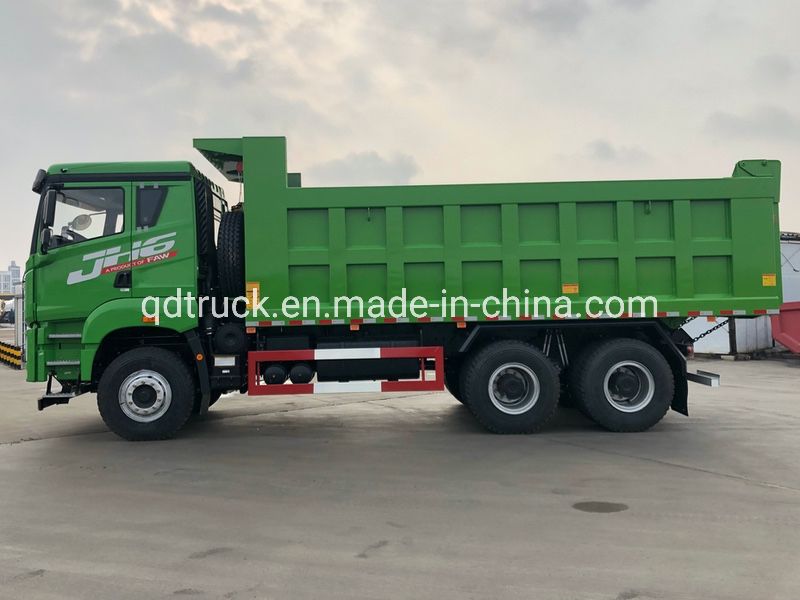

FAW J6 Dump Truck
Type CA3250P66K2
Type Name 6*4 cab over engine reinforced towing truck
Cabin J6, A/C
Engine Model Xichai, CA6DL2-39E3F
Emission standard Euro 3.
Power (KW) 390PS
Clutch model 430mm, single plate, dry, diaphragm
Gearbox Model CA10TA/ FAST 12JSD160TA transmission
Rear Axle LC300 wheel reduction axle
Rear Axle speed ratio 5.733
Wheel & tire 12.00R20, Model 16Ply Rating
Frame Reinforced frame 300*80*(8+5)
Axle Base 3850+1350
Fuel Tank 400.

Overall dimensions Length 8560,
Width 2495
Height 3600(high top)3980(high-top dome) 3800(new high top)
Axle base (full load) 3850+1350
Front overhang(loaded) 1470
Rear overhang(loaded) 890

Wheel base Front wheel 2050
Rear wheel 1830
Ground clearance from topsurface of frame at fifth wheel Unloaded truck 1121
Full load 1058
Ground clearance(front/rear) 285/220
Passing angle(loaded) Approach angle 18
Departure angle 40

Mass
Parameter Curb weight (kg) 9520
Gross truck weight 25000
Weight distribution unloaded Front axle 4750
Second axle

NOTE:
We are a leading special purpose vehicle & vehicle body manuifacturer from China, our products: Refrigerated truck & body, Insulated truck & body, Dry cargo truck & body, Store/stake truck & body, Explosion-proof truck & body, Dump truck & body, Truck crane & body, Mobile catering truck & body,
Mobile stage truck & body, Mobile shop, Mobile kitchen, Cargo van, Medical waste transport truck & body, Box trailer, etc.
