Model NO.
Jingzuan
Specification
1850mm× 690mm× 1090mm
Trademark
ZUBOO or OEM
Origin
Zhejiang China
HS Code
8711600090
Production Capacity
1, 000, 000/Year
Frame Material:
Steel
Tire Size:
10inch
Power:
501-1000W
Certification:
CCC
Voltage:
60V/72V
Transport Package:
Frame Inside/Carton Outside
DETAIL SPECIFICATION:
Color Option: we have painting dept in factory , show us your color, we can paint for you.
SIDE VIEW:
LEFT&RIGHT FUNCTION BUTTON
LCD SPEED METER

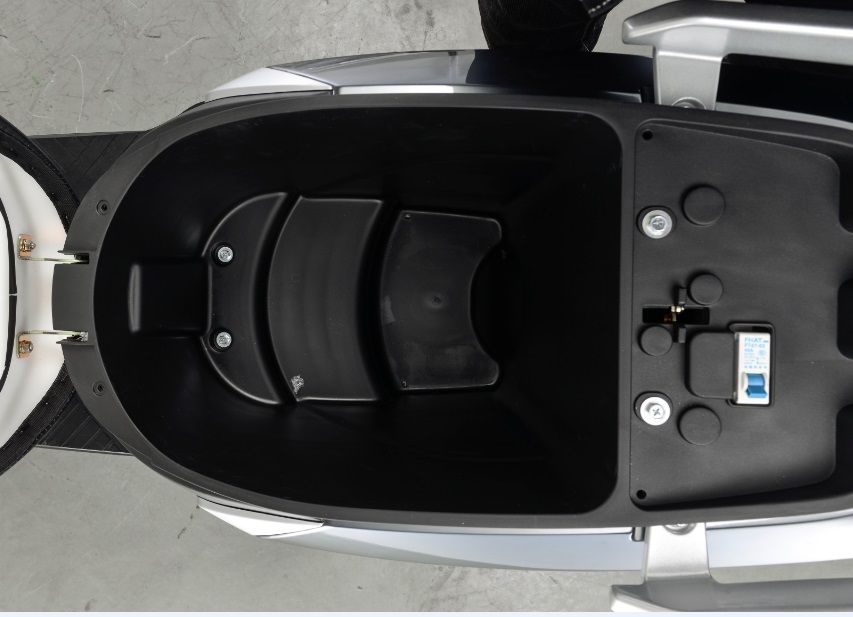

LUGGAGE BOX:
REAR MOTOR:
Packing information:
Both CKD,CBU,SKD are ok
CKD: packed by cartons,usually the same part packed together,
CBU/SKD: steel frame inside/ carton outside
Delivery time:
20-35 days after getting the deposit.
| Size: | 1850mm×690mm×1090mm |
| Wheel base: | 1350mm |
| Ground clearance: | 140mm |
| Seat Height: | 730mm |
| Tyre: | 90/90-10 tubeless tyre |
| Max speed: | 48-50km/h |
| Climbing degrees: | 8º |
| Charging time: | 7-8h |
| Battery: | 72V20AH lead-acid battery |
| Motor: | 1000W-1200W brushless DC motor |
| range: | >60km |
| Brake: | Front disc/rear drum |
Color Option: we have painting dept in factory , show us your color, we can paint for you.
SIDE VIEW:
LEFT&RIGHT FUNCTION BUTTON
LCD SPEED METER
LUGGAGE BOX:
REAR MOTOR:
Packing information:
Both CKD,CBU,SKD are ok
CKD: packed by cartons,usually the same part packed together,
CBU/SKD: steel frame inside/ carton outside
Delivery time:
20-35 days after getting the deposit.
