Model NO.
LT2004
Emission Standard
Euro II
Fuel
Gas / Diesel
Service Life
6-10 Years
Size
Large
Color
Red
Condition
New
Net Power of Engine
147(200) Kw(HP)
Wheel Base(mm)
2280
Front Wheel Tread(mm)
1912(1903-2039)
Rear Wheel Tread(mm)
1831(1667-2231)/2791
Transport Package
Nude Package
Specification
5750*3258*3210mm
Trademark
SINOMADA
Origin
China
HS Code
84295212
Production Capacity
100 Units/Month
After-sales Service:
Free Spare Parts
Warranty:
1 Year
Type:
Wheel Tractor
Usage:
Farm Tractor, Garden Tractor, Lawn Tractor
Certification:
ISO, CE, EPA, CCC, ISO/TS16949
Drive Wheel:
4WD

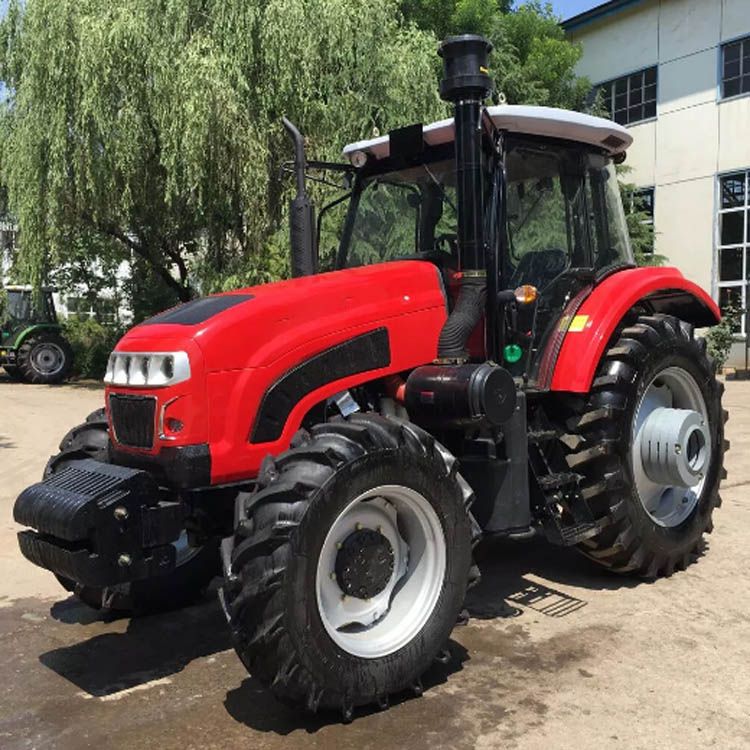

Great Performance 200HP 4WD Large Agricultural Tractor LT2004 with Low Price
Adopt diesel engine,good reliability,large reserves of torque ,dynamic economy is good;
Adopt German power shift Gearbox,40F+40R,rich gears,reasonable matching and high efficiency;
Adopt Italian front drive axle ,advanced structure ,flexible operation;
Adopt electrohydaulic system imported from German ,enabling power adjustment ,other comprehensive adjustment method;
Power take off matched ,four standard speeds (540,540E,1000,1000E) to meet the requirement of varied operations and varied agricultural implements;
New streamlined appearance, generous, modern, fashion;
Tractor Model | LT2004 | |
Drive Type | 4X4 | |
Overall Dimension L×W×H(mm) | 5750×3258×3210 | |
Wheel base(mm) | 2280 | |
Front wheel tread(mm) | 1912(1903-2039) | |
Rear wheel tread(mm) | 1831(1667-2231)(single)2791(double) | |
Min.ground clearance(mm) | 400 | |
Min.steering radius(m) | 8.5 | |
Min.operating weight(KG) | 6100(single)7180(double) | |
Gearbox gears number | 40F+40R | |
Speed | Forward(Kw/h) | 0.34-43.33 |
Reverse(Kw/h) | 0.34-43.33 | |
Engine | Model | WP6T180E220 |
Rated power(Kw) | 147 | |
Rated speed(r/min) | 2200 | |
Tires spec. | Front tires | 16.9-30 |
Rear tires | 20.8-38 | |
Steering Type | Full hydraulic front wheels steering | |
Max.lifting force(KN ) | 31.8 | |
PTO | Type | Rear-mounted,Independent type |
Speed(r/min) | 540(540E)/1000(1000E) | |
Power(Kw) | 119 | |
Control type of ploughing depth | Force Control,Position Control,Force and position combined control,Flotation Control | |
Max.traction force(KN) | 37.8 | |
Front/rear Ballast(KG) | 1120/1040(single)no(double) | |
