Model NO.
TZ16D
Emission Standard
Euro II
Fuel
Diesel
Service Life
6-10 Years
Size
Large
Color
Red, Green, Blue, Yellow, Other Colors
Condition
New
Power
Tractor Hydraulic
Match Power
140-180HP Tractor
Sample
Available in Cost Price
Customized Order
Acceptable
Transport Package
Iron Frame or Nude Packing
Specification
Big tractor wheel loader
Trademark
CYC
Origin
China
HS Code
8430699000
Production Capacity
5000 Sets / Year
After-sales Service:
Factory Directly Supply
Warranty:
1 Year
Type:
Wheel Tractor Loader
Usage:
Farm Tractor, Garden Tractor, Lawn Tractor
Certification:
ISO, CE, CCC, ISO/TS16949
Drive Wheel:
4WD

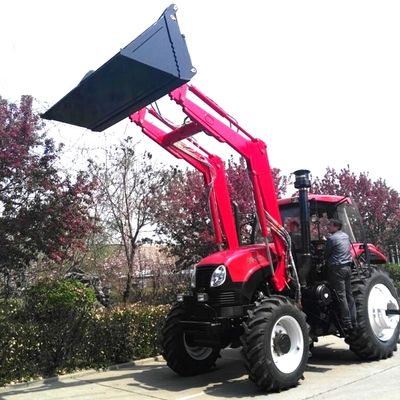

High quality Europe CE Approved TZ16D 140-180HP Agricultural wheel Tractor mounted Front end loader Made in China
Tractor Front end loader introduction :
Front end loader Features,Usage and Specification, Technical Parameters:
The loader with a built in parking standard,is designed to be quickly and easy attached and detached.
TZ series loader utilize the tractors' hydraulic system, feature single-level control with float and come with a bucket level indicator.
Advantages of Front end loader
1.Euro quick-release frame,simple implement exchange. Suitable for other implements with Euro Hooks.
2.High-performance European brand hydraulic system is adopted.3rd hydraulic circuit is optional adds stability to usage of hydraulically operated implements.
3.Mechanical parallel enables perfect angle correction of he implement a all lift heights.
We can manufacture different tractor Front end loader Implements/Attachments/accessories: Standard Bucket, 4in1 combine bucket, Pallet fork, Log/Timber Grab, Bale Fork, Manure Fork, Silage Grab, Grating cover bucket, Bale Grab, Multi-purpose Bale Fork, Stone/Rock Bucket, Pallet handler, Snow blade, Doze blade, Grade blade, Scraper blade,Road/Street sweeper, Snow Sweeper, Snow Blower, etc to meet customer's different demand.
All our Tractor front end loader implements is Quick Hitch type, it can quick release with Frame, simply exchange in different implements, suitable for other Standard hook implements.
Front end loader Specification :
Front end loader Optional buckets, Packing and Loading container for shipping:
We manufacture full series models Front end loader and vairous attchments,match for 15-180HP tractor:
Best price will be quoted for you as soon as receive your Requirement !
Tractor Front end loader introduction :
Front end loader Features,Usage and Specification, Technical Parameters:
The loader with a built in parking standard,is designed to be quickly and easy attached and detached.
TZ series loader utilize the tractors' hydraulic system, feature single-level control with float and come with a bucket level indicator.
Advantages of Front end loader
1.Euro quick-release frame,simple implement exchange. Suitable for other implements with Euro Hooks.
2.High-performance European brand hydraulic system is adopted.3rd hydraulic circuit is optional adds stability to usage of hydraulically operated implements.
3.Mechanical parallel enables perfect angle correction of he implement a all lift heights.
We can manufacture different tractor Front end loader Implements/Attachments/accessories: Standard Bucket, 4in1 combine bucket, Pallet fork, Log/Timber Grab, Bale Fork, Manure Fork, Silage Grab, Grating cover bucket, Bale Grab, Multi-purpose Bale Fork, Stone/Rock Bucket, Pallet handler, Snow blade, Doze blade, Grade blade, Scraper blade,Road/Street sweeper, Snow Sweeper, Snow Blower, etc to meet customer's different demand.
All our Tractor front end loader implements is Quick Hitch type, it can quick release with Frame, simply exchange in different implements, suitable for other Standard hook implements.
Front end loader Specification :
| Front end Loader Model | TZ02D | TZ03D | TZ04D | TZ06D | TZ08D | TZ10D | TZ12D | TZ16D | ||
| Matching Tractor | HP | 15-25 | 20-40 | 30-55 | 45-60 | 55-75 | 70-100 | 90-140 | 140-180 | |
| Max.Lifting Height at Implement Pivot Pin | mm | 2350 | 2550 | 2740 | 3010 | 3400 | 3710 | 3970 | 4260 | |
| Dumpling Height | mm | 1730 | 1840 | 2100 | 2370 | 2480 | 2720 | 3000 | 3200 | |
| Overloading height | mm | 2170 | 2370 | 2560 | 2830 | 3220 | 3490 | 3770 | 4000 | |
| Dumpling Distance | mm | 370 | 500 | 600 | 640 | 690 | 740 | 900 | 900 | |
| Ground clearance at Arm Pivot Pin | mm | 1120 | 1200 | 1360 | 1500 | 1630 | 1780 | 1930 | 1930 | |
| Max.Tip in Angle | Degree | 48 | 48 | 48 | 48 | 54 | 54 | 54 | 54 | |
| Tip out Angle | Degree | 52 | 58 | 58 | 58 | 58 | 58 | 58 | 58 | |
| Crowd angle at lowered lift arm | Degree | 140 | 135 | 135 | 135 | 135 | 145 | 145 | 145 | |
| Digging depth | mm | 90 | 100 | 100 | 120 | 140 | 180 | 200 | 200 | |
| Lifting Force at Implement Pivot Pin | Q1 | kg | 1821 | 2224 | 2144 | 2150 | 1997 | 2308 | 2403 | 2620 |
| Q2 | kg | 1184 | 1474 | 1321 | 1286 | 1187 | 1452 | 1690 | 1850 | |
Front end loader Optional buckets, Packing and Loading container for shipping:
We manufacture full series models Front end loader and vairous attchments,match for 15-180HP tractor:
Best price will be quoted for you as soon as receive your Requirement !
