Packaging Details: Complete tractor package. 40HQ can load 2 units
Delivery Time:Shipped in 20 days after payment

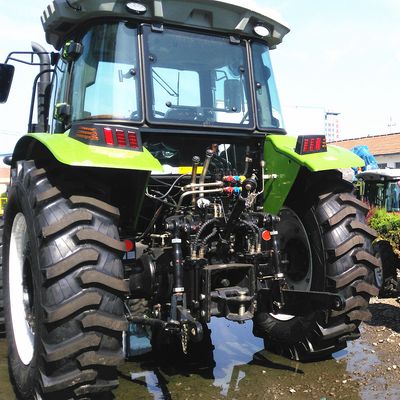

90HP 4WD Huabo brand Fast Wheel Tractor
Product Description
| Description for 90hp-120hp tractor | ||||
| Product model | HB904 | HB1004 | HB1104 | HB1204 |
| Wheel drive | 4x4 | |||
| Dimension(L*W*H) | 4530x2050x2930mm | |||
| Weight | 3690-3840kg | |||
| Front wheel Tread | 1490,1580,1650,1740mm limited adjustable | |||
| Rear Wheel Tread | 1520,1620,1740,1850 limited adjustable | |||
| Wheel Base | 2195mm | |||
| Min Land Clearance | 405mm | |||
| Gear shifts | 16F+8R | |||
| Tyre Size | 12.4-24/16.9-34 (14.9-30/8.3-20) | |||
| Steering gear | Hydraulic steering | |||
| Rear Suspension | Three-point Suspension | |||
| Engine Specification | ||||
| Engine Model | LR4M5 | LR4M3Z | YT4B3Z | LR4M5Z |
| Type | Water cooled ,Vertical,4 stroke and Direct injection | |||
| Rated Power(kW) | 66.2 | 73.5 | 80.88 | 88.2 |
| Rated Revolution | 2300/2400r/min | |||
| Start Way | Electricity Start | |||
| Transmission | 4×(2+1)×2 shifts | |||
| Clutch | Single chip,Dry friction, Double clutch | |||
| PTO Speed | 6 or 8 spline 540/1000 | |||
Company Overview
About us---Weifang Huabo Agricultural Equipment Co., Ltd is Located in the world's capital of kite and the city of green power-Weifang. It is in the Economic Development Area of Weifang and only 3 kilometers to the expressway station of Weifang West, the traffic is very convenient.
The area of the company and its factory is about 2000, 000 square meters and is one modern private enterprise with research, production, and sale. The company has pursued perfect and done things seriously. It has the courage of innovation and has insisted on the production idea of high standard and high quality so its products have been optimized and upgraded constantly. And then the enterprise developed and grown steadily. The company has strong technology force and superior machine and equipments with the auto assemaly line which is advanced in China. The products are in strict compliance with the international norms of quality system and have mature guarantee service system so they have adopted 2000 edition ISO9001 international quality management system certificate. Futher more, Huabo brand products have ever been awarded national patents ten times by the State Intellectual Property Office.
tractor implements
Services for you:
1. Color - Any color you like, we can paint it for you.
2. Warranty time - We supply you 18 months warranty time.
3. Spare Parts - For easy-damage parts, we will send you together with the tractor for free. And in the warranty period, if the spare part does not work because of the quality, we will send you new parts for free.
Procedures of order:
Step 1: 3-5 working days the payments can arrive at our account;
Step 2: We need 3 weeks to finish the farm tractors;
Step 3: CIQ inspection need 3-5 working days;
Step 4: Local transportation and Customs clearance needs 3-5 days.
Payment terms:
1. 30% T/T in advance, 70% T/T before shippment
2. L/C at sight only in large quantity
