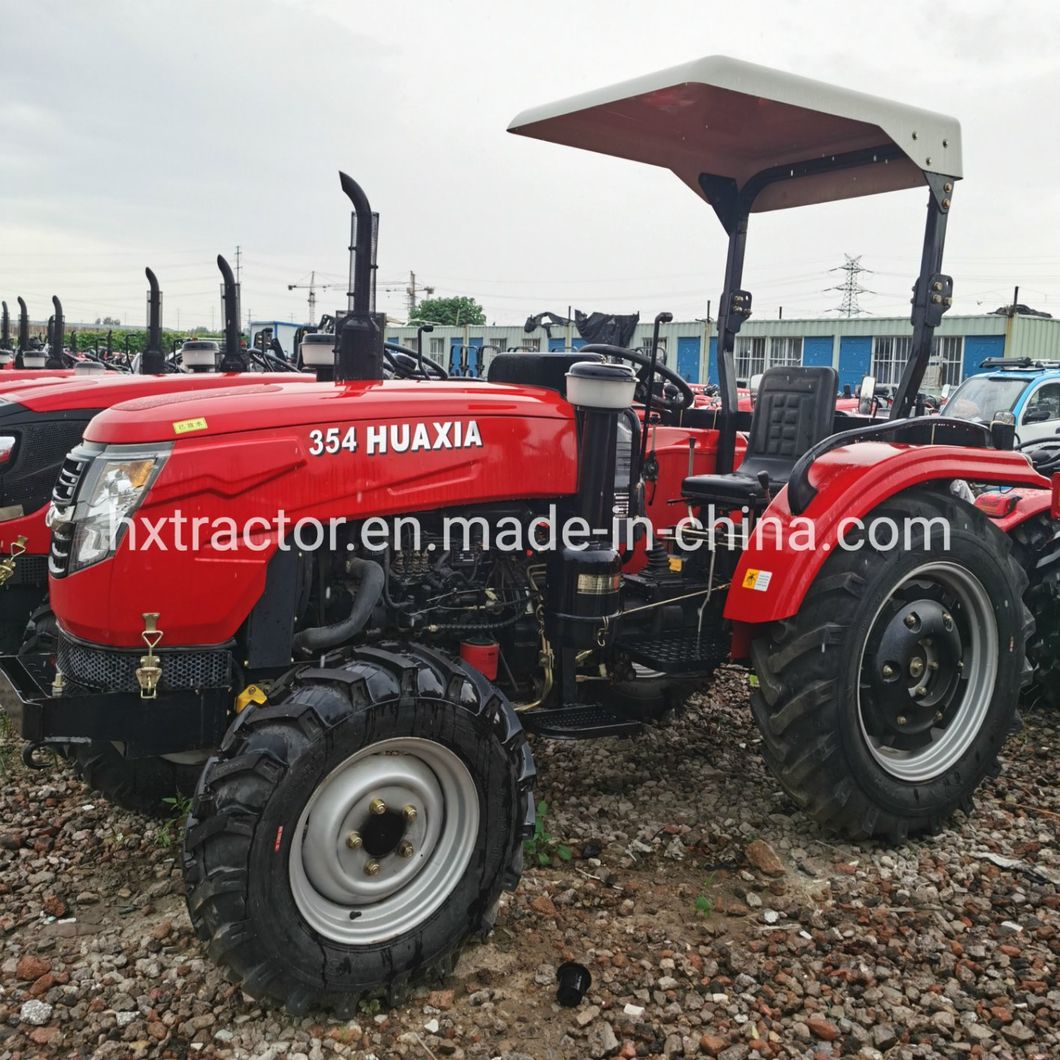

35HP Agriculture Mini Tractor
This series tractor is middle hp tractor, which directly connected with its engine. Jaw type differential lock can improve the pass-ability. Hydraulic output interface can make direct connection with the dump trailer. This series tractor can have many different configurations according to customize demands:single stage clutch or two stage clutch, (4+1)*2 eight shifts in which the creeping shift can be selected, one or two speed PTO, fixed or adjusted tread
| TY series(25hp-45hp) | |||||||||
| Products model | HX254 | HX304 | HX354 | HX404 | HX454 | ||||
| Wheel drive | 4x4 | ||||||||
| Dimension(L*W*H) | 3350x1500x1860mm | ||||||||
| Weight | 1210-1380kg | ||||||||
| Front wheel Tread | 970,1200,1300mm adjustable | ||||||||
| Rear Wheel | 1000,1200,1300mm unlimited adjustable | ||||||||
| wheel Base | 1750mm | ||||||||
| Minimum Land Clearance | 330mm | ||||||||
| Gear shifts | 8F+2R or 8F+8R | ||||||||
| Tyre Size | 4wd: 6.5-16/9.5-24, 2wd: 5.5-16/9.5-24 | ||||||||
| Engine Specification: | |||||||||
| Model | JD or LD or XC | ||||||||
| Type | Water cooled ,Vertical,4 stroke and Direct injection | ||||||||
| Rated Power(kW) | 18.4 | 22.05 | 25.7 | 29.4 | 33.08 | ||||
| Rated Revolution | 2400r/min | ||||||||
| Start Way | Electricity Start | ||||||||
| Transmission | (4+1)×2 shifts | ||||||||
| Clutch | Single chip, Dry friction, Constant conjunction and Double clutch | ||||||||
| PTO Speed | 6 spline 540/720 | ||||||||
Weifang Huaxia Tractor Manufacturing Co.,Ltd. Is located in the world's capital of kite and the city of green power-Weifang. It is in the Economic Development Area of Weifang and only 3 kilometers to the expressway station of Weifang West, the traffic is very convenient
The area of the company and its factory is about 200,000 square meters and is one modern private enterprise with research, production and sale. The company has pursued perfect and done things seriously. It has the courage of innovation and has insisted on the production idea of high standard and high quality so its products have been optimized and upgraded constantly. And then the enterprise has developed and grown strong steadily. The company has strong technology force and superior machine and equipments with the auto assembly line which is advanced in China. The products are in strict compliance with the international norms of quality system and have mature guarantee service system so they have adopted 2000 edition ISO9001 international quality management system certificate. Further more, HUAXIA brand products have ever been awarded national patents ten times by the State Intellectual Property Office.
1. Factory with 20 years farm tractor manufacturing experience ensure the products quality.
2. Two years warranty period.
3. For easy-damage parts, we will send you together with the tractor for free.
4. During warranty period, free spare parts for quality-problem spare parts replacement.
5. Multi-selection of configuration.
6. Offer online technological support.
7. Promise super product quality with best price and service
8. Ensure the shortest delivery time.
9. Farm implements factory price only
(1). Manufacturer or Trading Company
We are leading tractor manufacturer for 20 years, and specialize in 12-240Hp tractors in China.
(2). MOQ
Mini tractor: 8 units
middle tractor(25-40hp): 2 units
Above 50hp: 1 unit
(3). Spare Parts
Free toolbox and easy damaged parts.
(4). Shippment
We can help you arrange shippment.
(5). Delivery Time
Usually 25 days. In peak season,30-40 days
(6). Warranty Time
Complete service system, 12 months since arrival of destination port
(7). Payment Terms
We accept 30%T/T in advance, and 70% T/T before delivery
(8). Tractor Options
Can be equipped with ROPS, Canopy, Cabin, AC Cabin, Air Brakes, Hydraulic Valve Out, Paddy Tire or as per your requirements.
(9). Tractor Logo
We have our own logo. And we also can put your logo for free.
(10). Package and Loading
1.complete tractor package: 2 units/20GP, 4 units/40HQ
2.Iron Frame Package: 8 units/20GP, 16 units/40HQ
(11). Tractor Implements
Rotary tiller, disc plow, furrow plow, cultivator, front end Loader, backhoe, Mower, Trailer, Snow Blower or as per your requirements.
(12). Part supply
Complete Parts Workshop, and can supply all parts
