Model NO.
LT1304
Service Life
6-10 Years
Size
Small
Color
Optional
Condition
New
Product Name
Lutong 130HP 4WD Farm Tractor with Good Price Lt13
Options
Availabe
Application
Ariculture
Key Word
Small Agricultural Tractor
Function
Agricultrual Equipment
Horse Power
130HP
Transport Package
Nude Package or Container
Specification
5050*2370*3000mm
Trademark
LUTONG
Origin
Luoyang
Production Capacity
1000units/Year
Type:
Wheel Tractor
Usage:
Farm Tractor, Garden Tractor, Lawn Tractor
Certification:
ISO, CE
Drive Wheel:
4WD
Emission Standard:
Euro III
Fuel:
Gas / Diesel

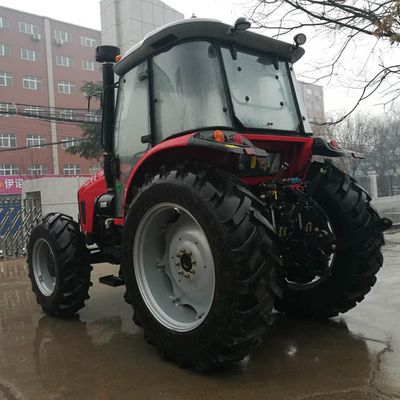

LUTONG 130HP 4WD Farm Tractor With Good Price LT1304
Main technical features
Matching Dongfanghong famous and excellent engine, good reliability, large torque reserve, low fuel consumption and high economic benefit;
Independently operate the double-acting clutch, and adopt 13-inch imported LUK double-acting clutch;
The transmission gear position is 4 × (3 + 1), that is, 12 forward gears and 4 reverse gears. The gear shifting is adopted. The gears are reasonably matched and the operation efficiency is high;
With independent power output device, the transmission is stable and the bearing capacity is large;
Full hydraulic steering control system with independent oil circuit, which is flexible, reliable and labor-saving;
Adopting the hydrostatic disc brake, the braking torque is large and the braking effect is good;
Adopting strong pressure lifter, independent oil supply, reliable performance of the lifting system, optional multiple sets of hydraulic output;
The final transmission uses a planetary reduction mechanism, which has a compact structure and a large reduction ratio;
Brand new streamlined appearance, generous, modern and fashionable.
Matching Dongfanghong famous and excellent engine, good reliability, large torque reserve, low fuel consumption and high economic benefit;
Independently operate the double-acting clutch, and adopt 13-inch imported LUK double-acting clutch;
The transmission gear position is 4 × (3 + 1), that is, 12 forward gears and 4 reverse gears. The gear shifting is adopted. The gears are reasonably matched and the operation efficiency is high;
With independent power output device, the transmission is stable and the bearing capacity is large;
Full hydraulic steering control system with independent oil circuit, which is flexible, reliable and labor-saving;
Adopting the hydrostatic disc brake, the braking torque is large and the braking effect is good;
Adopting strong pressure lifter, independent oil supply, reliable performance of the lifting system, optional multiple sets of hydraulic output;
The final transmission uses a planetary reduction mechanism, which has a compact structure and a large reduction ratio;
Brand new streamlined appearance, generous, modern and fashionable.
| Tractor Model | LT1304 | |
| Drive Type | 4×4 | |
| ××Overall Dimension L×W×H(mm) | 5050×2370×3000 | |
| Wheel base(mm) | 2688.5 | |
| Front wheel tread(mm) | 1822-2153 | |
| Rear wheel tread(mm) | 1662-2262 | |
| Min. ground clearance(mm) | 470 | |
| Min. steering radius | 7 | |
| Min. operating weight (KG) | 4810 | |
| (+)Gearbox gears number | 12/4 | |
| Speed | Forward(Kw/h) | 29.63-2.19 |
| Reverse(Kw/h) | 13.83-4.72 | |
| Engine | Model | LR6A3ZU22/0956E |
| Rated power (Kw) | 95.6 | |
| Type | ,,,,,6 cylinders, in line, water cooling, 4 strokes, direct injection, natural aspiration | |
| Rated speed (r/min) | 2200 | |
| Tires spec. | Front tires | 14.9-26 |
| Rear tires | 18.4-38 | |
| Steering Type | ||
| Max. lifting force( KN ) | ≥28 | |
| /Front / rear Ballast (KG) | 600/400 | |
| Control type of ploughing depth | , Height control & flotation control | |
| PTO | Type | ,Rear-mounted, Independent type |
| Speed (r/min) | 540/720 | |
| Power(Kw) | 81.7 | |
| Max. traction force (KN) | 32 | |
