LT2104L 210HP Tractor
01. Dongfanghong LR6M3LR22 / 1324 high-pressure common rail engine
02. 14-inch double-acting clutch
03. Hydraulic assisted manipulation of three sets of hydraulic outputs
04. Transmission gear position is 12F + 4R

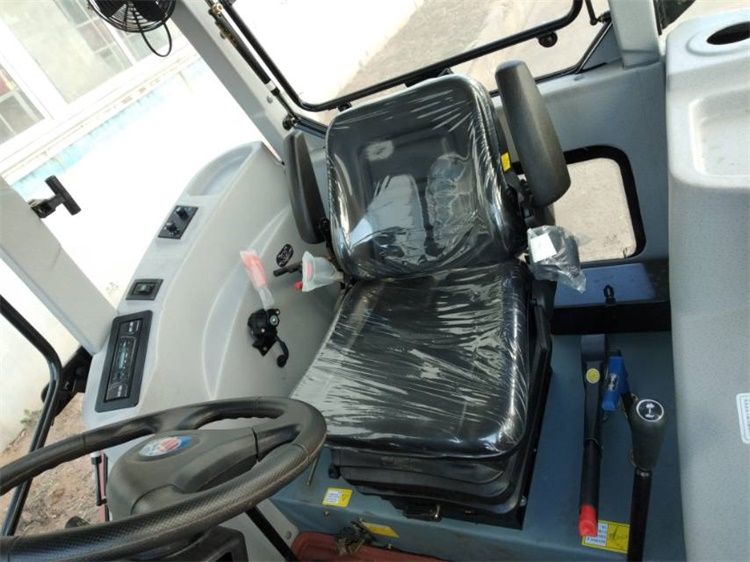

05. Fully enclosed luxury cab
06. Front and rear cast iron counterweights
07. Front and rear tires 14.9-26 / 18.4-38
08. With air conditioning
09. Xulun ARMOUR tires
01. Adopt yto diesel engine, good reliability, large reserves of torque, dynamic economy is good.
02 Adopt German ZF power shift Gearbox, 40F+40R, rich gears, reasonable matching and high efficiency.
03 Adopt Italian CARRARO front drive axle, advanced structure, flexible operation.
04 Adopt REXROTH electro-hydraulic system imported from German, enabling power adjustment, another comprehensive adjustment method.
05 Power take-off matched, four standard speeds (540,540E,1000,1000E) to meet the requirement of varied operations and varied agricultural implements.
06 New streamlined appearance, generous, modern, fashion.
Drive Type | 4X4 | |
Overall Dimension L×W×H(mm) | 5750×3258×3210 | |
Wheel base(mm) | 2280 | |
Front wheel tread(mm) | 1912(1903-2039) | |
Rear wheel tread(mm) | 1831(1667-2231)()2791() | |
Min.ground clearance(mm) | 400 | |
Min.steering radius(m) | 8.5 | |
Min.operating weight(KG) | 6100()7180() | |
Gearbox gears number | 40F+40R | |
Speed | Forward(Kw/h) | 0.34-43.33 |
Reverse(Kw/h) | 0.34-43.33 | |
