Model NO.
HX354
Emission Standard
Euro III
Fuel
Gas / Diesel
Service Life
6-10 Years
Size
Medium
Color
Green
Condition
New
Brand
Huaxia
Delivery Time
2 Weeks
Length
3350mm
Width
1350mm
Height
1500mm
Weight
1300kg
Tyres
6.5-16/9.5-24
Engine
Jd&Ld
Wheel Base
1750mm
Transport Package
Iron Frame
Specification
CE CCC ISO
Trademark
Huaxia
Origin
Shangdong, China
HS Code
8701921000
Production Capacity
50000
After-sales Service:
Online Support
Warranty:
Online Service & Spare Parts
Type:
Wheel Tractor
Usage:
Farm Tractor, Garden Tractor, Lawn Tractor
Certification:
ISO, CE, CCC
Drive Wheel:
4WD

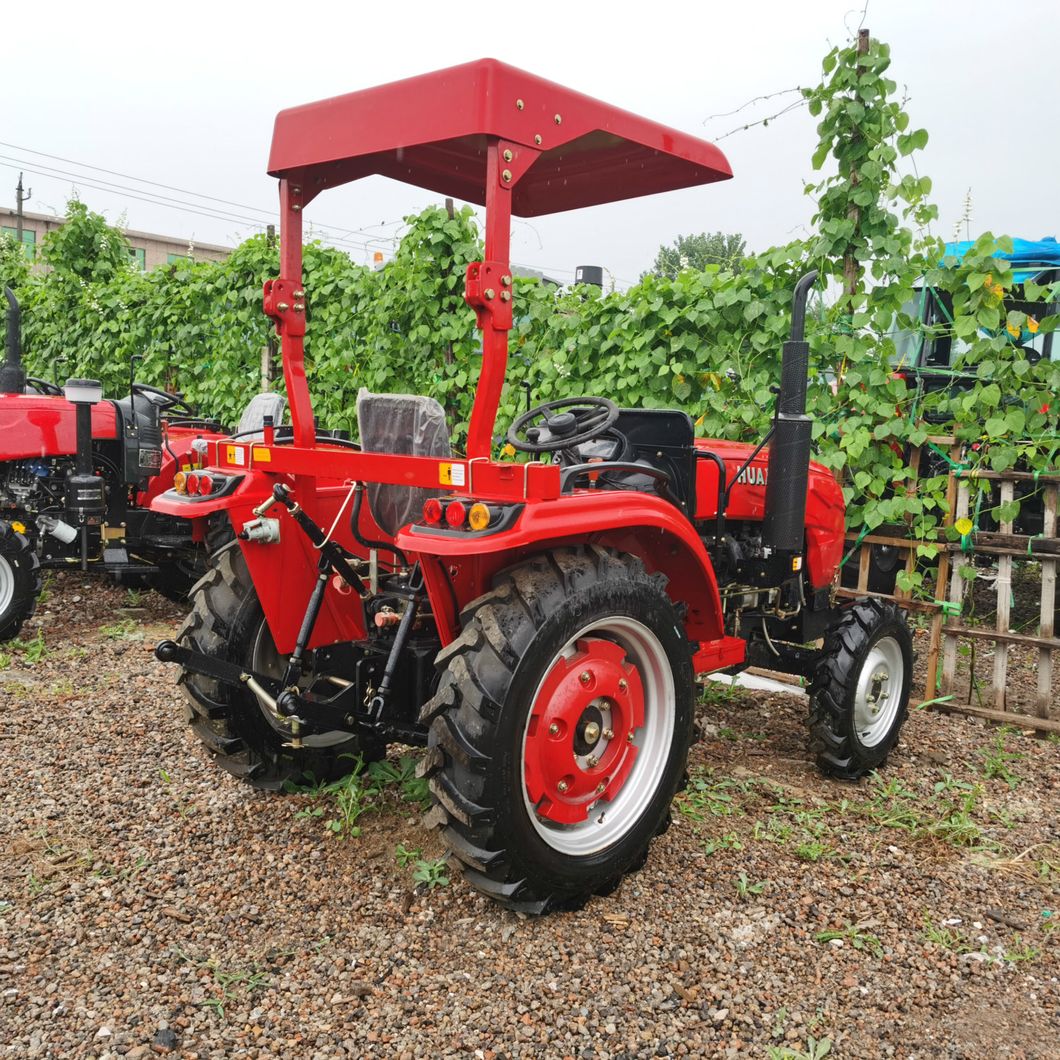

Huaxia 25 to 45HP 4WD Tractors with Sunshade
18-45HP Tractor Full Specification :
From DY184 to DY404 DY 254~404 | ||||||||||
Models | 184(180) | 204(200) | 254(250) | 284(280) | 304(300) | 354(350) | 404(400) | |||
wheel Drive | 4×4(4x2) | |||||||||
Dimension(L*W*H)mm | 3350*1500*1860 | |||||||||
Weight(kg) | 1210-1380 | |||||||||
Front wheel Tread(mm) | 970,1200,1300 unlimited adjustable | |||||||||
Rear Wheel(mm) | 1000,1200,1300 unlimited adjustable | |||||||||
wheel Base(mm) | 1750 | |||||||||
Minimum Land Clearance(mm) | 330(340) | |||||||||
Gear shifts | 8F+2R | |||||||||
Tyre Size | 9.5-24/650-16(9.5-24/550-16) | |||||||||
Engine Specification | ||||||||||
Model | JD295 | JD295 | JD2100 | JD2102 | JD/LD 390 | JD490 or LD 4L22 | JDM490 or LD4L23 | |||
Type | 2 Cylinder or 3 Cylinder | 3 Cylinder | 4 Cylinder | |||||||
Type | Fuel Diesel ,water cooled ,Vertical,4 stroke and Direct injection | |||||||||
Rated Power(kW) | 13.23 | 16.16 | 18.37 | 20.58 | 22.06 | 25.7 | 29.4 | |||
Rated Revolution(r/min) | 2300/2400 | |||||||||
Start Way | Electricity Start | |||||||||
Transmission | (4+1)*2 shifts | |||||||||
Clutch | Single chip,Dry friction,Constant conjunction, Single clutch.double clutch | |||||||||
PTO Speed | 6 spline, Dual speed 540/720 | |||||||||
Clutch | Single stage Clutch | |||||||||
Steering | Hydraulic Steering and Double hydraulic Pumps | |||||||||
Optional part | Roll bar | Swing draw bar | ||||||||
Sun-shade ,canopy (ROPS) | spring seat | |||||||||
Multi-way valve | Double clutch | |||||||||
fender | 7.5-16/11.2-24 Tire | |||||||||
Air brake | combination instrument | |||||||||
Steel frame package | Cabin(including the heater and fan) | |||||||||
Part details:
Package :
1. Complete package(assemble tractor): 20GP : 2 units /40HQ : 4 units
2. SKD package: (steel frame package) 20GP: 8 units /40HQ : 16 units
Implement (more implements,kindly contract me):
Company Simple introduction:
we are tractor manufacturer in china for 17 years ,
our main product is 10hp to 180hp all kinds of tractor
| Company Name | Weifang Huaxia Tractor Manufacturering Co.,Ltd |
| Founded in | 1999, Weifang City, Shandong Province (Production Base) |
| Main Products | Mini Tractors / Farm Tractors / Garden tractors/10hp to 180hp |
| Who We Are | We have over 100 Professional Partners located in 50 countries |
| Quality Certificates | CCC, GOST, ISO9001-2008 & CE |
