Model NO.
AL
Service Life
3-6 Years
Size
Small
Color
Red
Condition
New
Name
Walking Tractor
Engine Pulley Diameter
5.5inch
Rubber Wheel Size
7.50-16
Cage Wheel Diameter
800mm
Clutch Type
Dry Multiple Disc Clutch
Weight
360kg
Power
12.5HP, 14HP, 15.5HP
Function
Farming
Transport Package
Carton
Specification
2960*1200*1220mm
Trademark
no
Origin
China
HS Code
67000
Production Capacity
65000
Type:
Walking Tractor
Usage:
Farm Tractor, Garden Tractor, Lawn Tractor
Certification:
ISO
Drive Wheel:
2WD
Emission Standard:
Euro II
Fuel:
Gas / Diesel

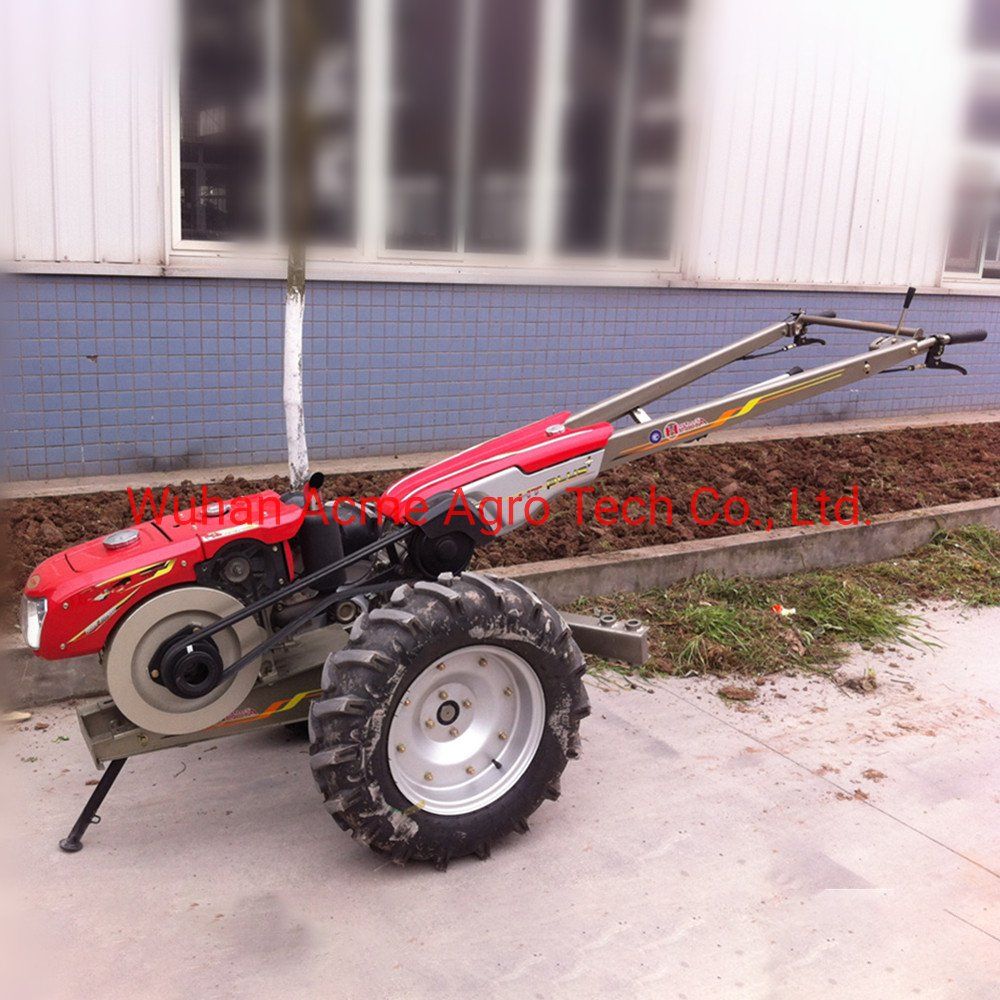

High efficiency best price 14hp diesel walking tractor
Advantages:
• High work efficiency.
• Easy for operation,easy to control.
• good quality
• Small volume, light weight,compact structure and perfect cultivate performance
• Powered by water-cooling diesel engine. Low fuel consumption for higher power.
• Multifunctional,it can be matched with kinds of accessories/implements.
Technical Parameter:
• High work efficiency.
• Easy for operation,easy to control.
• good quality
• Small volume, light weight,compact structure and perfect cultivate performance
• Powered by water-cooling diesel engine. Low fuel consumption for higher power.
• Multifunctional,it can be matched with kinds of accessories/implements.
Technical Parameter:
| Name | Walking tractor/power tiller |
| Dimension of Tractor: | Length: 2960mm Width(adjustable): 1050/1200mm Height: 1220mm |
| Engine pulley diameter(standard) : | 140mm(5.5'') |
| Transmission pulley diameter(standard): | 180mm(7'') |
| Rubber wheel size: | 7.50-16 |
| Cage wheel diameter: | 800mm |
| Towing pin diameter: | 26mm |
| V-belt: | Length: 1880mm(74'') Qty.:2pcs |
| Brake system | Small-scale braking |
| Clutch type: | Dry multiple disc clutch |
| Lubricating Oil: | SAE90 |
| Lubricating Oil Capacity: | 5.5-6L |
| Tractor max. speed: | 23.5km/h |
| Transmission ratio: | Low speed 1st Gear: 44:1 Mid speed 2nd Gear: 23:1 High speed 3rd Gear: 8:1 Reverse Gear: 56:1 |
| Tractor Weight(with engine) | 360kgs |
| Diesel engine power | 12.5hp, 14hp, 15.5Hp |
