Model NO.
THG2204
Emission Standard
Euro II
Fuel
Gas / Diesel
Service Life
6-10 Years
Size
Large
Color
Blue
Condition
New
Tyre
18.4-26/20.8-38
Steering
Hydraulic Steering
Transmission
16f+16r
Clutch
Dual Stage
Pto Speed
760/850
Overall Size
5600*2300*3100mm
Structure Mass
7300kgs
Wheel Base
2900mm
Suspension
Rear Suspension Category III
Wheel Drive
4 Wheels
Hydraulic Outlet Valves
Three Groups
Two Cylinder Lifter
Force Rising and Down
Pto Shaft
Rectangle D38 8 Teeth
Front Wheel Tread
1980 Adjustable
Rear Wheel Tread
1800 Step Less Adjustable
Transport Package
No Package
Specification
220hp
Trademark
Taihong
Origin
China
HS Code
8701100000
Production Capacity
500PCS
After-sales Service:
7*24 Hour Service
Warranty:
Main Parts Two Year Warranty
Type:
Wheel Tractor
Usage:
Farm Tractor, Garden Tractor, Lawn Tractor, Agricultural Tractor
Certification:
ISO, CE, CCC
Drive Wheel:
4WD

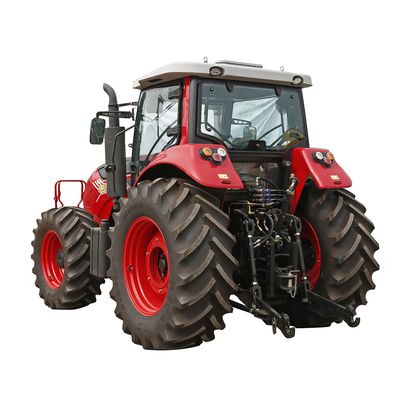

farming machine taihong Agricultural Tractor 220HP 4wd with ce
| Model | THG2204 farm tractor | ||
| Type | 4*4 wheel type | ||
| Overall dimensios(mm) | Length | 5600 | |
| Width | 2480 | ||
| Heigth | 3000 | ||
| Wheel tread | Front wheel | 1980 | |
| Rear wheel | 1800(stepless adjustable ) | ||
| Axle base | 2900 | ||
| Min Ground clearance | 425 | ||
| Sturcturer weight(kg) | 7600 | ||
| Engine | Model | WP6G220E330 | |
| Type | Inline, water cooled, four stroke, electric start | ||
| Rated power kw | 220HP | ||
| Rated speed (r/min) | 2200 | ||
| Fuel type | Diesel | ||
| Tire | Front wheel | 16.9-28 | |
| Rear wheel | 18.4-42 | ||
| Clutch | 14''Dual stage clutch | ||
| Steering | Cycloid rotary valve, full hydraulic steering | ||
| Transimission | 16 F+16R | ||

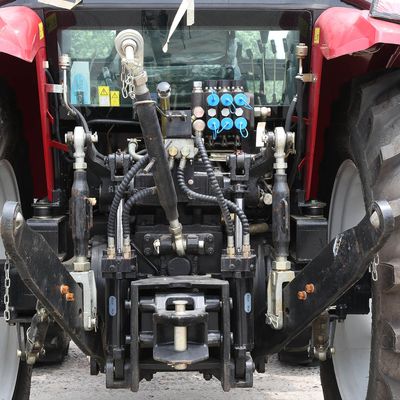

| Supension type | Rear postioned 3-point links catageory III | ||
| PTO | Type and speed | 760/850 | |
| Spline size | Ø38 rectangle spline | ||
3. Quality control on Spares and finished to keep quality and performance consistent.
4.Quality system certificate and Ce certificate
5.Workshops and assemblying line for tractors
6. The farm implements: Disc plough, disc harrow, cultivator, potato harvestor, mower, front end loader and backhoe, snowbrush, hay baler, planter ;sprayer ,potato planter ,trailer , etc.
7. Package and delivery: Metal package or nude package
8. Service and Warranty: For main parts, warrnty period is one year from the BL date. During the warranty, if the problem is occuring, please send us problem desctriptions and photos for technical analysis, we will be acting immediately and give solution within 24 hours. From technical analysis, if the problem is because of make, craftsmanship and the manufacturing reason; The relative charges will be borne by seller; If the problem is caused by improper operation, the buyer will take the responsibility and bear the relative charges and seller will try his best provide and other possible support and assistance to solve the problem.
4.Quality system certificate and Ce certificate
5.Workshops and assemblying line for tractors
6. The farm implements: Disc plough, disc harrow, cultivator, potato harvestor, mower, front end loader and backhoe, snowbrush, hay baler, planter ;sprayer ,potato planter ,trailer , etc.
7. Package and delivery: Metal package or nude package
8. Service and Warranty: For main parts, warrnty period is one year from the BL date. During the warranty, if the problem is occuring, please send us problem desctriptions and photos for technical analysis, we will be acting immediately and give solution within 24 hours. From technical analysis, if the problem is because of make, craftsmanship and the manufacturing reason; The relative charges will be borne by seller; If the problem is caused by improper operation, the buyer will take the responsibility and bear the relative charges and seller will try his best provide and other possible support and assistance to solve the problem.
