Model NO.
TH504
Emission Standard
Euro II
Fuel
Gas / Diesel
Service Life
6-10 Years
Size
Small
Color
Red
Condition
New
Tyre
6.0-16; 9.5-24
Steering
Hydraulic Steering
Transmission
8f+2r
Clutch
Single Stage
Pto Speed
540/720/1000
Overall Size
3600*1500*2110mm
Structure Mass
1425kgs
Wheel Base
2030 mm
Suspension
Rear Suspension Category I
Wheel Drive
4WD Wheels
Certificate
Ce, ISO
Engine Power
36.8kw ; 50HP
Engine Displacement
2.836L
Engine Cylinder No.
4 Cylinders
Function
Haulage, Transporting, Ploughing, Tillage
Transport Package
Metal Frame or Complete Unit
Specification
50hp
Trademark
Taihong
Origin
China
HS Code
8701931000
Production Capacity
1000 PCS
After-sales Service:
Technical Support, English Operation Manual
Warranty:
One Year
Type:
Wheel Tractor
Usage:
Farm Tractor, Garden Tractor, Lawn Tractor
Certification:
ISO, CE, CCC
Drive Wheel:
4WD

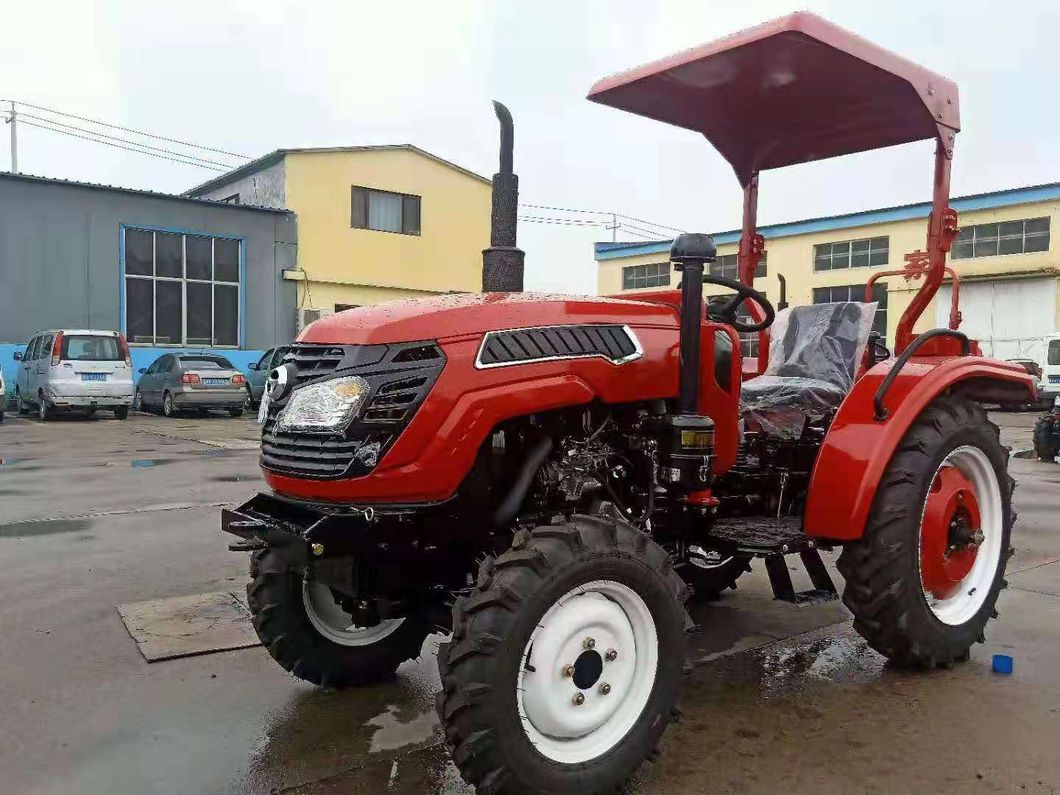

Agricultural equipment 4wdcompact mini tractor 50hp tractor price
1. Basic Technical Data
2. Characteristics
Strong Power: This tractor is in the top rank among the same industry in China. has the characteristics of high transmission efficiency, compact, small turning radius, low noise, big traction, flexible steering, easy start performance, low ground clearance, big traction.
1. Basic Technical Data
| 50hp Tractor Technical Data | |||
| Model | TH504 | ||
| Tractor power | 50hp | ||
| Type | 4X4 wheel drive | ||
| Overall dimension | Length (mm) | 3558 | |
| Width (mm) | 1500 | ||
| Height(mm) | 2245 | ||
| Tread | Front tyre | 1040, 1140, 1240 | |
| rear type | 960-1300 | ||
| wheel base (mm) | 1820 | ||
| Min ground clearance(mm) | 325 | ||
| Min service weight (kg) | 1425 | ||
| Engine | Model/make | Laidong | |
| Type | inline, water cooled, four stroke | ||
| Rated power | 36.8KW | ||
| Fuel | diesel | ||
| Tyre | Front tyre | 6.00-16 | |
| rear tyre | 9.50-24 | ||
| clutch | dry type,single disc, single stage, | ||
| steering | hydraulic steering | ||
| transmission | 2 x(4+1) | ||
| Suspension type | Rear positioned suspension three point linkage category 1 | ||
| PTO | speed | 720 | |
| Size | Φ35 | ||
2. Characteristics
Strong Power: This tractor is in the top rank among the same industry in China. has the characteristics of high transmission efficiency, compact, small turning radius, low noise, big traction, flexible steering, easy start performance, low ground clearance, big traction.
3. Quality control on Spares and finished to keep quality and performance consistent.
4. About us
Weifang Taihong Tractor Co.,Ltd established in 1990, with coverage of 206677 square meters, is one of the most professional tractor manufacturer in China. With 20 years development, Taihong is capable of producing tractor from 25hp to 260hp and has a large market share at home and abroad. Taihong has its own foundry, casting, machinery processing center. Some parts are made by itself to realize the whole quality control from spare parts.
The products are certified by ISO9001, SGS, CCC and BV.
5. Assembly lines and suffiecient stock
6. Our Products list and Certificates
7. The farm implements: Disc plough, disc harrow, cultivator, potato harvestor, mower, front end loader and pbackhoe, snowbrush, hay baler, planter etc.
8. Package: metal frame package or nude package
9. Service and Warranty: For main parts,warrnty period is one year from the BL date. During the warranty, if the problem is occuring, please send us problem desctriptions and photos for technical analysis, we will be acting immediately and give solution within 24 hours. From technical analysis,if the problem is because of make, craftsmanship and the manufacturing reason; the relative charges will be borne by seller; if the problem is caused by improper operation, the buyer will take the responsibility and bear the relative charges and seller will try his best provide and other possible support and assistance to solve the problem.
