Model NO.
HOWO Truck Mounted Generator
Intergrant Emergency Power
Power Supply System
Generator Power
10kw, 20kw, 30kw, 50kw, 100kw, 150kw
Generator Engine
Weichai, Perkens, Cummin, Vovo etc.
Fuel Tank
6 -8 Hours Running
Quick Cable Connector
4-8 Sets
Cable
50m-500m
Lighting Equipment
1 Set
Carriage
Fire Prevention, Flame Retardant, Rain, Dustproof
Operation Room
Operating and Maintaining Gen-Set
Hydraulic Support Leg
2-4 Sets
Fire Extinguisher
4sets 8kg/ ABC Dry Powder Fire Extinguisher
Grounding Pile/ Ground
1sets
Extraction System
Keep Air Clean and Fresh While Operating
Exhaust Silencer
1 Set
Cable Winch
1 Set
Transport Package
Naked with Wax
Specification
7200X2380X3600mm
Trademark
DRZ
Origin
China
HS Code
8705909990
Production Capacity
2500 Units Per Year
After-sales Service:
24
Warranty:
24
Fuel:
Diesel
Certification:
ISO9000, CCC
Emission Standard:
E3-6
Condition:
New

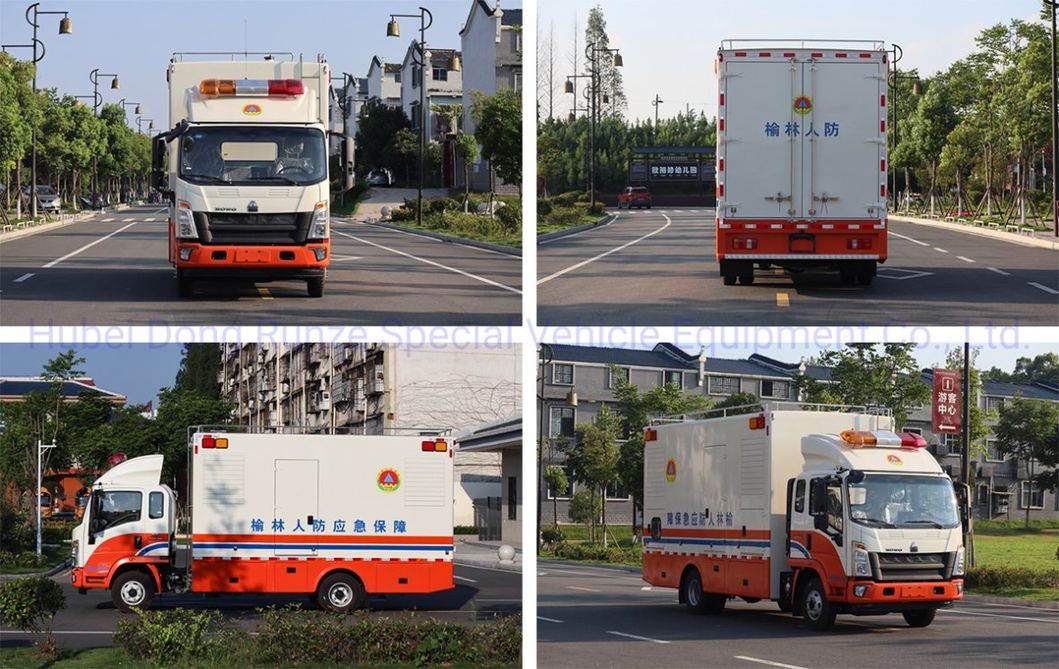

Customizing Sinotruck HOWO Truck Mounted Generator 50-120KW Electric Power Supply
with Emergency Generator Power Supply 8 Hours Vehicle Model: 5080xdyz6
According to the user's requirements for the capacity and performance of the diesel generator set, choose a chassis car with beautiful appearance and excellent performance, and install the diesel generator set with high reliability, stability and excellent usability in the standard compartment to transform it into a high sound absorption effect and suitable for diesel The silent compartment where the generator set is running is combined into a perfect mobile on-board power station. Its low noise, convenient movement, fast speed, and reliable performance provide users with the possibility to realize long-distance emergency power supply, and meet customer requirements to the greatest extent!
Datas for 80kw-200kw Diesel Emergency Power Supply Vehicle 6.8L Panda Generator
380kv 120kw 6X6 Power Supply Vehicle for Emergency Communication
Sino Truck Howo Power Supply Vehicle 30KW-300KW,japan brand truck cummins 30KW-3500KW power supply truckDetailed Photos for 80kw-200kw Diesel Emergency Power Supply Vehicle 6.8L Panda Generator
380kv 120kw 6X6 Power Supply Vehicle for Emergency Communication
1. Vehicle description for 80kw-200kw Diesel Emergency Power Supply Vehicle 6.8L Panda Generator 380kv 120kw 6X6 Power Supply Vehicle for Emergency Communication
DRZ AUTO 120kw power supply vehicle uses the I.suzu brand ( QL10 70BUH AY ) chassis equipped with 380KV/70KW generator set,Mute system, noise reduction system, power output control system, automatic cable retracting system, etc.
When public emergencies such as natural disasters , accidents, disasters , and social security incidents occur, it can quickly go to the first scene, establish a logistics support system, provide adequate power support, and effectively improve emergency response capabilities and save people's lives and property.
2. Diesel generator set
The 120KW diesel generator set uses Chongqing Dapu Power diesel generator set. It has fast and reliable cold start performance, adopts advanced technology to optimize the combustion process, reduces the cost of continuous load operation, and optimizes the design of shock absorbs, precisely matched superchargers and low-speed cooling fans to reduce the noise of the unit during operation.
DRZ Emergency Power Supply Vehicle is an integration of various emergency diesel generators. It can work in harsh environment and is mainly applied to emergency power generation, equipment overhaul, conference support and field operations.
2. Strength
1. Its vanbody is treated against noise and heat, and resistant to water, vibration and noise.
2. It has auxiliary fuel tanks, all kinds of cable reels, lights and other devices
3. Spec.for 80kw-200kw Diesel Emergency Power Supply Vehicle 6.8L Panda Generator 380kv 120kw 6X6 Power Supply Vehicle for Emergency Communication
2 .Can I have samples of this type of product to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.
3. What's the delivery time and can you lower the price?
It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.
7.What's the payment terms?TT 30% as deposit, balance before shipment by TT or at sight.
8. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
9.How can you ensure the quality of the products?
with Emergency Generator Power Supply 8 Hours
Vehicle Model: 5080xdyz6
Chassis Model: ZZ1087G3815F183
Overall Dimension: 7160 * 2370 * 3500*3600 (Mm)
Total Mass: 8280, Kerb Mass: 8150/8085kgs
Yunnei d30tcif1 Engine, 2977 Displacement, 125kw/170 Hp.
3800mm Wheelbase, Diesel
6 Wheeler Generator Electric/Power Supply Truck Emergency Power Supply Truck with engine, alternator and genset.
| Chassis Parameters | |
| Chassis Brand | Sinotruck |
| Chassis model | ZZ1087D3814D183 |
| Fuel Type | Diesel |
| Tire Specification | 7.50R16LT,8.25R16LT, 8R17.5,9R17.5 14PR |
| Wheelbase | 3800mm |
| Leaf Spring No. | 3/5+3,8/9+6,11/9+7,11/11+7,9/12+9 |
| Front trend | 1600,1800mm |
| Rear trend | 1535,1595mm |
| Cab seat no. | 3 |
| Axle loading | 2870/5410 |
HOWO Light Truck(4x2 Rigid)
Rated Payload 5T CY4102 YN4102
| Dimensions (mm) | ||||
| Vehicle Model | ZZ1087D3814C180 | ZZ1077D3815C171 | ||
| Cab width | 1880 | 2080 | ||
| L1 Wheelbase | 3800 | 3800 | ||
| L2Front overhang | 1160 | 1160 | ||
| L4Rear overhang | 1850 | 1850 | ||
| L6 Centre line of front axle to back of cab | - without sleeper | 481 | 481 | |
| - with sleeper | 781 | 781 | ||
| B1 Frontwheel track | 1605 | 1805 | ||
| B3 Rear wheel track | 1540 | 1540 | ||
| L Chassis length | 6810 | 6810 | ||
| B2 Chassis width | 2104 | 2180 | ||
| H1 Chassis height without air spoiler | 2350 | 2350 | ||
| Overall length with cargo box | 6995 | 6995 | ||
| Overall width with cargo box | 2150 | 2180 | ||
| Overall height with cargo box | 2450 | 2450 | ||
| H2Frame height | - laden | 842 | 896 | |
| - unladen | 939 | 993 | ||
| L5Recommended inside boxsize | length | - without sleeper | 5150 | 5150 |
| - with sleeper | 4850 | 4850 | ||
| width | 2050 | 2050 | ||
| height | 550 | 550 | ||
| Weights (kg) | ||
| Gross vehicle weight (GVW) | 7995 | 8495 |
| Complete vehicle kerbweight | 2830 | 3405 |
| Chassis kerbweight | 2630 | 3205 |
| Performance | ||
| Maximum speed (km/h) | 106 | 113 |
| Maximum gradeability (%) | 35 | 35 |
| Minimum turning diameter (mm) | 15.5 | 15.5 |
| Minimum ground clearance (mm) | 210 | 210 |
| Fuel consumption (L/100km) | 13~17 | |
| Engine- Euro2-3 | ||||||
| Parameters | Features | |||||
| Model CY4102BZLQ, 4-cylinder in-line, 3.856litre, diesel Rated power:120PS@2800rpm; Maximum torque:343 Nm@1600~1800 rpm YN4102QBZL, 4-cylinder in-line, 3.760litre, diesel Rated power: 115PS@3000rpm; Maximum torque:330 Nm@1600~2000 rpm | Turbo-charging and Intercooling Electric controlflameout Electric heating for intake air Options: Air dryer Exhaustbrake | |||||
| Clutch | Axles | Braking System | ||||
| Φ300 diaphragm spring clutch, single plate | Front1061, forging I-beam Drum brake | TypeAir brake system | ||||
| Service brakeDual-circuit air brake | ||||||
| Gearbox | Rear 1080, pressed welding axle housing Drum brake Ratio: 5.286 | Parking brake Spring energy brake | ||||
| Auxiliary brakeExhaust brake(Option) | ||||||
| WLY6T46 6-speed manual control gearbox Ratio: 1-6.3142-3.931 3-2.2624-1.393 5-1.00 6-0.788 R1-5.874 Maximum input torque: 450Nm Rated rotation speed: 2800rpm Centre distance: 115mm Main Box : Single counter shaft all synchromesh | ||||||
| Suspension | Wheels &Tyres | |||||
| FrontSemi-elliptical leaf springs with shock absorbers | 1880 | Tyres All steel 7.50R16LT | ||||
| Wheels 6.00-16 | ||||||
| 2080 | Tyres 8.25R16 | |||||
| RearSemi-elliptical leaf springs with shock absorbers | Wheels 6.50-16 | |||||
| Frame | ||||||
| Material High tensile steel | ||||||
| Fuel Tank | Section 215 x 70 x 6mm | |||||
| Frame width Front 770 / rear 800 for 1880 | ||||||
| Front 800 / rear 800 for 2080 | ||||||
| Steering System | General Equipment | |||||
| Power steering | Capacity 80 Liter | Fuel filter with water separator | ||||
| Adjustable steering wheel | Type Aluminum,lockable | Sun visor | ||||
| Exhaust System | Option 120 Liter | Roof flap | ||||
| Electrical System | Reversebuzzle | |||||
| Battery main switch | ||||||
| Heating & ventilation system | ||||||
| Cylindrical muffler | Voltage 24 V | Radio+MP3 | ||||
| Batteries2 x 12V,80Ah | Options: | |||||
| Alternator 28V/35A | Electric power windows | |||||
| Starter 4.5KW | Air conditioner | |||||
| Options: | Anti-lock braking system(ABS) | |||||
| 100Ah batteries | Metallic paint (except white) | |||||
Cab dimensions(mm)
| Cab type | A | B | C | F | | H | I | M | ||||||
| 1880 single sleeper | 1438 | 1096 | 275 | 870 | 1880 | 1933 | 360 | |||||||
| 1880 without sleeper | 1438 | 1096 | 275 | 1880 | 1653 | |||||||||
| 2080 single sleeper | 1438 | 1096 | 275 | 870 | 2080 | 1933 | 360 | |||||||
| 2080 without sleeper | 1438 | 1096 | 275 | 2080 | 1653 |
Notice: The manufacturer reserve the right to modify the design and equipments without prior notice !
11 -12Ton HOWO Chassis
The power supply vehicle is mainly composed of a chassis vehicle, a diesel engine group, a control system, a silent car body, a hydraulic support system, a cable retractable system, air intake and exhaust, a noise reduction system, and an exhaust system.11 -12Ton HOWO Chassis
| Dimensions (mm) | |||||
| Vehicle Model | ZZ1107G381CD1 | ZZ1107G421CD1 | ZZ1107G451CD1 | ||
| Cab width | 2080 | 2080 | 2080 | ||
| L1 Wheelbase | 3800 | 4200 | 4500 | ||
| L2Front overhang | 1160 | 1160 | 1160 | ||
| L4Rear overhang | 1850 | 1980 | 2155 | ||
| L6 Centre line of front axle to back of cab | - without sleeper | 481 | ---- | ---- | |
| - with sleeper | 781 | 781 | 781 | ||
| B1 Frontwheel track | 1805 | 1805/1845 | 1805/1845 | ||
| B3 Rear wheel track | 1595 | 1610/1545 | 1610/1545 | ||
| B4 Width across rear tyres | 2010 | 2010 | 2010 | ||
| L Chassis length | 6810 | 7340 | 7815 | ||
| B2 Chassis width | 2180 | 2180 | 2180 | ||
| H1Chassis height without air spoiler | 2350 | 2350 | 2350 | ||
| Overall length with cargo box | 6995 | 7445 | 7995 | ||
| Overall width with cargo box | 2350 | 2350/2498 | 2350/2498 | ||
| Overall height with cargo box | 2450 | 2450/2650/2850 | 2450/2650/2850 | ||
| H2Frame height | - laden | 896 | 896 | 896 | |
| - unladen | 993 | 993 | 993 | ||
| L5Recommendedinside box sizes | length | - without sleeper | 5150 | ---- | ---- |
| - with sleeper | 4850 | 5200 | 5750 | ||
| width | 2150 | 2150/2300 | 2150/2300 | ||
| height | 550 | 550/600 | 550/600 | ||
| Weights (kg) | |||
| Gross vehicle weight (GVW) | 9990 | 9990 | 11200 |
| Complete vehicle kerbweight | 4895 | 4995 | 5095 |
| Chassis kerbweight | 4225 | 4265 | 4295 |
Performance
| Maximum speed (km/h) | 107 | 107 | 107 |
| Maximum gradeability (%) | 35 | 35 | 35 |
| Minimum turning diameter (mm) | 15.5 | 16.8 | 18.5 |
| Minimum ground clearance (mm) | 210 | 210 | 210 |
| Fuel consumption (L/100km) | 18~23 | ||
| Engine- Euro 3-4 | ||||||
| Parameters | Features | |||||
| Model ISF3.8s4154T / ISF3.8s3154Tfor 2080 cab 3800wheelbase, 4-cylinder in-line, 3.76litre, diesel Rated power: 154PS@2600rpm, Maximum torque: 500Nm@1200~1900rpm ISF3.8s4168T / ISF3.8s3168Tfor 2080 cab other wheelbase, 4-cylinder in-line, 3.76litre, diesel Rated power: 168PS@2600rpm, Maximum torque: 600Nm@1300~1700rpm | Turbo-charging and Intercooling Electriccontrolflameout Electric heating for intake air Options: Selective Catalytic Reduction(SCR)for Euro3-5 | |||||
| Gearboxand Clutch | Axles | Braking System | ||||
| WLY6G120 for 154 or 168 Ps 6-speed manual controlgearbox Ratio: 1-6.7182-3.6783-2.153 4-1.406 5-1.00 6-0.786 R1-6.029 Maximum input torque: 700Nm Rated rotation speed: 2600rpm | Front1061, enhance forging I-beam Drum brake | TypeAir brake system | ||||
| Service brakeDual-circuit air brake | ||||||
| Rear1080, pressed welding axle housing Drum brake Ratio: 4.875 | Parking brake Spring energy brake | |||||
| Auxiliary brakeExhaustbrake(Option) | ||||||
| Wheels &Tyres | ||||||
| 3 3Option | FrontVPD028QB, forging I-beam axle Disk brake | |||||
| Tyres 8.25R16LT | ||||||
| RearMCY05, pressed welding axle housing, drum brake Ratio: 5.286 | Wheels 6.50-16 | |||||
| Clutch Φ380 diaphragm spring clutch, single plate | Frame | |||||
| Suspension | ||||||
| Options: | ||||||
| Z F6S500 for 154PS 6-speed aluminum manual control gearboxRatio: 1-6.202-3.293-2.034-1.37 5-1.00 6-0.78R1-5.68 Maximum input torque: 500Nm Rated rotation speed: 2600rpm | Front Semi-elliptical leaf springs with shock absorbers | Material High tensile steel | ||||
| Section 215x 70 x 6 mm | ||||||
| Rear Semi-elliptical leaf springs with shock absorbers | Frame width Front 800 mm / rear 800mm | |||||
| General Equipment | ||||||
| Fuel Tank | ||||||
| Capacity 120 Liter | Fuel filter with water separator | |||||
| WLY6T53 for 154PS 6-speed manual control gearboxRatio: 1-8.802-5.573-3.294-2.11 5-1.54 6-1.00R1-8.18 Maximum input torque: 480Nm | TypeAluminum,lockable | 25Liters AdBluetank for Euro 3-54 | ||||
| Electrical System | Sun visor | |||||
| Roof flap | ||||||
| Reversebuzzle | ||||||
| Voltage 24 V | Battery main switch | |||||
| Batteries2x12V, 120 Ah | Heating & ventilation system | |||||
| Clutch Φ350 diaphragm spring clutch, single plate for Z F and WLY6T53 | Alternator Power 24V/70A | Air conditioner | ||||
| Starter Power 3.6KW | Air dryer | |||||
| Steering System | Radio+MP3 | |||||
| Exhaust System | Options: | |||||
| Cylindrical muffler | Power steering | Electric power windows | ||||
| Selective Catalytic Reduction for Euro (SCR) | Adjustable steering wheel | Anti-lock braking system(ABS) | ||||
| Metallic paint (except white) | ||||||
HOWOLight Truck(4x2 Rigid)
Cab option
Cab dimensions(mm)
| Cab type | A | B | C | F | | H | I | M | ||||||
| Single sleeper | 1438 | 1096 | 275 | 870 | 2080 | 1933 | 360 | |||||||
| Without sleeper | 1438 | 1096 | 275 | 2080 | 1653 |
According to the user's requirements for the capacity and performance of the diesel generator set, choose a chassis car with beautiful appearance and excellent performance, and install the diesel generator set with high reliability, stability and excellent usability in the standard compartment to transform it into a high sound absorption effect and suitable for diesel The silent compartment where the generator set is running is combined into a perfect mobile on-board power station. Its low noise, convenient movement, fast speed, and reliable performance provide users with the possibility to realize long-distance emergency power supply, and meet customer requirements to the greatest extent!
Datas for 80kw-200kw Diesel Emergency Power Supply Vehicle 6.8L Panda Generator
380kv 120kw 6X6 Power Supply Vehicle for Emergency Communication
Sino Truck Howo Power Supply Vehicle 30KW-300KW,japan brand truck cummins 30KW-3500KW power supply truckDetailed Photos for 80kw-200kw Diesel Emergency Power Supply Vehicle 6.8L Panda Generator
380kv 120kw 6X6 Power Supply Vehicle for Emergency Communication
1. Vehicle description for 80kw-200kw Diesel Emergency Power Supply Vehicle 6.8L Panda Generator 380kv 120kw 6X6 Power Supply Vehicle for Emergency CommunicationDRZ AUTO 120kw power supply vehicle uses the I.suzu brand ( QL10 70BUH AY ) chassis equipped with 380KV/70KW generator set,Mute system, noise reduction system, power output control system, automatic cable retracting system, etc.
When public emergencies such as natural disasters , accidents, disasters , and social security incidents occur, it can quickly go to the first scene, establish a logistics support system, provide adequate power support, and effectively improve emergency response capabilities and save people's lives and property.
2. Diesel generator set
The 120KW diesel generator set uses Chongqing Dapu Power diesel generator set. It has fast and reliable cold start performance, adopts advanced technology to optimize the combustion process, reduces the cost of continuous load operation, and optimizes the design of shock absorbs, precisely matched superchargers and low-speed cooling fans to reduce the noise of the unit during operation.
DRZ Emergency Power Supply Vehicle is an integration of various emergency diesel generators. It can work in harsh environment and is mainly applied to emergency power generation, equipment overhaul, conference support and field operations.
2. Strength
1. Its vanbody is treated against noise and heat, and resistant to water, vibration and noise.
2. It has auxiliary fuel tanks, all kinds of cable reels, lights and other devices
3. Spec.for 80kw-200kw Diesel Emergency Power Supply Vehicle 6.8L Panda Generator 380kv 120kw 6X6 Power Supply Vehicle for Emergency Communication
1.Are you trading company or manufacturer ?
We are Group Corporation manufacturer ,have Group Factories Contractor.2 .Can I have samples of this type of product to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.
3. What's the delivery time and can you lower the price?
It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.
4.Can you supply some quick-wear parts?
Yes, we can supply the parts as your request,such as traction,traction pin,balance beam and plate spring,hanging accessories,turntable,all kinds of brake pads,brake pan, bearings,etc.6.Do you have any used products for sale?
We have products in stock for choices,the prices are favorable,we'll show you our stock products if you need. 7.What's the payment terms?
8. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
9.How can you ensure the quality of the products?
Don't worry,dear.We have joined the trade assurance,if the products have quality problems when you received them,the payments can be refund to you.
Send Message
