Model NO.
CLW50657BGP
LED Tube Core Type
SMD
Self-powered
Self-powered
LED Screen Type
P3,P4,P5,P6
Power Supply Mode
Own Generator-powered
Chassis Brand
Dongfeng, Isuzu, HOWO, Foton, etc.
Drive Model
4X2, 6 Wheels
Wheelbase
2800mm,3300mm,3360mm,3800mm,4500mm,4700mm,etc.
LED Board Type
One-Side Screen, Two-Sides Screen, Three-Sides SCR
Screen Size
4m2-12m2, as Per Chassis Size
Pixel Pitch
4mm, 5mm, 6mm; P4 P5 P6
Picture Tube Chip Color
Full Color and Monochrome
Control Mode
VGA Synchronous
Color
White; Blue; Green; Yellow; Customized
Warranty
1 Year
Transport Package
with Foam Cover on LED Screen
Specification
5995*2100*3000 mm
Trademark
CLW
Origin
Suizhou, China
HS Code
8705909090
Production Capacity
500 Unit/Month
Type:
LED Advertising Truck
Application:
Outdoor Activity
Displacement:
3.5L
Intergrant:
Operating System
Passenger Number:
2
Fuel Type:
Diesel Oil

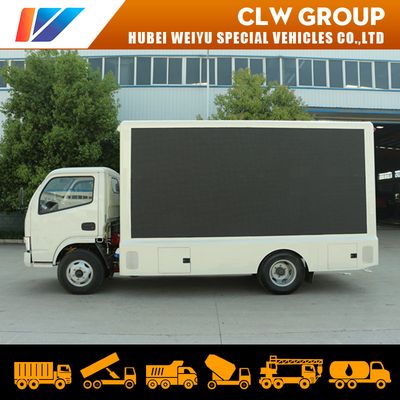

Dongfeng 4X2 P3/P4/P5/P6 LED Adevertising Truck Mobile Display Trucks
Reference Photos
Optional Function
Various kinds of Advertising Trucks
Company Introduction
Certificates
Our Overseas Exhibition
Contact Flora for more details: +86-13971508969 (Mobile)
Product Description
1. Purpose: For mobile advertising, products promotion, branding, draft activities, concerts, and sport events, etc.
2. Main parts: LED screen, Generator set, Computer, Control system etc.
Product Specification
| Chassis Specification | |||
| Item No. | Parameters | ||
| Drive model | 4x2, 6 Wheels | ||
| Overall Dimension | 5995×2100×3000(mm) | ||
| Chassis Brand | Dongfeng | ||
| Cabin | Single, Left Hand Driving, with ABS | ||
| Engine | Model | Chaochai100HP, 4 Cylinders | |
| Power | 74KW/100HP | ||
| Emission standard | EURO 3 | ||
| Displacement | 3500(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | 5 Forward & 1 Reverse Gear | ||
| Brake System | Air/Oil Break | ||
| Steering Gear | Power Assistant | ||
| Wheel Base | 3300(mm) | ||
| Front/Rear Axle Loading | 1500/3000(Kg) | ||
| Approach/Departure Angle | 24/16(°) | ||
| Tire | 7.00R16 | ||
| Max Driving Speed | 100(km/h) | ||
| Upper Structure | |||
| LED Screen | Right LED Screen | 3840mm(L)×1728mm(H)=6.63m2 P6 full-color Screen | |
| Left LED Screen | 3840mm(L)×1728mm(H)=6.63m2 P6 full-color Screen | ||
| Rear LED Screen | 1280mm(L)×1440mm(H)=1.84m2 P6 full-color Screen | ||
| P6 full-color outdoor LED display, waterproof, shake-proof, high brightness, long life | |||
| Multi-media system | 1. 1 unit computer 2. Sound system including 4 units waterproof loudspeaker 1 unit power amplifiers | ||
| Generator Set | 1. OUMA brand, Silent diesel generator 2. 220V domestic power supply | ||
| Security system | Overheat protection | ||
| Remarks | 1. Circulating ventilation and cooling systems 2. Aluminum patterned floor 3. Internal and external electrical distribution box | ||
| Optional Items | 1. Mobile stage | ||
| 2. Scrolling light box | |||
