I. Details of 240HP 2000 gallons 8000l 8ton 8000 litres fire alarm truck for mine fire fighting
II. Technical data of 240HP 2000 gallons 8000l 8ton 8000 litres fire alarm truck for mine fire fighting
| TECHNICAL SPECIFICATION | ||||||
| Main specification | Chassis brand | 2020 new | ||||
| Chassis model | QL1180XMFRY | |||||
| Overall dimension(L*W*H) | 8500x2500x3500mm | |||||
| Water tank volume | 5,000 LITRES | |||||
| Foam tank volume | 2000 litres | |||||
| Cabin | double cabin,with Air conditioner, electronic windows, USB, | |||||
| Chassis | Drive modle | 4x2 left hand drive | ||||
| Front axle loading | 6,300 kg | |||||
| Rear axle loading | 13,000 kg loading capacity | |||||
| Wheel Base | 4500mm or 4700mm | |||||
| Front/rear suspension | 1335/2265mm | |||||
| Approach/departure angle | 16/12 (°) | |||||
| Tyre size & number | 295/80R22.5, 6 pieces tires ,with one spare tyre | |||||
| Transmission | I-SUZU MLD brand, manual, 6 gears with 1 reverse | |||||
| Voltage | Have 2 batteries , each 12 volts | |||||
| Color | Red and white including tanker , standard . | |||||
| Brake | AIR brake, With ABS | |||||
| Max speed | 95km/h | |||||
| Engine | Brand | I-SUZU | ||||
| Model | 6HK1-TCL | |||||
| Engine Type | Six-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling | |||||
| Horse power | 240hp | |||||
| Displacement | 7790ml | |||||
| Emission | Euro 5 | |||||
| TANK SPECIFICATION | ||||||
| Tank capacity | 5,000 LITRES WATER TANK WITH 2,000 LITRES FOAM TANK | |||||
| Tank material | All Tank made of carbon steel . Thickness:4mm, The foam tank inside is painted with Anticorrosion material | |||||
| Bitmap Fire pump | Model | / | CB10/40 model ,Normal pressure pump, Rear-mounted | |||
| Pressure | Mpa | ≥1.0 | ||||
| Max suction height | m | 7 | ||||
| Flux | L/S | 40 | ||||
| Rated speed | r/min | 3000 | ||||
| Time of drawing water (s) | s | ≤35 | ||||
| Input | / | one nozzle , diameter : 125mm | ||||
| Outlet | / | 2 nozzles, diameter: 80mm | ||||
| Bitmap Fir monitor | Model | / | PL32,mounted on the tank as photo,standard | |||
| Fire fighting nozzle range | Water (m) | ≥50 | ||||
| Foam (m) | ≥45 | |||||
| Flux | L/S | 32 | ||||
| Rated Working pressure | Mpa | 0.7-1.2 | ||||
| Rotation angle | (°) | 360 | ||||
| Standard configuration | Have alarm rotating light and which is mounted on top of the cabin , have ladder , have manhole | |||||
III. Fire truck details

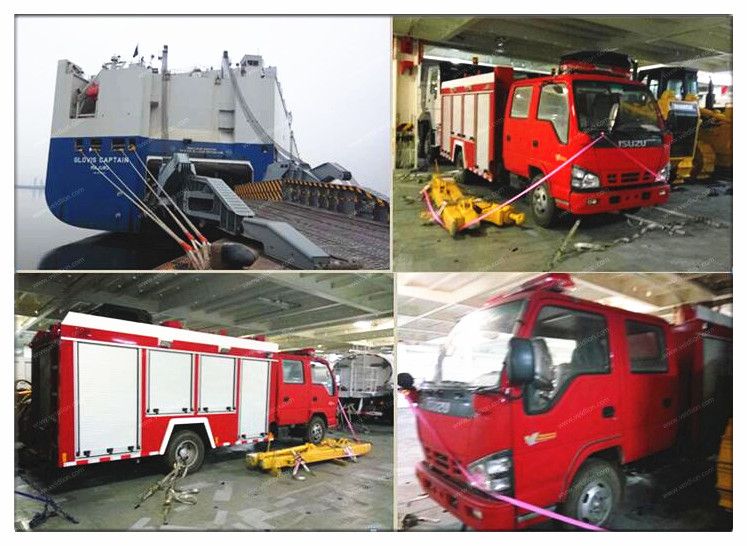

V. PRODUCT SHIPPING (RORO OR BULK SHIP)
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
VI. COMPANY INFO
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our main products:
1. LPG tank/LPG bobtatil truck/ LPG trailer
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck/Fuel dispenser truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Garbage truck/Compactor garbage truck/ hook lift garbage truck/swing arm garbage truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck/vacuum jetting truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck/Manlift ruck
11. Sweeper truck
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / aluminum trailer, etc. )
Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Cheap / competitive price, high quality, you get more than your paid
4. With CCC, ISO, BV approved
5. Can offer the OEM, ODM service.
5. The heart of the service, rational design
After-sale services:
1. One year quality warranty for key parts such as axles, engine, transmission, tracking service is lifelong.
2. Overseas service center to ensure efficiency after-sales service.
3. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.
4. Chassis:Please find the local nearest service station for repair or maintenance ,you also can contact us with 24-hour hotline or whatsapp or email.
5. Spare parts: Superstructure spare parts can be sent immediately when the problem occurrs .
Welcome to contact with us for more info. We will offer you the best truck as we can .
