I. Details of 4X2 I-SUZU 2000 Liters Water Tank With 500 Liters Foam Tank Fire Flighting Truck.
Function:
Fire fighting truck (also called fire water truck, fire fighting tanker, water tank fire truck, fire appliance, fire fighting engine, fire-extinguishing water truck, water tender, fire service truck, fire hydrant and fire water tanker) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Fire fighting truck can be divided into many types:
1. According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
2. According to chassis drive type, there are 4X2 fire fighting truck, 6X4 fire fighting truck, 8X4 fire fighting truck, and off-road type 4X4, 6X6 fire fighting truck.
3. According to chassis brand, there are I SUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, etc.
4. According to fire agent, there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.
II. Technical data of 4X2 I-SUZU 2000 Liters Water Tank With 500 Liters Foam Tank Fire Flighting Truck.
| TECHNICAL SPECIFICATION | ||
| Main specification | Chassis brand | I-SUZU |
| Chassis model | QL1040A6HWY | |
| Overall dimension(L*W*H) | 5998×2000×2860mm | |
| Water tank volume | 2,000 LITRES | |
| Foam tank volume | 500 litres | |
| Cabin | double cabin,with Air conditioner, electronic windows, USB, | |
| Chassis | Drive modle | 4x2 left hand drive |
| Axle (front/rear)loading | 2t/4t | |
| Front/rear suspension | 1015/1623mm | |
| Wheel Base | 3360mm | |
| Approach/departure angle | 24/13(°) | |
| Tyre size & number | 7.00R16 with one spare tyre | |
| Transmission | I-SUZU MSB brand, manual, 5 gears with reverse | |
| Max speed | 98km/h | |
| Brake | OIL brake, With ABS | |
| Color | Red and white including tanker , standard . | |
| Engine | Brand | I-SUZU |
| Model | 4KH1CN5LS | |
| Engine Type | six-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling | |
| Horse power | 98HP | |
| Displacement | 2999ml | |
| Emission | Euro 5 | |
| Tank Body | ||
| Water tank volume | 2000 Liters Water Tank With 500 Liters Foam Tank | |
| Tank material | All Tank made of carbon steel . | |
| Water tank thickness | 4 mm | |
| The foam tank inside material | painted with Anticorrosion material | |

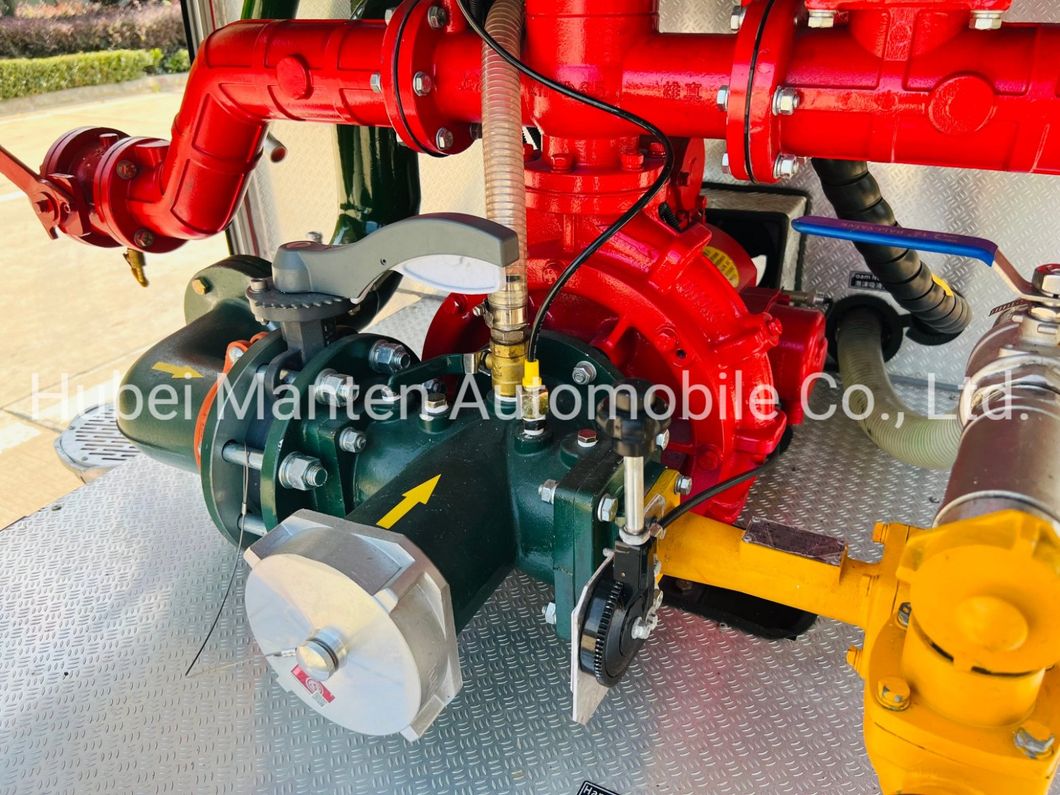

| Fire pump model | CB10/30,Normal pressure pump | |
| Fire pump pressure | ≥1.0 Mpa | |
| Fire pump max suction height | 7 m | |
| Fire pump flux | 30 (L/S) | |
| Fire pump rated speed | 3000 (r/min) | |
| Fire pump time of drawing water | ≤35 (s) | |
| Fire pump Input | one nozzle , diameter : 100mm | |
| Fire pump Outlet | 2 nozzles, diameter: 65mm | |
| Water-foam shooter Model | PL24,mounted on the tank as photo,standard | |
| Water-foam shooter nozzle range | Water (m)≥45 m,Foam (m)≥40 | |
| Max Fire Fighting Distance | >60m | |
| Water-foam shooter flux | 1440 (L/S) | |
| Water-foam shooter rated working pressure | 0.7-1.2 Mpa | |
| Water-foam shooter rotation angle | 360 (°) | |
| Standard configuration | Water pump operation panel in English, fender should be black, with alarm light, detachable ladder, body rear equipment box under the direction of the upward tilt of about 45 degrees, all interfaces of the vehicle and accessories are British, with a 30m roll of black high-pressure hose | |
1. Fire fighting truck chassis Model: JAPAN BRAND,SINOTRUK, SHACMAN, DONGFENG, FOTON, tec.
2. Engine Model: Dongfeng Cummins (260HP-375HP), Yuchai (290HP-375HP), weichai(270HP-380HP).
3. Drive model: 4x2 , 6x4 , 8x4;
4. Engine: EuroII,III,IV,V Emission standard;
5. Right/Left hand drive ;
6. Fire fighting truck type: water tank, water and foam tank,water,foam and powder.

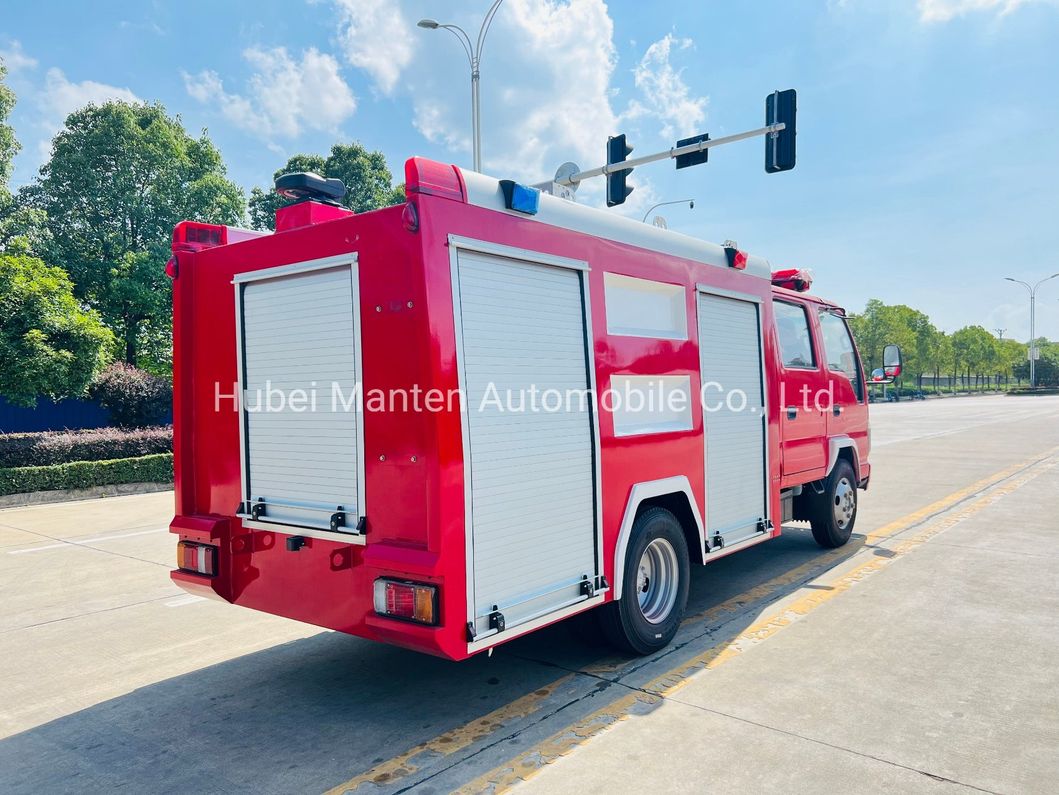

III. Fire truck details

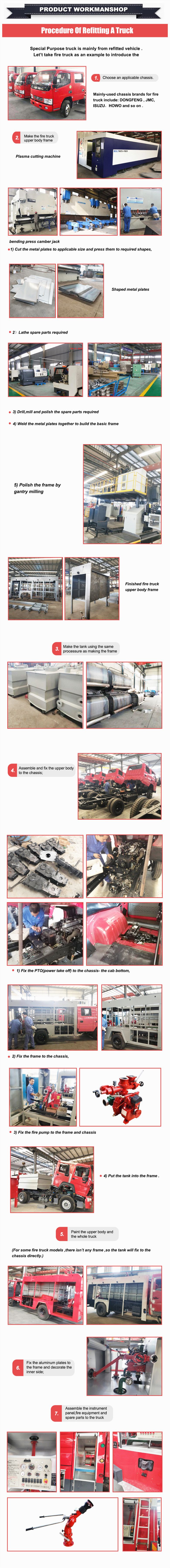

IV. Fire truck production workshop and testing
V. PRODUCT SHIPPING (RORO OR BULK SHIP)
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
VII. COMPANY INFO
HUBEI MANTEN AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck , refrigerated truck and etc. Main info as below:
Welcome to contact with us for more info. We will offer you the best truck as we can .
