Garbage Compactor Truck 8 Cbm Compression Garbage Truck 1suzu 4X2 Garbage Truck 5 Tons Refuse Garbage Compactor Truck, Garbage Compactor Truck, Compression Garbage Truck

Product detail

Model NO.

CLW5110YSLJ

Transmission Type

Manual

Payload

5-15ton

Diesel

Drive Wheel

Brand

1 Suzu

Models

Single Bridge

Usage

Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type, Eat Hutch Type

Condition

Description

China Brand Refuse Garbage Compactor Truck for Was

Van Volume

5cbm 6cbm 7cbm 8cbm 9cbm 10cbm 15cbm 20cbm

Engine Brand

I Suzu

Color

White Red Green Yellow Black Camo Compress Garbage

Design

OEM, ODM

Horse Power

90-200HP

7.00-16 7.50-16 8.25-16

Chassis Brand

Dongfeng, FAW, Sinotruk, Forland, Foton

Certificate

ISO, CCC, BV Certificate

Fuel Type

Diesel

Thickness

Side 4mm, Bottom 5mm

Control Type

Electric Control with Manual Control

Material

Q235 Carbon Steel

Dimension

7800X2500X3000

Transport Package

Bulk, RO-RO, Container, Naked, Waxed

Specification

ISO, CCC and others

Trademark

Origin

Hubei. China

HS Code

8704223000

Production Capacity

800sets/Month

After-sales Service:

Lifetime Technical Support, Parts Supply etc

Warranty:

One Year

Type:

Compactor

Certification:

ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE

Volume:

6001-10000L

Emission Standard:

Euro 5

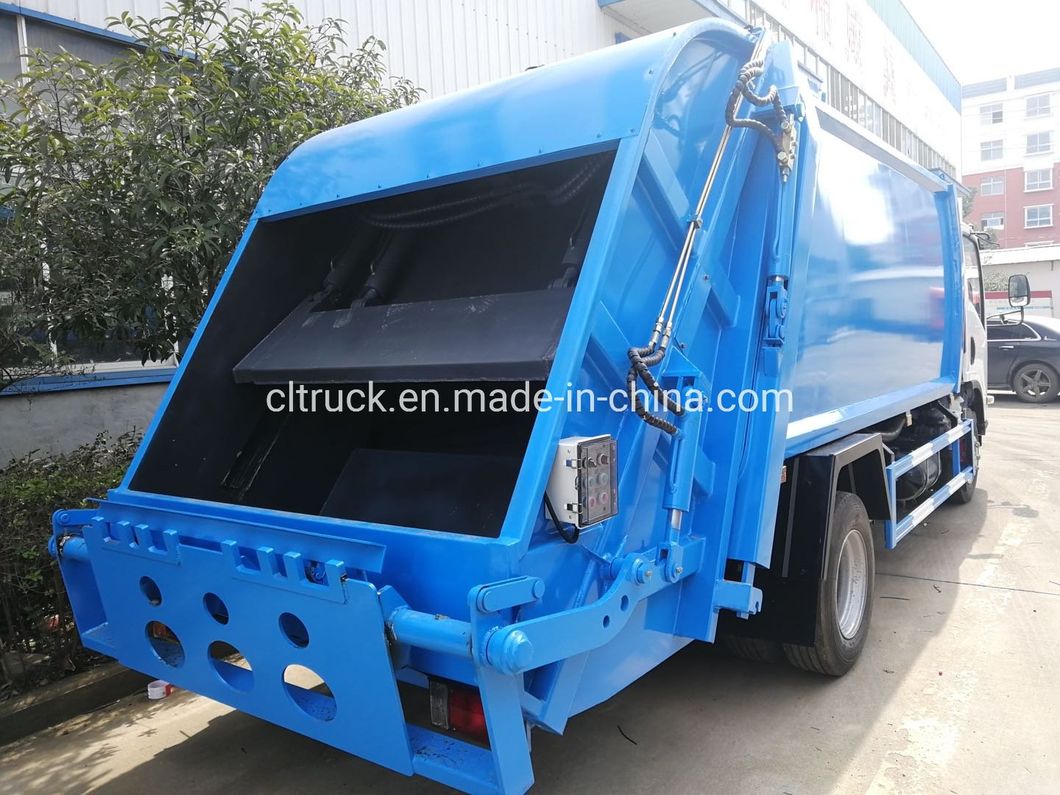

Garbage Compactor Truck 8 cbm Compression Garbage Truck 1SUZU 4x2 Garbage Truck 5 tons Refuse Garbage Compactor Truck

Vehicle Parameter:
Product Name	Compactor Garbage Truck
Chassis No.	l-SUZU 700P
Driving Type	4*2
Gross Weight	10550kg
Related Loading Mass	3525kg
Curb Weight	6830kg
Air condition	Chassis original
Dimension	About 7500×2300×2580(mm) (make the size available to load in 40HQ)
Wheelbase	3815(mm)
Front/rear Axle Loading Capacity	3500/7050kg
Approach angle	17°
Departure angle	13°
Front/rear Suspension	1110/2095(mm)
Tire	235/75R17.5 16PR,8.25R20 14PR, 6+1 PCS
Max Speed	110(Km/h)
Engine parameters:
Model	4HK1-TCG51
Horse Power	190hp
Displacement	5193cc
Emission Standard	Euro 5
Type	4 stroke,4 cylinders, in-line, water cooling
Gear Box
Gear Box	l-SUZU MLD 6 forward and 1 reverse
Superstructure Parameter:
Tank Volume	8CBM
Tank Shape	Arc-shape/Square Optional
Tank Material thickness	Bottom:4mm Side:4mm
Tank Material	Q345
Compression Ratio	≥2.5
The effective volume of the bucket	≥0.8m³
Loading cycle time	≤40 s
unload garbage time	≤45s
control method	Automatic, Manual
Maximum pressure of hydraulic system	20MPa
Control System	Siemens PLC
Engine power control	Fully automatic control
Tumbler mechanism	240L Garbage bin(Others Optional)

Principle
Garbage compactor truck (also known as Refuse Compactor, Refuse Collection Vehicle/RCV) is a special type of urban environmental sanitation vehicle that collects and transports garbage, which can prevent secondary pollution caused by spilling along the road. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate. Two men (driver and operator) are required to perform the entire functionality of the compactor.
Application
It is mainly used to transport domestic garbage, but also can transport ash, sand, stone, soil and other bulk construction materials, ore or coal in mines or coal construction, widely applied to environmental sanitation, municipal administration, factories and mining enterprises, property communities, garbage concentrated residential areas.
Advantages
1. Simple, efficient garbage collection; 2. Automatic repeated compacting function with high compression ratio; 3. More garbage loading capacity; 4. Automatic operation;(labor saving) 5. Environmental-friendly; 6. High efficiency of vehicle utilization; 7. Decent sealing characteristics;
