Model NO.
JSXT5120ZYS3
Transmission Type
Manual
Payload
25 Ton
Fuel
Diesel
Drive Wheel
6×4
Brand
Dongfeng
Models
Medium
Usage
Compression Type
Condition
New
Horsepower (PS)
245PS
Dimensions (mm)
9100*2600*3280
Curb Weight (Kg)
13250
Total Weight (Kg)
25000
Cab
Flat Top
Driving Form
Steering Wheel /Left Hand
Transport Package
Do Wax / Shipping by Containers or Bulk Carriers O
Specification
Self loading garbage truck
Trademark
JSXT
Origin
China
Production Capacity
200units /Month
After-sales Service:
12 Months
Warranty:
12 Months
Type:
Rear Loader
Certification:
ISO9000, CCC
Volume:
＞15000L
Emission Standard:
Euro 5
870423 emission V 6x4 type dongfeng 25 ton garbage compression truck rubbish truck for Uzbekistan
Compressed garbage truck upper box body is made of carbon steel plate and high-strength manganese steel plate; the thickness of the box body is 5mm at the end and 5mm at the bottom, and 16mm in part; The curved side panels and roof of the box body increase the rigidity and strength of the box body structure. With hydraulic cover, with rear flip mechanism, with hanging bucket rack, can hang national standard trash can.
| Cab | Flat top | Horsepower (PS) | 245HP |
| Dimensions (mm) | 9100×2600×3280 | Driving form | Steering wheel /Left hand |
| Curb weight (kg) | 13250 | Total weight (kg) | 25000 |
| Cab | Dongfeng brand Cab; Reversible | ||
| Front axle | 5 tons capacity | ||
| Rear axle | 10 tons capacity*2 | ||
| Gearbox | 8-speed gearbox FAST | ||
| Vehicle frame | Through reinforced girder frame | ||
| Tire | 10.00R20 type | ||
| ABS | No Have | ||
| PTO interface | Have | ||
| PTO | Have | ||
| Front / rear overhang | front:1250mm,rear: 2900mm | ||
| Departure corner | front:32,rear:11 | ||
| suspension | Leaf spring 9/10 | ||
| Number of axles | 3 | ||
| Wheelbase (mm) | 3600+1350 | ||
| Number of tires | 10+1 | ||
| Tread (mm) | 1860/1860 | ||
| Drive type | 6*4 | ||
| Engine | Cummins ISD245-50 | ||
| Emission Standards | Euro V | ||
| Steering | LHD | ||
| Braking System | Air brake | ||
| Spare tire frame | Have | ||
| light | Have | ||
| Voltage | 24V | ||
| Toolbox | Have | ||
| colour | According to user requirements | ||
| Top configuration | |||
| Material and thickness of garbage bin | Q345 low alloy anticorrosive and wear-resistant plate (manganese steel) 5mm on the side, 5mm on the bottom, 5mm on the side plate | ||
| Box shape | Curved box | ||
| Emergency stop button | Have | ||
| Safety control system | Have | ||
| Recovery tank | Have | ||

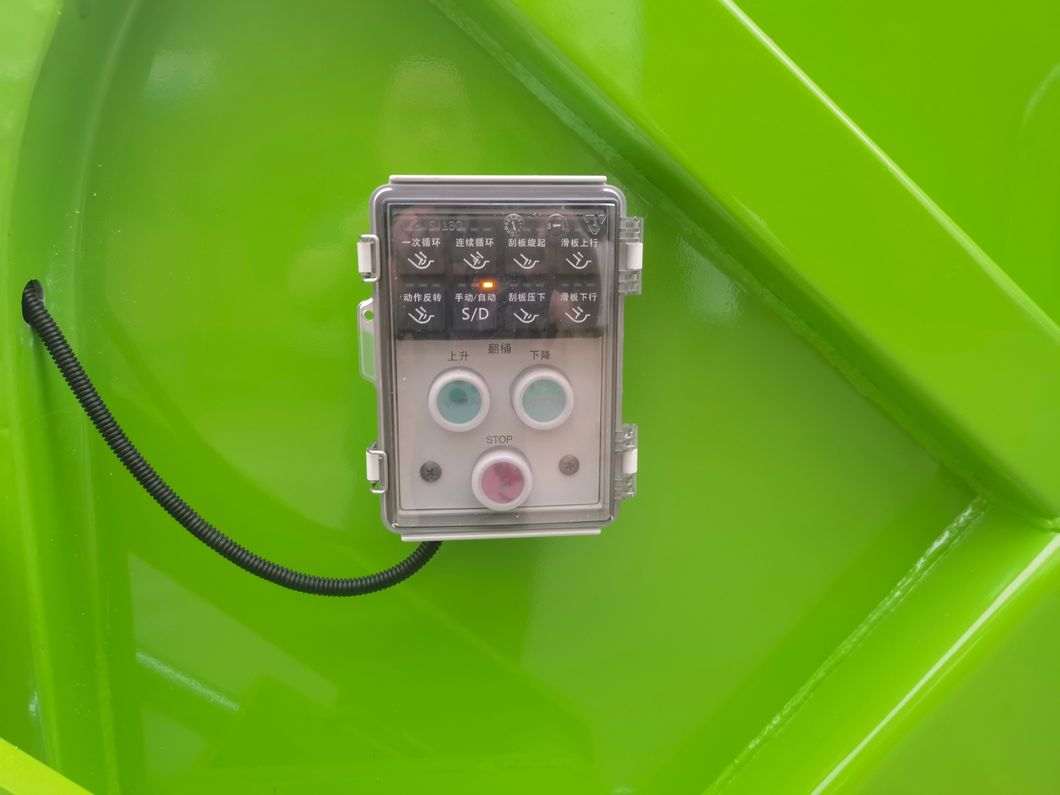

| Tail electric control | Have | ||
| Remarks: It adopts domestic famous brand oil cylinders, high-density and high-pressure oil pipes, multi-way valves and oil pumps. The compression trash can is a conjoined type, which works with an external power supply, reverses the feed, has a compression push plate, and has a locked door at the rear. Photo for reference only. | |||
1.Payment term: T/T & L/C
2.Warranty : 12 months (normal situation)
3.Delivery time: 25 working days (big quatity need negotiate)
4.MOQ: 1 unit
5.Specification: as your request or refer to the quotation sheet for different product parameters.
6.color: factory recommend or as your needs.
7.Quality control: 1)Various production line processes.2)QA & QC quality control and inspection
3)welcome visit our factory at anytime.
8. 24 hours online for your services.
welcome contact Tina get best factory offer
