Model NO.
CLW5046GB
Fuel
Diesel
Drive Wheel
4×2
Brand
Forland
Models
Small
Usage
Dump, Sealed, Arm Type
Condition
New
Horsepower
68HP
Thickness of Box
4mm, 5mm
Container Roll on Time
50-60s
Colour
Customized
Chassis
Dongfeng, HOWO, FAW, JAC, Foton, etc
Garbage Box Material
Carbon Steel
Container Roll off Time
40-50s
Loading&Unloading
Hydraulic System
Transport Package
Naked, RO-RO, Bulk, Container
Specification
4835*1870*2120mm
Trademark
CLW
Origin
Suizhou, China
HS Code
8705909090
Production Capacity
500 Unit/Month
Type:
Roll Off
Certification:
ISO9000, CCC, CE
Volume:
3-5m3
Emission Standard:
Euro 4
Transmission Type:
Manual
Payload:
2t, 3t, 4t, 5t, 6t

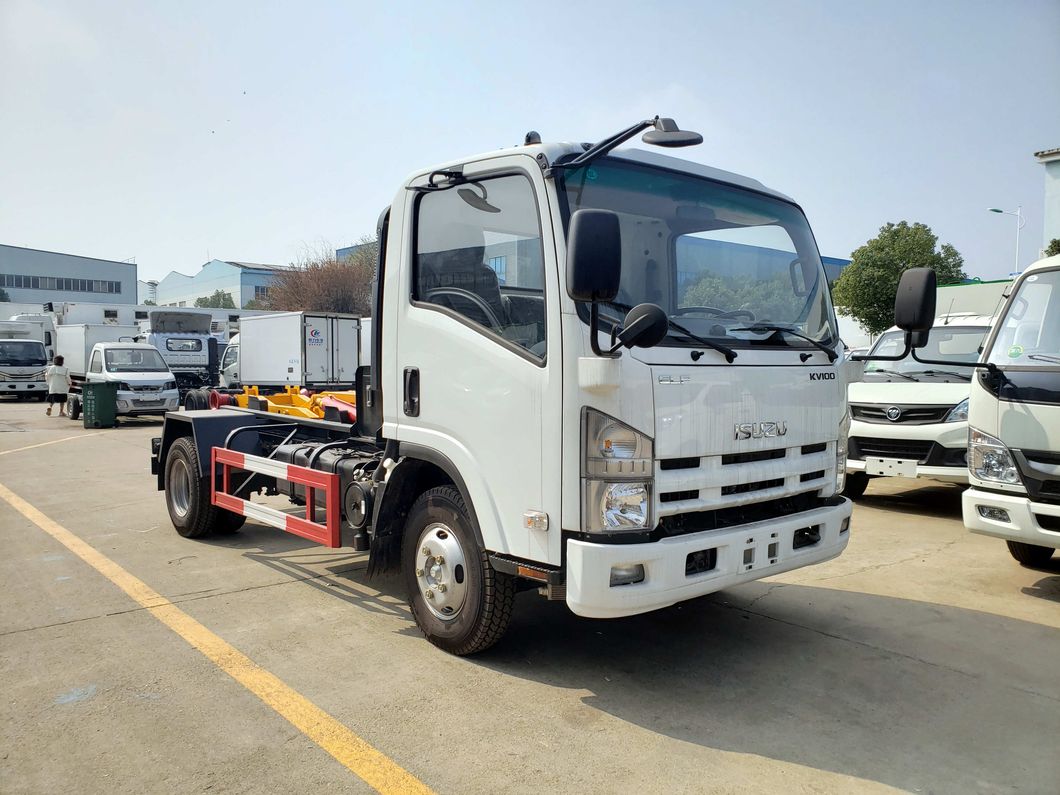

1t 2t 3t Mini Dumper Truck 4X2 Small Dump Garbage Truck
Description:
1. Garbage Bin with different size options of waste collection truck: 2cbm to 12cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
| Drive type | 4*2, New condition, LHD | |
| Vehicle Main Dimensions | (L x W x H)mm | 4835*1870*2120 |
| Wheel base (mm) | 2800 | |
| F/R Axle-Load | 1335/1340kg, | |
| Curb weight | 2390 kg | |
| GVW | 4015 kg | |
| Max. driving speed(km/h) | 90 | |
| Engine | Horse Power(HP) | 68 |
| Emission standard | Euro IV | |
| Gearbox | 5 forwards& 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Tire | 6.00R16, 7 pc including 1 spare tire | |
| Steering Gear | power steering, hydraulic steering with power assistance | |
| Garbage Compactor Standard confirguration | ||
| Garbage Box Material | Carbon Steel Q235 | |
| Thickness of box | 4mm | |
| Garbage Box Volume | 3cbm | |
| Container Roll on time(s) | 50-60 | |
| Container Roll off time(s) | 40-50 | |
| Hydraulic System | Consist of oil pump, oil cylinder, front valve, rear valve, pressure gauge, oil box, filter and pipelines. Front valve controls push panel and strike-off board. | |
