Model NO.
G50
Certification
ISO9000
Volume
4 M3
Emission Standard
Euro 2
Transmission Type
Automatic
Payload
900 Kg
Fuel
Electricity
Drive Wheel
4 Wheels
Brand
Fengyuan
Models
Large
Usage
Garbage Transport
Condition
New
Transport Package
Container Shipment
Specification
3480*1450*2200mm
Origin
Anhui, China
Production Capacity
300 Sets Per Month
After-sales Service:
Provide
Warranty:
1 Year
Type:
Rear Loader
1-Garbage Truck is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.
2--Easy Full Automatic Operation: computer control system for loading and unloading operations.
3--One Person Operation: Reducing sanitation working, greatly improves the working environment.
4--Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
5--Capacity: option for 3-20m3 garbage truck.
6--Steering wheel: both left and right hand drive,meet the needs of different countries
7--Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 garbage truck
8--Truck chassis: option for japanese and chinese brand,such as dongfeng,faw,foton,howo,jac,jmc,forland...
Specifications:
| Outer Dimension | 3480*1450*2200mm |
| Angle of inclination | 55-90% |
| Garbage container Dimension | 2000*1400*1300mm |
| Vehicle Gross Weight | 900 kg |
| Loading capacity | ≤4 CBM |
| Motor Power | 9000w |
| Motor Power of the hydraulic system | 3000w |
| Maximum speed per hour | ≤35 km/h |
| Brake Distance | ≤4 m |
| Turning radius | ≤4 m |
| Distance between rear tires | 1100mm |
| wheelbase | 2230 mm |
| Minimum ground clearance | 160 mm |
| Rated voltage | 72 V |

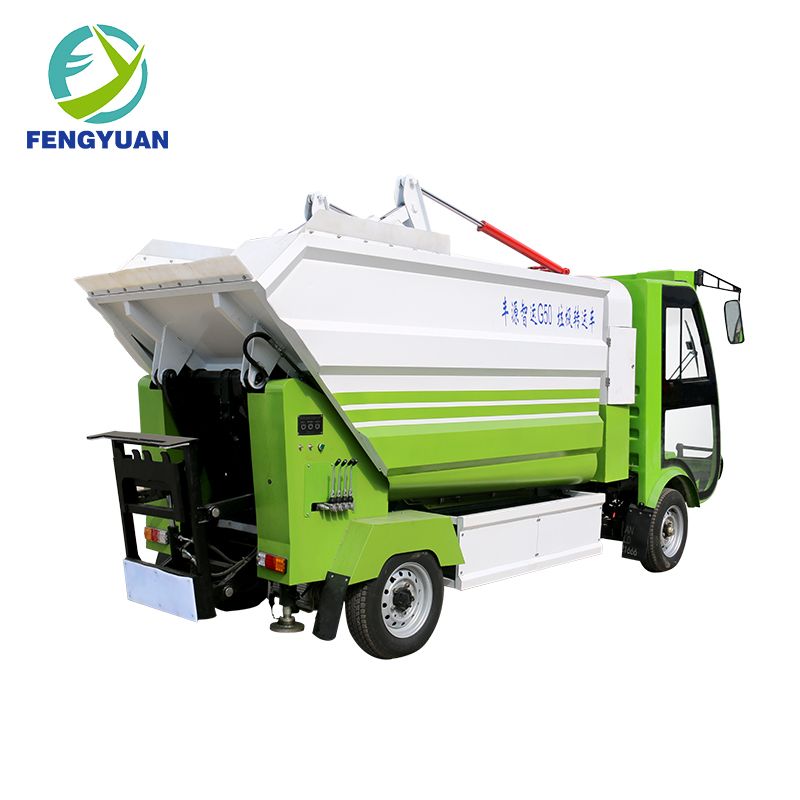

Product Pictures
