Model NO.
CLW5086LJC
Fuel
Diesel
Drive Wheel
4×2
Brand
Dongfeng
Models
Small
Usage
Swing Arm Type
Condition
New
Hopper Size
6cbm, 7cbm, 8cbm Ground Type
Hopper Thickness
4mm, Carbon Steel Q235B
Hopper Quantity
as Per Customer′s Request
Controlling Way
Three-Way Hydraulic Control Valve
Chassis Brand
Dongfeng, Foton, Isuzu, Sinotruk, etc.
Warranty
One Year
Loading Capacity
6ton, 7ton, 8ton
Protective Material
Q235A Carbon Steel
Dump Type
Hydraulic Cylinder Lifting and Self-Loading
User Manual
Yes
Transport Package
Naked, Waxed, Bulk Ship, RO-RO
Specification
7350*2500*3350 (mm)
Trademark
CLW
Origin
Suizhou, China
HS Code
8705909090
Production Capacity
500 Unit/Month
Type:
Recycling
Certification:
ISO9000, CCC, TS16949, CE
Volume:
6001-10000L
Emission Standard:
Euro 3
Transmission Type:
Manual
Payload:
5ton

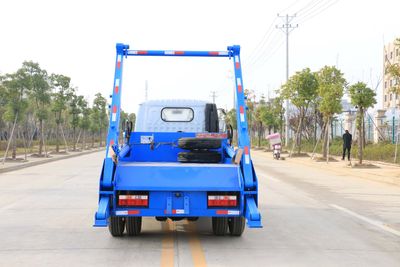

China Dongfeng 6cbm/7cbm/8cbm Sanitation Waste Collection Vehicles 6000L/7000L/8000liters Swing Arm Garbage Truck
1. Dongfeng Chassis of waste recycling truck: Engine 170HP, Fast Gearbox 6Forward & 2Reverse;
2. Garbage Bin with different size options of waste recycling truckk: 4cbm to 10cbm;
3. Hydraulic Control Loading&Unloading System;
4. Different shapes of waste recycling truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type;
5. High-tensile steel chains:imported hydraulic oil cylinder and sealing material;
6. Lifting oil cylinder:double oil cylinder under garbage box,so garbage box can be lifted and self-dumped;
7. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck;
8. Best Choice for Garbage collection and transporation Inside City.
Product Description
| General Technical Parameters | |||
| Overall Dimension | 6800*2250*3200 (mm) | ||
| Gross Vehicle Weight | 14000(Kg) | ||
| Curb Weight | 4800(Kg) | ||
| Chassis Specification | |||
| Chassis Brand | Dongfeng | ||
| Drive model | 4*2 | ||
| Cabin | Single Row, LHD or RHD, with air condition. | ||
| Number of Passengers | 3 | ||
| Engine | Model | 130HP, 4-stroke direct injection , 6-cylinder in-line, turbocharged intercooled, withABS. | |
| Power | 96KW/130HP | ||
| Emission standard | EURO 3 | ||
| Displacement | 4600(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | 6Forwards & 1Reverse, manual operation, with power steering. | ||
| Brake System | Air break | ||
| Wheel Base | 3800mm | ||
| Front/Rear Axle Loading | 3600/8000(Kg) | ||
| Approach/Departure Angle | 30/21(°) | ||
| Overhang | Mechanical Suspension, 9/11+8 | ||
| Tire | 9.00R20, 6pc with 1 spare tire | ||
| Max Driving Speed | 95(km/h) | ||
| Upperstructure Specification | ||
| Garbage Hopper | Dimension | 3700×1850×1400mm |
| Standard Configuration | With one garbage bin, with hydraulic rear outrigger | |
| Volume | Ground type, 8CBM | |
| Loading Capacity | 6Ton | |
| Thickness | 5mm, Carbon Steel Q235B | |
| Dump type | Hydraulic cylinder lifting and self-loading | |
| Dump angle | ≥45° | |
| Hydraulic system pressure | ≤16Mpa | |
| Protective Material | Q235A Carbon Steel | |
| Controlling Way | Three-way hydraulic control valve | |
| Other Configuration |
| |
| Options | Electronically controlled valve, trash bin type, trash bin quantity, etc. | |
