Model NO.
zz5317n3567a
Transmission Type
Manual
Payload
40T
Fuel
Diesel
Drive Wheel
8X4
Brand
Sinotruk
Models
Large
Usage
Arm Type
Condition
New
Driver Seat
Air Suspension Seat
Color
as You Like
Transport Package
Nude Packing After Painted Wax
Specification
10000x2450x3100mm
Trademark
SINOTRUK HOWO
Origin
China Main Land
HS Code
8704223000
Production Capacity
3000unites/Month
After-sales Service:
Has
Warranty:
One Year or 100000km Which Comes First
Type:
Roll Off
Certification:
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Volume:
＞15000L
Emission Standard:
Euro 2

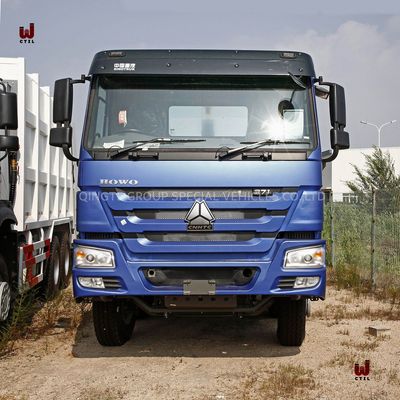

12 Wheeler HOWO 30 tons Hook Lift Garbage Truck
Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.), buses, trailers, including dump truck, tractor truck, concrete mier truck, sprinkler truck, water/Oil tank truck, truck mounted crane, concrete pump truck.etc, low bed semi-trailer, flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.
This hook lift garbage truck we have new and used one,You can choose according to your requirement!
1. Specifications:(Configuration can be changed as required)
Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.), buses, trailers, including dump truck, tractor truck, concrete mier truck, sprinkler truck, water/Oil tank truck, truck mounted crane, concrete pump truck.etc, low bed semi-trailer, flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.
This hook lift garbage truck we have new and used one,You can choose according to your requirement!
1. Specifications:(Configuration can be changed as required)
| Cabin | Driving Model: 8x4 Left Hand Drive or Right Hand Drive | ||
| HW76 cabin with one sleeper, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. | |||
| Condition: brand new | |||
| Engine | Model: SINOTRUK WD615.69 336hp | ||
| Type:Diesel 4-stroke direct injection diesel engine,6-cylinder in-line with water cooling, turbo-charging and inter-cooling. | |||
| Emission Standard: Euro II EURO III EURO 4 | |||
| Displacement: 9.726L | |||
| Transmission | HW19710 manual gearbox, 10F & 2R | ||
| Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) | |||
| Steering | German power steering, model Z F 8118, hydraulic steering with power assitance | ||
| Front Axle | HF9, 2x9000 KGS | ||
| Steering with doubleT-cross section beam | |||
| Rear Axle | HC16, 2x16000 KGS | ||
| Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. | |||
| Ratio: 4.8 | |||
| Brake | Service brake: dual circuit compressed air brake | ||
| Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | |||
| Auxiliary brake: engine exhaust brake | |||
| Electrics | Operating voltage: 24 V, negative grounded | ||
| Starter: 24 V, 5.4 Kw | |||
| Alternator: 3-phase, 28 V, 1500 W | |||
| Batteries: 2 x 12 V, 165 Ah | |||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |||
| Tires | 315/80R22.5 or 12R22.5, 12 wheelers tubeless tires with one spare tire. | ||
| Optional: 12.00R20, radial tires | |||
| Fuel Tank | 400 Liters | ||
| Overall Dimension | 11500*2550*3400 mm | ||
Brand new HOWO hook lift garbage trucks in our warehouse, waiting for delivery.
In order to protect our trucks from the sea water and rain, we painted wax, so color looks not so bright.
Used trucks in our warehouse, waiting for customers coming to choose and delivery!
3. Our Factory brief Instruction
SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.
4. Packing and Shipping
Packing : Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO
5. Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as a manufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions
6. FAQ
| Q1: I don't want this configuration. |
| A: The configuration can be changed according to your needs |
| Q2: Minimum order quantity? |
| A: MOQ is 1 unit. |
| Q 3: Production period? |
| A: (Truck & trailer) Within 30 days since the moment we got your down payment (Parts) Within 7 days since the moment we got your down payment |
| Q 4: Payment term? |
| A: (Truck & trailer) 30% T/T as deposit, the balance should be paid before delivery. or L/C (Parts) 100% T/T should be paid before delivery |
| Q 5: Shipping? |
| A: (Truck & trailer) by container or RoRo/Bulk shipment. (South America, Middle East, Africa, Oceania etc.) by road or railway.(Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos etc.) (Parts) by international courier service, such as DHL, TNT, UPS, or Fedex. The goods above $1000 can be shipped by sea |
| Q 6: Can you supply some quick-wear truck or semi trailer parts ? |
| A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc. |
8. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.
9. Happy to tell all of our customers, in order to meet all the requires from different countries, we have built used truck second hand truck business, we will buy some second hand truck with good condition and put them in our warehouse so that you can choose the trucks you liked when you are in China. If unconvenient for you, we can choose for you! Only good condition, good price, earn long-term business!
