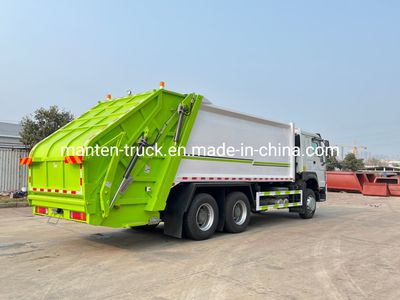

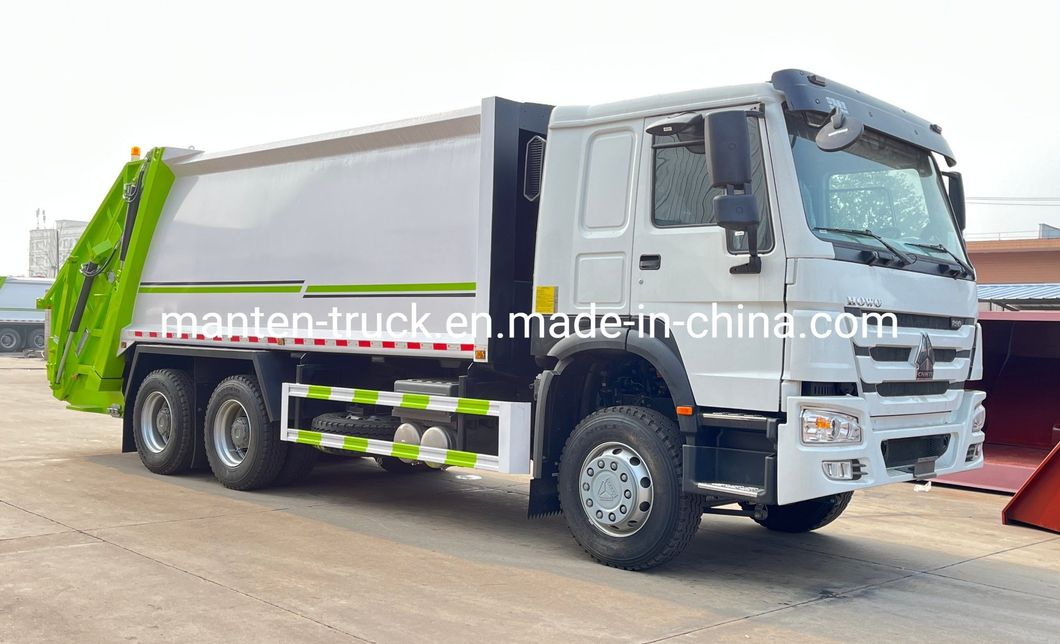

* Sinotruk HOWO 18CBM 18000Liters Refuse Compactor Garbage Truck/Compression Garbage Truck for loading trash rubbish truck *
Our factory is professional manufacturer in truck area,
guarantee all goods Brand-New and High-quality.
» I.Product Describution:
Manufacturer: Hubei Manten Automobile Co.,Ltd.
Compressed garbage truck is mainly used for the collection and transport of a one-time non-recyclable municipal solid waste, commercial waste, and also used for non-toxic, non-corrosive and non-radioactive industrial garbage.It is produced with Germany technology. It's with the features of high system pressure, large compression force, high volume rate and large loading capacity, which could make loading capacity increase 5-7 times.
The Structure Picture of The Compactor Garbage Truck:
» II.Product Parameter:
| Chassis | Chassis brand | Sinotruk HOWO | ||||
| Chassis model | MT1250XMFRY | |||||
| Overall dimension(L*W*H) | 10250x2550x3300mm | |||||
| Drive modle | 6X4 left hand drive | |||||
| Front axle | 8ton loading capacity | |||||
| Rear axle | 16ton loading capacity | |||||
| Wheel Base | 4300+1350mm | |||||
| Tyre size & number | 295/80R22.5, with one spare tyre | |||||
| Max speed | 105km/h | |||||
| Engine | Model | WP12.400E201 | ||||
| Engine Type | 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4- valve,diesel engine | |||||
| Horse power | 290hp | |||||
| Displacement | 7780ml | |||||
| Emission | Euro 2 | |||||
| Garbage tank | Volume of compartment | 18m3 | ||||
| Thickness | Side :4mm ; Bottom:4mm | |||||
| Material | Carbon steel,inner epoxy anticorrosive | |||||
| Electric system | CAN electric automatic control | |||||
| Function | Seal garbage truck is formed of garbage box, hydraulic system, operation system. Sewage will be put into totally the sewage box during self-compress and self-dump. With one Bucket. The rear bucket can be according to your requests. | |||||
Operational:
Compactor garbage truck loading volume: 4-22m3
Euro standard : Euro 4-6
Operation system: PLC or CAN
Tail turnover mechanism: dustpan hopper, trash bin, Fully sealed bucket.
» III.Product Details:
1. Our garbage have three control mode:
2. Two sweage tanks for discharge:
3. Two side of tank all have emergency stop button to ensure operate safety:
4. Rear garbage bin can be choosed :
Products--100% First Class!
Transportation--100% Convenience, Efficient!
Services--Obtaining a satisfied smile!
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a good after-sell service
4.we have strong professinal design team
5.promptly delivery. any order is welcome.
We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
