Model NO.
CLW502L1QL
Fuel
Diesel
Drive Wheel
4×2
Brand
Isuzu
Models
Small
Usage
Compression Type
Condition
New
Product Name
Garbage Compactor Truck
Garbage Collection
Household Waste, Domestic Garbage, Non-Medical
Other Name
Refuse Collection Vehicle (Rcv), Refuse Compactor
Garbage Tank Volume
6000 L
Compression Pressure
16 MPa
Garbage Tank Material
Q345 (Manganese Steel)
Compression Mechanism
Bi-Directional Compression
Garbage Tank Thickness
4/4 mm (Wall/Floor)
Compression Ratio
1:0.8
Garbage Loading Mechanism
Rear-Loader (240 L Garbage Bin)
Controlling Methodology
Manual and Electrical
Garbage Loading Capacity
5000 Kg
Transport Package
Nude, Wax-Polishing
Specification
6600*2000*2600 mm
Trademark
CLVEHICLES
Origin
Hubei, Mainland, China
HS Code
8704223000
Type:
Compactor
Certification:
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Volume:
3001-6000L
Emission Standard:
Euro 5
Transmission Type:
Manual
Payload:
5t

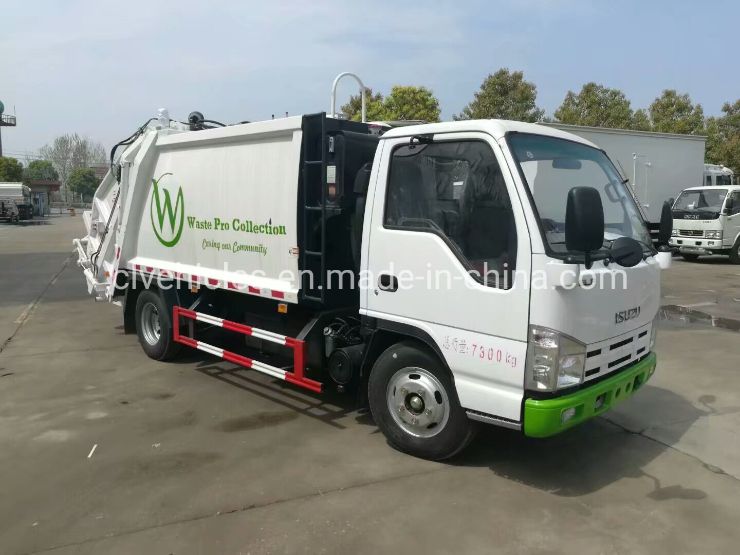

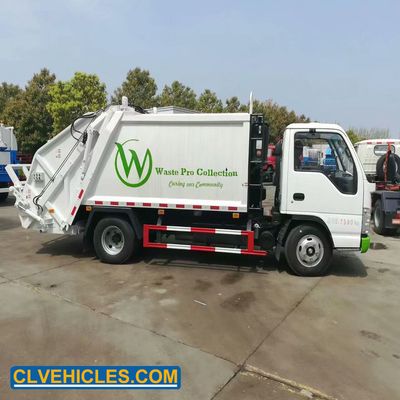

| ISUZU 4x2 130hp 6m3 Compactor garbage truck | |||

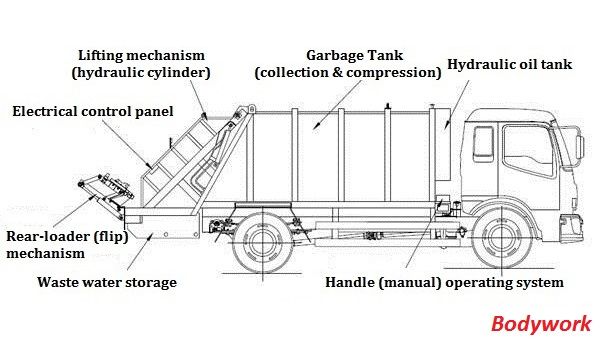

| Vehicle | Bodywork | ||
| Speed | 105 km/h | Garbage tank form | Arc-shaped |
| Passenger | 2 | Garbage tank volume | 6000 L |
| Wheelbase | 3360 mm | Garbage tank material | Manganese Steel (Q345) |
| Tyre | 7.00R16 | Garbage tank thickness | 4/4 mm (floor/wall plate) |
| Engine power | 130 hp (96 kw) | Garbage compression ratio | 1:0.8 |
| Displacement | 2999 ml | Garbage compression pressure | 16 mpa |

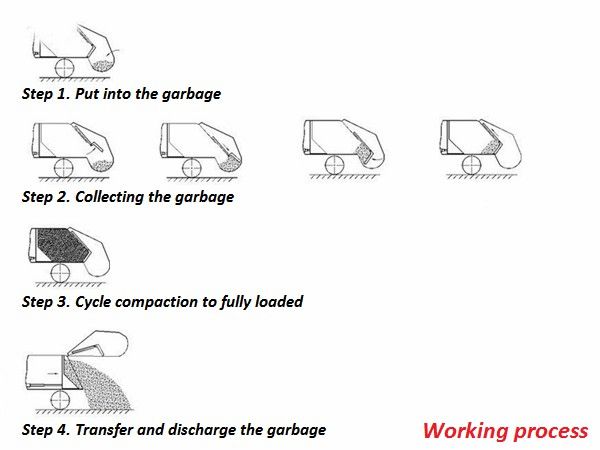

| Principle | |||
Garbage compactor truck (also known as Refuse Compactor, Refuse Collection Vehicle/RCV) is a special type of urban environmental sanitation vehicle that collects and transports garbage, which can prevent secondary pollution caused by spilling along the road. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate. Two men (driver and operator) are required to perform the entire functionality of the compactor.  | |||
| Application | |||
 | |||
| Advantages | |||
1. Simple, efficient garbage collection; 2. Automatic repeated compacting function with high compression ratio; 3. More garbage loading capacity; 4. Automatic operation;(labor saving) 5. Environmental-friendly; 6. High efficiency of vehicle utilization; 7. Decent sealing characteristics; | |||
| Reference | |||
     | |||
   | |||
