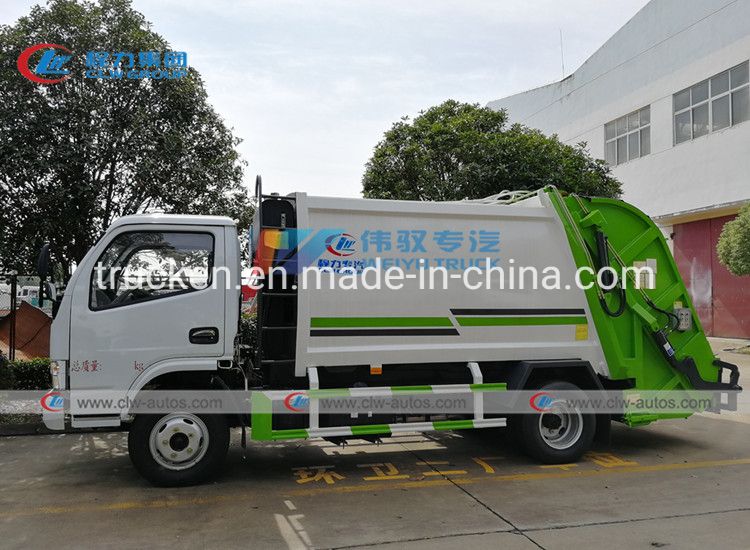

China Dongfeng 4x2 4M3 5M3 Compactor Garbage/Refuse/Rubbish/Waste Collection Truck
Product Description:
- Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution
- Easy Full Automatic Operation: Computer control system for loading and unloading operations.
- One Person Operation: Reducing sanitation working, greatly improves the working environment.
- Double Operation System: Computer control system and manual operation greatly improves the vehicle usage rate.
Specifications for China Dongfeng 4x2 4M3 5M3 Compactor Garbage/Refuse/Rubbish/Waste Collection Truck:
| Cabin | Driving type 4x2 | ||
| With A/C. Left Hand Drive. | |||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6220*2050*2570 | |
| Wheel base (mm) | 3308 | ||
| Wheel track (front/rear) (mm) | 1504/1425 | ||
| Approach/Departure angle(°) | 24/16 | ||
| Weight in KGS | Tare Weight | 5400 | |
| Front axles loading capacity | 1800kg | ||
| Rear axles loading capacity | 3500kg | ||
| Max. driving speed(km/h) | 110 | ||
| Engine | Brand | Cummis | |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 102 HP | ||
| Emission standard | Euro III | ||
| Gearbox | 5 forwards &1 reverse | ||
| Clutch | Diaphragm spring clutch | ||
| Steering Gear | Power steering | ||
| Tire | 7.00R16 All radial tires with one spare, 7 pieces | ||
| Compression garbage box body system | |||
| Body Volume | 3-6m3 | ||
| Material Thickness | 4mm | ||
| Cycle Time of Filling(S) | ≤40 | ||
| Lifting Time of Filler(S) | 8-10 | ||
| Time of Discharging | ≤60 | ||
| Working Pressure(MPA) | 16 | ||
| Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank. | |||
The detailed pictures for China Dongfeng 4x2 4M3 5M3 Compactor Garbage/Refuse/Rubbish/Waste Collection Truck:
Truck Diagram:
Truck Details:
