Model NO.
CLW510YEIKF
Transmission Type
Manual
Payload
3ton, 6ton, 8ton, 10ton, 15ton, etc.
Fuel
Diesel
Drive Wheel
4×2
Brand
FAW
Models
Medium
Usage
Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type, Eat Hutch Type
Condition
New
Chassis Brand
FAW, Dongfeng, Sinotruk Homan/HOWO, Foton, etc.
Wheel Base
4700mm
Storage
Garbage, Rubbish, Refuse
Cycle Time of Filling
<40s
Lifting Time of Filler
8-10s
Time of Discharging
<60s
Engine
Diesel, FAW
Gearbox
6 Forwards &1 Reverse
Steering Gear
Power Steering
Tire
Radial Tires
Drive Model
4X2, 6 Wheels, 6 Wheeler,
Drive Type
LHD, Rhd
Product Name
Compression Compressed Garbage Truck
Transport Package
Naked, RO-RO, Bulk
Specification
8362*2380*2630mm
Trademark
CLW
Origin
Suizhou, China
HS Code
8705909090
Production Capacity
500 Units/Month
After-sales Service:
with After Sales Service
Warranty:
1 Year
Type:
Compactor
Certification:
ISO9000, CCC, EPA, EEC, CE
Volume:
10001-15000L
Emission Standard:
Euro 3

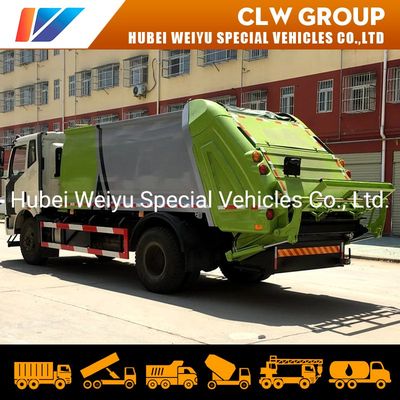

Compression Compressed Garbage Compactor Truck
Description:
Factory Photo
The CLW group, which was appointed by the Development and Reform Committee of China. CLW group is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Description:
*Widely used, support custimization
*Strong motor, fully functional
*Heavy load, simple operation
*Plate thickening, factory delivery directly
*Good service, cheap price
Specification | |||
Brand Name | FAW | ||
Overall Dimension | 8362×2380×2630 mm(option) | Gross Vehicle Weight | 12490 kg |
Curb Weight | 4850 kg | Loading Weight | 7640 kg |
Wheel Base | 4700 mm(optional) | Front / Rear Axle | 3990/8500kg |
Cabin | LHD&RHD, 3 Passengers Allowed, with Air Conditioner, Radio, | ||
Engine horsepower | 168HP, EUR 4(optional) | ||
Max Driving Speed | 93 km/h | ||
Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||
Tire | 9.00R20, steel wire tire, 6pc with 1 spare tire | ||
Garbage Bin | Capacity | 14CBM(option)) | |
Material | 4mm Carbon Steel for Garbage Bin Body | ||
Design | Whole unit with Leakage Proof Design | ||
Ways of Loading | Rear Loading with optional Bucket Lifting System | ||
Garbage Compact Ratio | 1/3 - 1/4 | ||
Control System | One control Panel on the back, One Control system in back of Cabin | ||
Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||
2. Automatic loading, compressing and discharging, all handled by 1 person | |||
3. Sewage water collection tank to avoid any pollution during handling. | |||
4. Large Pressure, Good Leakage Proof, Convenient Operation | |||
Dependable Security | |||
5. Electrical Control Panel for compacting system. | |||
6. Cycling time<14~18s | |||
Remarks | 1. Color is optional | ||
2. Customized LOGO painting as per customer request | |||
