Model NO.
CLW5638IC
Fuel
Diesel
Drive Wheel
4×2
Brand
Isuzu
Models
Medium
Usage
Compression Type
Condition
New
Chassis Brand
Dongfeng,Foton,HOWO,Shacman,Isuzu
Material
Carbon Steel
Body Thickness
4mm
Wheel Base
4600 mm
Engine
Cummins
Horsepower
180 HP
Tire
9.00r20
Campacting Ratio
0.6-0.8 Ton/Cbm
Logo
as Per Customer′s Request
Warranty
One Year
User Manual
Yes
Operating Video
Yes
Transport Package
Naked, Waxed, Bulk Ship, RO-RO
Specification
8470x2490x3250mm
Trademark
CLW
Origin
Suizhou, China
HS Code
8705909090
Production Capacity
500 Unit/Month
Type:
Compactor
Certification:
ISO9000, CCC, TS16949, CE
Volume:
14cbm
Emission Standard:
Euro 3
Transmission Type:
Manual
Payload:
8ton
ISUZU garbage compactor truck Refuse Collection Compressed Waste Management Vehicle
Product Description
- Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution
- Easy Full Automatic Operation: computer control system for loading and unloading operations.
- One Person Operation: Reducing sanitation working, greatly improves the working environment.
- Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
Specifications of 14CBM Garbage Compactor Truck
| ISUZU 14CBM Garbage Compactor Truck | |||||
| Overall Dimension | 8470×2490×3250 mm | Gross Vehicle Weight | 15800 kg | ||
| Curb Weight | 9460 kg | Loading Weight | 6145 kg | ||
| Wheel Base | 4600 mm | Front / Rear Axle | 4500 kg / 9000kg | ||
| Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, | ||||
| Engine | |||||
| Engine horsepower | 180HP, EURO II | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 6 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 9.00R20 (6 pieces with one spare) | ||||
| Garbage Bin | Capacity | 14CBM | |||
| Material | 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 1/3 - 1/4 | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time<14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||
Product Diagram
Product Details
Working Show
Other Special Truck Series

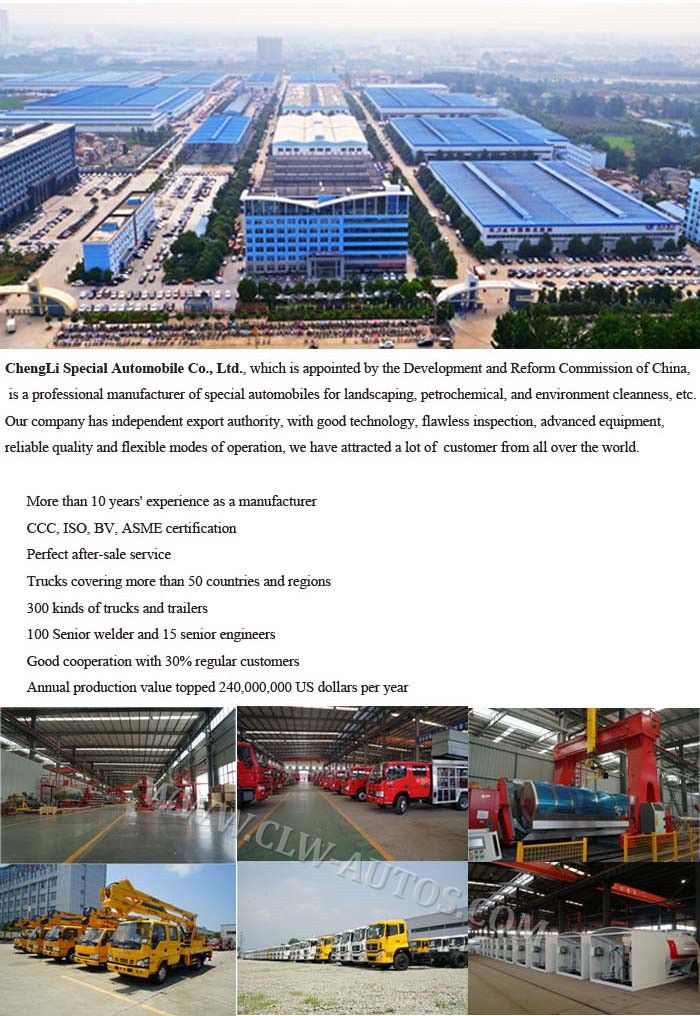

Factory Overview
Overseas Exhibition and Local Support
Customer Visiting
