Isuzu 4X2 14000L (11T) Compressed Compaction Compactor Refuse Garbage Truck, Garbage Truck, Compactor Garbage Truck

Product detail

Model NO.

CLWGC1160VQFRY

Diesel

Drive Wheel

Brand

Isuzu

Models

Medium

Usage

Compression Type

Condition

Product Name

Garbage Compactor Truck

Garbage Collection

Household Waste, Domestic Garbage, Non-Medical

Other Name

Refuse Collection Vehicle (Rcv), Refuse Compactor

Garbage Tank Volume

14000 L

Compression Pressure

16 MPa

Garbage Tank Material

Q345 (Manganese Steel)

Compression Mechanism

Bi-Directional Compression

Garbage Tank Thickness

5/5 mm (Wall/Floor)

Compression Ratio

1:0.8

Garbage Loading Mechanism

Rear-Loader (240 L Garbage Bin)

Controlling Methodology

Manual and Electrical

Garbage Loading Capacity

11000 Kg

Transport Package

Nude, Wax-Polishing

Specification

8990*2500*3280 mm

Trademark

CLVEHICLES

Origin

Hubei, Mainland, China

HS Code

8704223000

Type:

Compactor

Certification:

ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE

Volume:

10001-15000L

Emission Standard:

Euro 5

Transmission Type:

Manual

Payload:

ISUZU 4x2 205hp 14m³ Compactor garbage truck

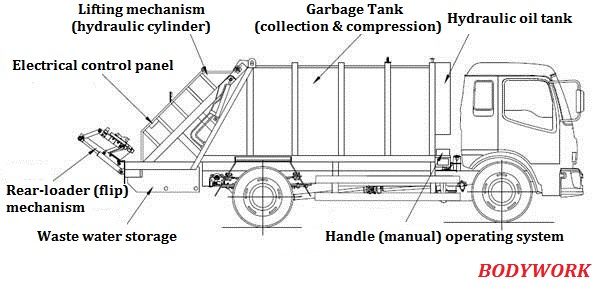

Vehicle		Bodywork
Speed	80 km/h	Garbage tank form	Arc-shaped
Passenger	3	Garbage tank volume	14000 L
Wheelbase	5200 mm	Garbage tank material	Manganese Steel (Q345)
Tyre	11.00R20	Garbage tank thickness	5/5 mm (floor/wall plate)
Engine power	205 hp (151 kw)	Garbage compression ratio	1:0.8
Displacement	5193 ml	Garbage compression pressure	16 mpa
Principle
Garbage compactor truck (also known as Refuse Compactor, Refuse Collection Vehicle/RCV) is a special type of urban environmental sanitation vehicle that collects and transports garbage, which can prevent secondary pollution caused by spilling along the road. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate. Two men (driver and operator) are required to perform the entire functionality of the compactor.
Application
It is mainly used to transport domestic garbage, but also can transport ash, sand, stone, soil and other bulk construction materials, and can also transport ore or coal in mines or coal construction, widely applied to environmental sanitation, municipal administration, factories and mining enterprises, property communities, garbage concentrated residential areas.
Advantages
1. Simple, efficient garbage collection; 2. Automatic repeated compacting function with high compression ratio; 3. More garbage loading capacity; 4. Automatic operation;(labor saving) 5. Environmental-friendly; 6. High efficiency of vehicle utilization; 7. Decent sealing characteristics;
