Dongfeng 153model hydraulic hooklift garbage truck with 13m3 Garbage Container
Description:A hooklift truck is a heavy-duty truck chassis that's been fitted with a hydraulic hooklift hoist. The hydraulic hoist system lets contractors, municipalities and other work vehicle users roll on and roll off different truck bodies or containers. ... Roll on a dump container.
1. Chassis: Sinotruk howo, dongfeng, isuzu, faw, jac, shacman, camc and so on.
2. Garbage Bin with different size options of hook lift garbage truck : 4cbm to 23cbm; Engine 266hp,290hp,336hp,371hp, Fast Gearbox 6Forward & 2Reverse;
3. Hydraulic Control Loading&Unloading System;
4. Different shapes of hook lift garbage truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type;
5. High-tensile steel chains:imported hydraulic oil cylinder and sealing material;
6. Lifting oil cylinder of hook lift garbage truck :double oil cylinder under garbage box,so garbage box can be lifted and self-dumped;
7. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck;
8. Best Choice for Garbage collection and transporation Inside City.
Specifications
| Cabin | Dongfeng 153 cab with air conditioner, LHD drive | |||||
| Overall dimensions(LxWxH) | 7100×2470×2900mm | |||||
| Wheelbase | 4500mm | |||||
| Tare Weight | 6595kg | |||||
| Front axles loading capacity | 6000kg | |||||
| Rear axles loading capacity | 9000kg | |||||
| Engine | B190 33(190HP), Euro II emission | |||||
| Gear box | 6 speeds,6 forwards,1 reverse gear,manual operation | |||||
| Steering | hydraulic steering with power assistance | |||||
| Clutch | Reinforced clutch | |||||
| Fuel tank | 200L | |||||
| Tire | 10.00-20 tyre, 7pcs including one spare tire | |||||
| Specialized Device | Boday volume: 13CBM | |||||
| Filler volume: 2CBM | ||||||
| Cycle Time of Filling: ≤20 S | ||||||
| Lifting Time of Filler: 10 S | ||||||
| Max.Compression Force: 25MPA | ||||||
Reference photos
Control panel

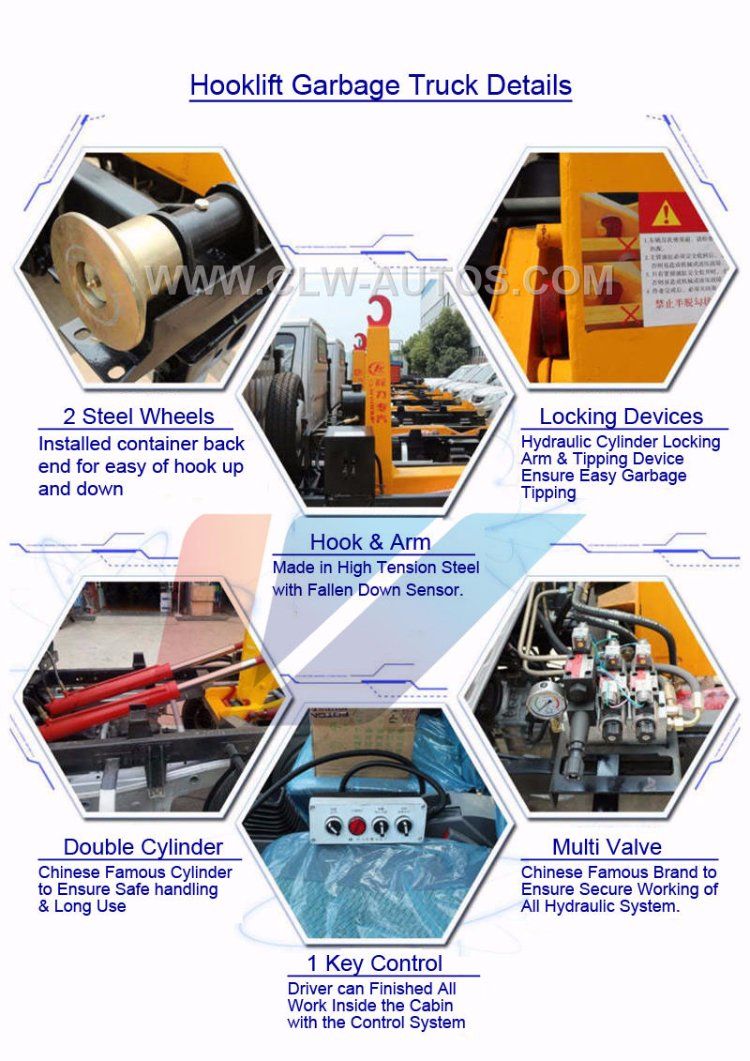

Hooklift structure
Working diagram
Factory overview
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
