Dongfeng Duolicar 4x2 7cbm 7000Liters 6tons garbage compactor truck waste removal truck for sanitation services
Product Descriptions
1. Making garbage collection simple: change the dirty appearance of the city and eliminate the secondary pollution;
2. High compression ratio and large loading capacity which is 2 times larger than usual garbage truck;
3. Easy Full Automatic Operation: electrical control system for loading and unloading operations.
4. One Person Operation: Reducing sanitation work, greatly improves the working efficiency.
5. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.
Product Specifications
| Truck Chassis Specification | |||
| Chassis model | CLW5858 | ||
| Cab | Dongfeng single row cab | ||
| Driving Type | 4*2 Left hand driving | ||
| Max Speed (km/h) | 115 | ||
| Overall dimension(mm) | 6865×1870×2200 | ||
| GVW( kg) | 8200 | ||
| Mass in working order ( kg) | 2460 | ||
| Wheelbase(mm) | 3800 | ||
| F/R track base (mm) | 1569/1530 | ||
| F/R overhang (mm) | 1068/1997 | ||
| Approach/Departure Angel | 22/25 | ||
| Tire | 7.50-16LT 14PR | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 5-speed | ||
| Bridge | Front axle | 3T | |
| Rear axle | 5T | ||
| Enging | Model | YC4E140-33 | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 4257 | ||
| Max output power/rotate speed (hp/rpm ) | 140/2800 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Material of tank | Material : Q235,Thickness :4(mm) side /4(mm) rear | ||
| Dirty tank volume | 7cbm/7000Liters/7M3/6tons | ||
| Filler volume | 500L | ||
| Filing time(s) | 8~10s | ||
| Filling cycle time(s) | 50~60s/once | ||
| Discharge type | Rear discharging | ||
| Time for discharging | 30-40S | ||
| Hydraulic pressure | 16Mpa | ||
| Controlling way | Manualy and electrical control | ||
Reference Photos
Truck diagram

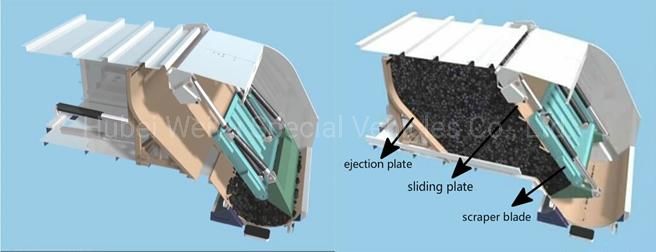

Main Working System
Garbage Loading and Unloading Process
Various Kinds of Garbage Trucks
Factory overview
Customer Inspection
Overseas Exhibition and After-sales Service
After-sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
