Fuel
Diesel
Drive Wheel
4×2
Brand
Clw
Models
Medium
Usage
Compression Type
Condition
New
Compressed Proportion
1:3/1:2
Power of Movement
Hydraulic Pump
Steering System
LHD or Rhd
Color
Customized
Discharging Time
<30s
Loading Time
12-30s
Tank Material
Carbon Steel
Control
Automatic
PLC
Siemens
Oil Pressure
19.6/200 MPa/Kg
Chassis Brand
Isuzu
Volume of Garbage Tank
8000L
Filling Cycle Time
50-60s/Once
Hydraulic Pressure
16MPa
Filler Volume
500L
Transport Package
Nude Packing with Wax
Specification
7865*2100*2500
Trademark
CLW
Origin
China
HS Code
8704223000
Production Capacity
200unit Per Month
Type:
Compactor
Certification:
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Volume:
3001-6000L
Emission Standard:
Euro 3
Transmission Type:
Manual
Payload:
20T

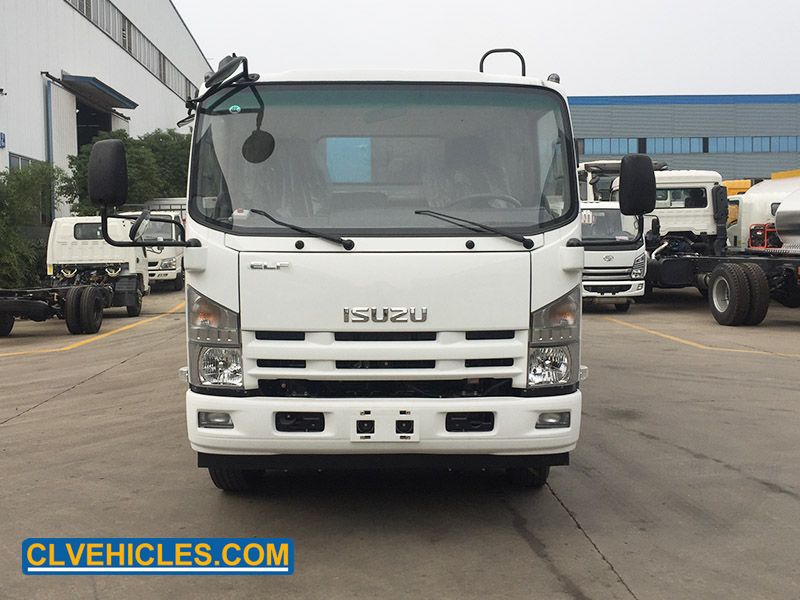

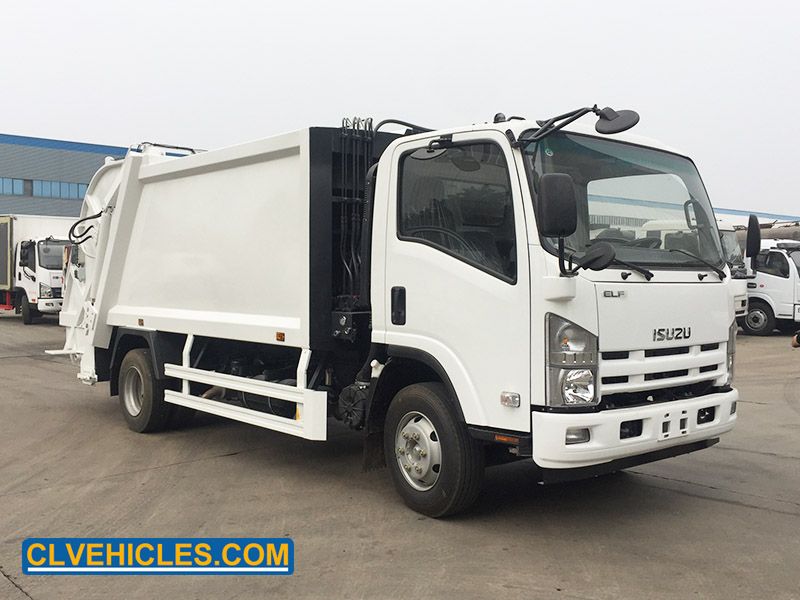

ISUZU 700P 8CBM 5ton Waste Compactor Garbage Truck
The compactor garbage trucks mainly uses the special devices such as the garbage carriage, packer, shovel, hydraulic system,to put the garbage into the tank and crush or flatten the garbage.It is convenient, efficient.It has automatic repeated compression function, and peristaltic compression function, and it has high compression ratio, high loading capacity, automation, good sealing and other advantages.
Product Parameters
Product Images
Product Details
| Chassis Description | |
| Cab | Single row non-longhead cab can turn over |
| Color | Optional |
| Allowable person in cab | 2/3 |
| Wheel base (mm) | 3815 |
| Number of axles | 2 |
| Front axle | 4000 |
| Rear axle | 7000 |
| Traction system | 4×2 |
| Tire specification | 8.25-20 |
| Tire quantity | 6+1 |
| Engine Description | |
| Engine manufacture | ISUZU Engines |
| Engine model | 4KH1-TCG40 |
| Emission standard | Euro 4 |
| Exhaust | 5190ml |
| Horse power | 190hp |
| Up-parts Description | |
| Loading Circulation Time (s) | 12-30 |
| Rubbish Discharging Time(s) | <30 |
| Oil Pressure(Mpa/kg) | 19.6/200 |
| Factual loading(kg) | 5000 |
| Compressed Proportion | 1:3/1:2 |
| Power of movement | Hydraulic pump |
| Standard Equipment | Equipped with hermetic dustbin, hydraulic system and operating system Automatic compress and uninstall, sewage can be collected by the dump tank. Pressure is large, leakproofness is good, operation is convenient and security is dependable |
