Model NO.
ZZ5317N4647A
Transmission Type
Manual
Payload
30T
Fuel
Diesel
Drive Wheel
8X4
Brand
Sinotruk
Models
Large
Usage
Compression Type
Condition
New
Hook Weight
27ton
Cargo Dimension
6800*2300*1500mm
Transport Package
Nude
Trademark
SINOTRUK
Origin
Qingdao, China
HS Code
8705909990
Production Capacity
10000 Units/Year
After-sales Service:
Three Guarantees Policy of Sinotruk
Warranty:
Three Guarantees Policy of Sinotruk
Type:
Recycling
Certification:
ISO9000, CCC, CE
Volume:
＞15000L
Emission Standard:
Euro 2

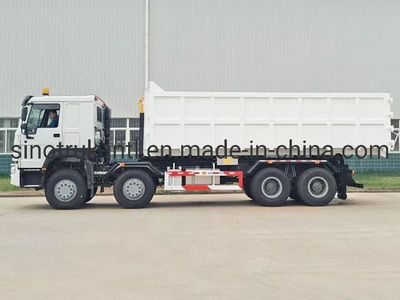

SINOTRUK HOOK LIFTER TRUCK 30ton 8x4
The hook lifter truck is often used in urban sanitation vehicles. It can be used with multiple garbage carriages to meet the rapid collection and transfer of garbage between cities. The carriage and hook arm can be customized according to customer requirements.
| Sinotruk HOWO 8x4 Hook lifter Truck | |
| Chassis Model | ZZ5317N4647A (Left/ Right Hand Driving Type Optional) |
| Engine | Model: WD615.47, Euro 2, 371HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
| Clutch | Single-plate dry diaphragm spring clutch,hydraulically operating with air assistance |
| Gearbox | Manual operation, HW19710, 10 forward and 2 reverse |
| Front Axles | 9500kg with drum brake system |
| Rear Axles | 16000kg, with drum brake system |
| Suspension | Leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
| Steering System | Hydraulic steering with power assistance |
| Braking System | Front drum rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms |
| Tires | 12.00R20 , with one spare tyre |
| Fuel Tank Volume (L) | 400 |
| Dead Weight(kg) | 13500 |
| Gross Vehicle Weight (kg) | 32000 |
| Overall Dimension (LxWxH) (mm) | 11200x2500x3450 |
| Wheelbase (mm) | 1800+4600+1400 |
| Maximum lifting capacity(ton) | 30 |
| Hanging time(s) | ≤35 |
| Unloading time(s) | ≤40 |
| Unloading refuse time(s) | ≤40 |
1: Payment:
A:30% advance payment after signed the contract, 70% balance should be paid before delivery. We can accept T/T and L/C
2. Delivery time:
A:25-45 working days after payment is received. According to different trucks models
3. How about your product quality?
A: The products have passed the ISO, CCC, SGS, BV, and CONTECNA qualification certification. All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
4: How long is the warranty period?
A:The warranty of our products is 1 year or 50000km, which comes first
