Model NO.
547
Transmission Type
Automatic
Payload
30T
Fuel
Gasoline
Drive Wheel
4×4
Brand
Jiefang
Models
Large
Usage
Compression Type
Condition
New
Transport Package
Bulk, RO-RO, Frame, Container
Specification
7160× 2250× 2650mm
Trademark
howo
Origin
China
HS Code
8503009090
Production Capacity
500PCS/Week
After-sales Service:
10 Year
Warranty:
12 Month
Type:
Recycling
Certification:
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Volume:
3001-6000L
Emission Standard:
Euro 2

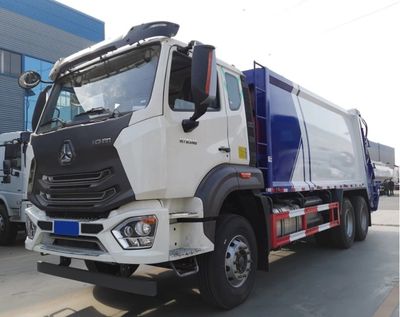

HOWO 15m3 18m3 20m3 Waste Garbage Collection Compactor Truck
garbage truck is composed of sealed garbage compartment, hydraulic system and operating system.Vehicle is fully sealed type, compression, to dump all, compression in the process of sewage into the water, more thoroughly solve the secondary pollution in the process of waste transportation issues, to avoid the inconvenience to people, the key parts adopt imported components, high pressure, good sealing, convenient operation, safety, etc.Optional rear hanging bucket turning mechanism or garbage bucket turning mechanism.

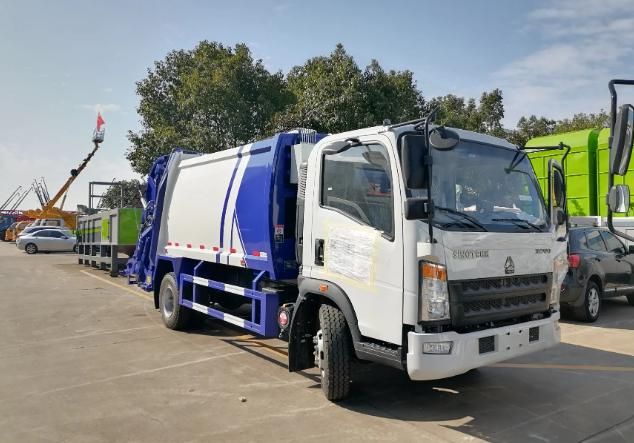

HOWO 15m3 18m3 20m3 Waste Garbage Collection Compactor Truck
| Truck Specification | ||||
| Chassis model | CLW5083YSLJ01S5 | |||
| Cab | Dongfeng / SINOTRUK single row cab | |||
| Driving Type | 4*2 6*4 Left hand driving | |||
| Max Speed (km/h) | 90 | |||
| Overall dimension(mm) | 8900*2500*3400 | |||
| GVW( kg) | 25000 | |||
| Mass in working order ( kg) | 11000 | |||
| Wheelbase(mm) | 4600+1350 | |||
| F/R track base (mm) | 2022/1830 | |||
| F/R overhang (mm) | 1068/1997 | |||
| Approach/Departure Angel | 22/20 | |||
| Tire | 12.00R20 | |||
| Clutch | Single-plate dry diaphragm spring clutch | |||
| Steering | Hydraulic steering with power assistance | |||
| Gear box | 10 Forwarder & 2 Reverse | |||
| Bridge | Front axle | 7T | ||
| Rear axle | 16T | |||
| Enging | Model | WD615.69 | ||
| Fuel Type | Diesel fuel | |||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | |||
| Exhaust(ml) | 9726 | |||
| Max output power/rotate speed (hp /rpm ) | 336/2200 | |||
| Braking system | Service Brake | Compressed air brake | ||
| Park Brake | Spring energy | |||
| Auxiliary brake | engine exhaust brake | |||
| Eletric system | 24v | |||
| Upper-Body specification | ||||
| Material of tank | material : Q235,Thickness :5(mm) side /6(mm) rear | |||
| dirty tank volume | 7m³ / 8M3 9M3 10M3 15M3 20M3 ETC | |||
| filler volume | 500L | |||
| filing time(s) | 8~10s | |||
| filling cycle time(s) | 50~60s/once | |||
| Discharge type | Dumping | |||
| Time for dumping | 30-40S | |||
| Hydraulic pressure | 16mpa | |||
| Controlling way | Manualy and electrical control | |||
 |  |
