Model NO.
GTBZ22S
Payload
20T
Fuel
Diesel
Transmission Type
Automatic
Drive Wheel
4x2
Condition
New
Platform Sizes
2400X900mm
Maximum Travel Speed
6km/H
Total Weight
12500kg
Maximum Load Capacity
340kg
Maximum Platform Height
22m
Maximum Working Height
23.7m
Transport Package
Complete Comply with Export Packaging Requirements
Specification
10154x2490x2800mm
Trademark
xcmg
Origin
Jiangsu, China
HS Code
84301000
Production Capacity
1000/Year
XCMG 22m Gtbz22s Straight Boom Type Aerial Work Platform

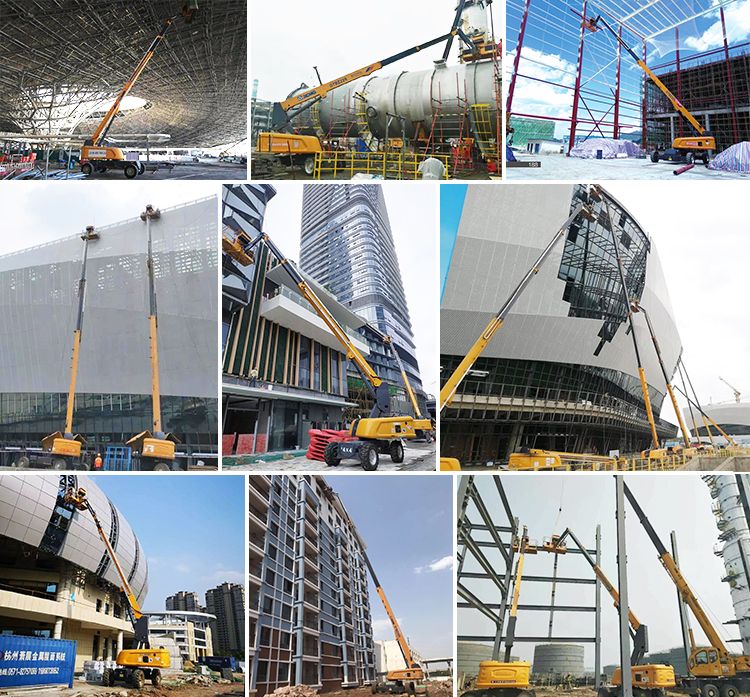

GTBZ22S is the highest-efficiency straight boom aerial work platform applied at the elevation of 22 meters. Being four-wheeldriven, it has the top-ranking gradeability among the industry; provided with the double-operating-radius curve, the machine has the industry-leading operating altitude/radius and carrying capacity. This type of machine, not only simple and high-efficiency, but also safe and reliable, may satisfy the diversified demands of different industrial users engaged in building construction, bridge and equipment maintenance, shipbuilding, petrochemical engineering, lease etc.
(1)Highest Efficiency in Operation
Being the highest-efficiency product applied at the elevation of 22 meters, it may be quickly lifted from the ground to the maximum altitude of operation just within 68 seconds.
(2)Outstanding Performance of Operation
With the maximum carrying capacity of 340kg, it has the industry-leading altitude and radius of operation, and may satisfy relevant construction demands on heavy loads and large operating spaces.
(3)Excellent Off-Road Performance
The four wide tyres, the real-time drive and the novel axle balancing system that may automatically make a response to the terrain will strengthen together the stability in driving on rough roads.
| Item | Unit | Parameter |
| a Overall Length | mm | 10150 |
| b Overall Width | mm | 2490 |
| c Overall Height | mm | 2800 |
| d Wheel Base | mm | 2500 |
| Maximum Working Height | m | 23.7 |
| Maximum Platform Height | m | 22 |
| Maximum Working Range | m | 18.3 |
| Maximum Load Capacity | kg | 340 |
| Boom Luffing Range | ° | -5~+75 |
| Rotation Angle of Rotating Platform | ° | 360 |
| Maximum Tail Wagging | mm | 1550 |
| Platform Size | mm | 2400×900 |
| Rotation Angle of Platform | ° | 180 |
| Total Weight | kg | 12500 |
| Maximum Travel Speed | km/h | 6 |
| Minimum Turning Radius | m | 6 |
| Minimum Ground Clearance | mm | 230 |
| Maximum Grade Ability | % | 45 |
| Tire Specification | - | 355/55D625 |
| Engine Model | - | Perkins 404D-22T |
| Rated Power of Engine | kW/(r/min) | 43/(2600) |
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
