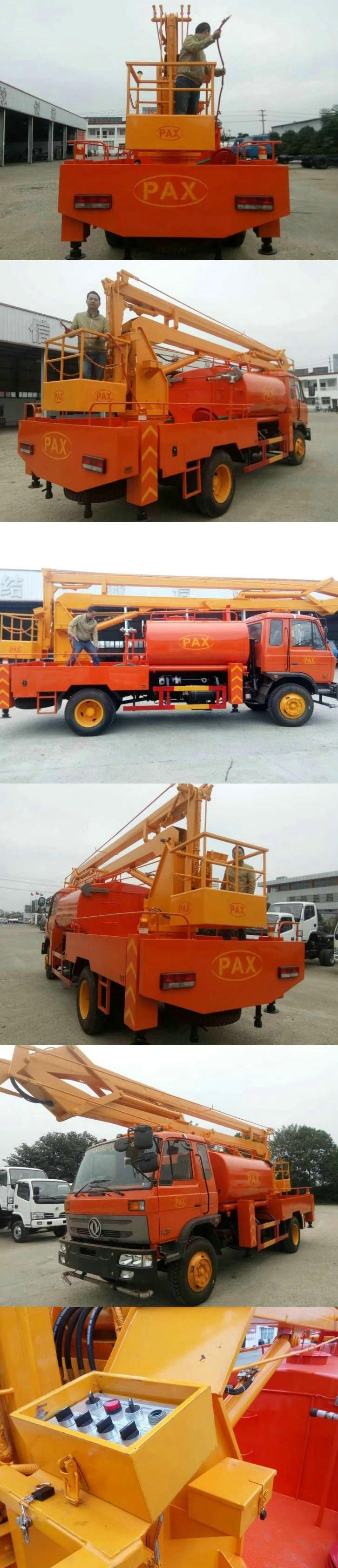

Aerial Work Platform Truck Mounted with Water Clean Tank ( 16m Bucket Lift , 4000L Water Tank )
fully Hydraulically Operate Arial Work Platforms
fully Hydraulically Operate Arial Work Platforms
Max operation height 12m,14m,16m ,18m,22m,16m
max operation radius 5.7m, 6.3m,7m
max working platform rating loading=200kg,
Aerial Working Platform High Altitude Working Truck for Street Lamp Maintenance Function:
Telescopic beam lifter truck (also called aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Specification:
DONGFENG 4*2 190hp 16m aerial work platform truck with water tank
| Aerial truck with water tank/aerial platform fire truck/truck aerial fire platform | |||
| Vehicle brand | DRZ | Chassis brand | DONGFENG |
| Allowable person in cab | 3 | Color | Optional |
| Front/Rear axle load | 5800/10000(kg) | Wheel base | 3950/4500/4700(mm) |
| Tire specification | 9.00-20 16PR | Traction system | 4*2 |
| Engine power | 90(km/h) | Emission standard | Euro 3 |
| Working height | 12-22(m) | Max working radius | 8.3(m) |
| Boom type | Two section folding arm | Rotation Angle | 360(°) |
| Rated loading in the bucket | 200(kg) | Loading of hook | 1000(kg) |
| Supporting leg | Four H type hydraulic legs | Control mode | Hydraulic control or electronic control |
| MOQ | 1set | Warranty | 2 years |
Aerial truck with water tank/aerial platform fire truck/truck aerial fire platform
Specifications
1.Working height can be 11m,12m,14m,16m,18m,20m,22m.
2.Boom number:within 12m is two section folding arm,over 12m is three section folding arm.
3.Cabin type:single row or double rows
Ask for better price
Specificatio
Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.
The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr
Truck may be medium light truck of 3.% ton.
Welcome all around world customer visit our factory
