ORIEMAC articulating boom lifts offer high capacity, great outreach and easy maintenance. The larger work envelope provides you with access to those hard-to-reach places. Electric articulating boom lifts are environmentally friendly with zero emissions, suitable for sensitive work environments.

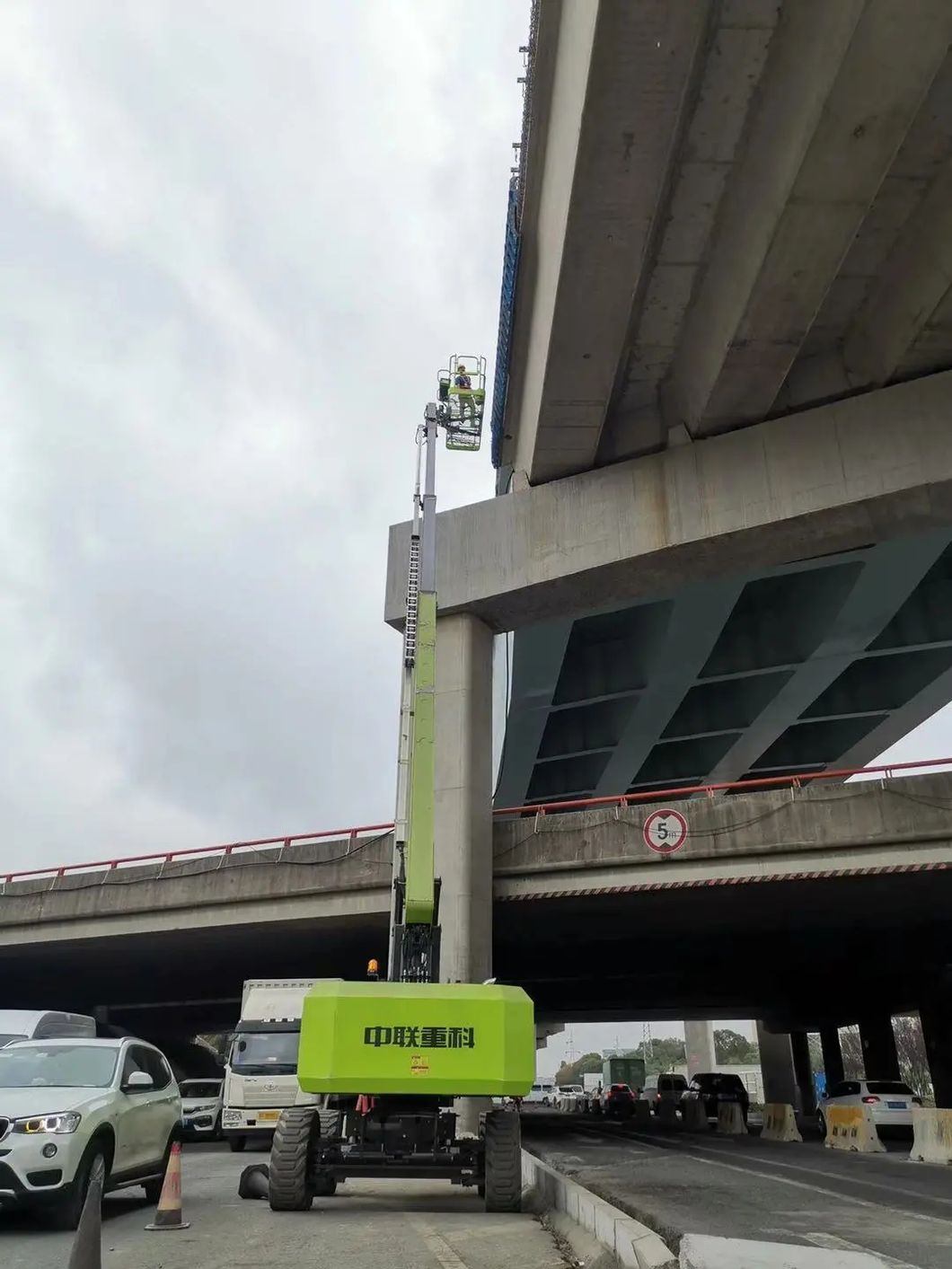

ZA14JE is an electric articulating boom lift. It adopts a center layout and has a great structural rigidity. Excellent energy management system gives longer running time and improves battery life. The accurate and efficient AC drive system provides strong power and smooth control. Advanced dual control system (valve control + pump control) offers an energy-saving and efficient operation. With low noise, zero emissions and easy maintenance, this boom lift is ideal for indoor applications.
| Electric Articulating Boom Lifts | |
| Comply with CE/ANSI/GB Standard | |
| Model | ZA14JE |
| Size | |
| Work Height | 16m |
| Platform Height | 14m |
| Horizontal Outreach | 7.50m |
| Up and Over Height | 7.74m |
| A - Stowed Length | 6.6m |
| B - Stowed Width | 1.75m |
| C - Stowed Height | 2m |
| D - Platform Length | 1.52m |
| E - Platform Width | 0.76m |
| F - Wheelbase | 2.05m |
| G - Ground Clearance | 200mm |
| Performance | |
| Platform Capacity | 230kg |
| Drive Speed | 6.1km/h |
| Gradeability | 30%(17°) |
| Axles Oscillation | |
| Turning Radius (Inside) | 0.79m |
| Turning Radius (Outside) | 3.15m |
| Swing | 360° continuous |
| Platform Rotation | ±90° |
| H-Tail Swing | 0m |
| Max. Working Slope | 2/4° |
| Max. Wind Speed | 12.5m/s |
| Power | |
| Battery | 24×2V/320Ah |
| Charger | 48V/60A |
| Drive Motor | AC 32V |
| Lift Motor | DC 48V |
| Auxiliary Power | Manual Pump |
| Hydraulic Tank Capacity | 30L |
| Tire | |
| Type | 240/55D17.5 Foam-filled Tires |
| Weight | |
| Gross | 6800kg |
| Highlights | |
| ZA14JE | |
| Center layout, great structural rigidity, and small boom deflection | |
| Advanced dual control system (valve control + pump control) offers a energy-saving and smooth control | |
| Accurate and efficient traveling AC drive system provides strong power and stable control | |
| Features | |
| Standard Features | |
| Proportional control | |
| All motion alarm | |
| Flashing amber beacon | |
| Self-closing entry gate | |
| Emergency descent system | |
| Emergency stop button | |
| Auto-leveling system | |
| On-board diagnostic system | |
| Over tilt protection system | |
| Load sensing system | |
| 4.3' LED display | |
| Horn | |
| Accessories & Options | |
| AC power to platform | |
| Airline to platform | |
| Non-marking tire | |
