Medical Equipment
Without Medical Equipment
Horsepower
100-160hp
Axle
Single
Condition
New
Transport Package
Container or RO-RO Ship
Specification
5341*2032*2630
Trademark
CLW
Origin
China
HS Code
8705904000
Production Capacity
100 Set/Month
After-sales Service:
Video Technical Support ,Online Support
Warranty:
1 Year or 30000km
Certification:
ISO9000, CCC
Transmission Type:
Manual
Fuel:
Diesel
Length:
3-8m

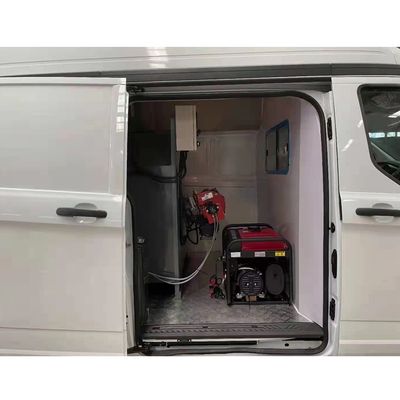

F-ord Animal harmless treatment vehicle/ Animal funeral car
Monitoring Ambulance Specification
Cab | Cab with air condition | |
Chassis | Dimension | 5341*2032*2630mm |
Size /Number of Tyre | 215/75R16LT /4pcs | |
GVW | 3300kgs | |
Curb weight | 3300kgs | |
Rated capacity | 3~8persons. | |
Wheel base | 3300mm | |
Engine | Brand | Ford |
Displacement | 1997ml | |
Power | 149KW | |
Fuel | Gasoline | |
Emission Standard | Eour VI |
1: Interpretation and design basis
1. Preparation basis of proposal for pet carcass and industrial waste incineration equipment:
2. National Environmental Protection Bureau GB18484-2001 control standard for hazardous waste incineration was implemented on January 1, 2002.
3. Law of the people's Republic of China on animal epidemic prevention
5. Environmental health standard for medical waste incineration CJ 3036-95 4 and gb19218-2003 national standard of the people's Republic of China
Standard
2, Types of incineration: pets, animal carcasses, medical waste, etc.
1. Furnace type: horizontal furnace body combustion chamber
2. Incineration capacity: 50kg / h
3. Ignition mode: automatic ignition
4. Fuel used: Diesel
5. Fuel consumption: 6.5-9.5kg/h (self regulated according to the quantity of incinerator)
5. Feeding mode: incineration furnace type
6. Ash removal method: manual assistance
7. Design calorific value: 200000 kcal
8. Treatment method: primary combustion plus jet high temperature reverse combustion + secondary combustion + three-stage flue gas purification system
9. Incineration temperature: primary chamber: 400-650 ºC; secondary chamber: 850-1000 ºC
10. Flue gas residence time: ≥ 2S
11. Floor area of main furnace: LWH 2.0m × 1.1m × 1.5m
12. Thermal ignition reduction rate of incineration residue: < 3%
3, Safety index:
1. The incinerator is equipped with safety protection device, which can safely and automatically cut off the fuel supply when the ignition is abnormal after the burner is started,
Stop the equipment.
2. Before stopping the operation, the device detects the cooling procedure of the combustion chamber, so that when the temperature of the combustion chamber drops to the set temperature, it will burn
The furnace stops running.
3. There shall be connection protection between the control cabinet and each control equipment to avoid electric leakage. When the relative humidity is 85%, the electrical circuit
The insulation resistance shall not be less than 24m Ω, and there shall be a grounding wire to transmit leakage current.
1. Preparation basis of proposal for pet carcass and industrial waste incineration equipment:
2. National Environmental Protection Bureau GB18484-2001 control standard for hazardous waste incineration was implemented on January 1, 2002.
3. Law of the people's Republic of China on animal epidemic prevention
5. Environmental health standard for medical waste incineration CJ 3036-95 4 and gb19218-2003 national standard of the people's Republic of China
Standard
2, Types of incineration: pets, animal carcasses, medical waste, etc.
1. Furnace type: horizontal furnace body combustion chamber
2. Incineration capacity: 50kg / h
3. Ignition mode: automatic ignition
4. Fuel used: Diesel
5. Fuel consumption: 6.5-9.5kg/h (self regulated according to the quantity of incinerator)
5. Feeding mode: incineration furnace type
6. Ash removal method: manual assistance
7. Design calorific value: 200000 kcal
8. Treatment method: primary combustion plus jet high temperature reverse combustion + secondary combustion + three-stage flue gas purification system
9. Incineration temperature: primary chamber: 400-650 ºC; secondary chamber: 850-1000 ºC
10. Flue gas residence time: ≥ 2S
11. Floor area of main furnace: LWH 2.0m × 1.1m × 1.5m
12. Thermal ignition reduction rate of incineration residue: < 3%
3, Safety index:
1. The incinerator is equipped with safety protection device, which can safely and automatically cut off the fuel supply when the ignition is abnormal after the burner is started,
Stop the equipment.
2. Before stopping the operation, the device detects the cooling procedure of the combustion chamber, so that when the temperature of the combustion chamber drops to the set temperature, it will burn
The furnace stops running.
3. There shall be connection protection between the control cabinet and each control equipment to avoid electric leakage. When the relative humidity is 85%, the electrical circuit
The insulation resistance shall not be less than 24m Ω, and there shall be a grounding wire to transmit leakage current.
