Model NO.
JBC-35
Transmission Type
Automatic, Automatic
Emission Standard
Euro II, Euro II
Displacement
4, 4.329L
Fuel
Diesel, Diesel
Condition
New, New
After-Sales Service
["Provide a Lifelong Online Problem Solution","1 Year Warranty Service"]
Drive Mode
6X4
Payload
8400kg
Maximum Horsepower
170
Engine
Ycd4j22g
Power(W)
85kw
Operating Weight
7600 Kg
Concrete Output
3.5 Cbm/Batch, 14cbm/Hr
Drum Volume
5.2 Cbm
Shovel Capacity
0.6 Cbm
Loading Capacity
8400 Kg
Gradeability
40%
Air Conditioner
Yes
Optional Engine
Cummins
Optional Configuration
Electronic Weighing, Centralized Greasing
Transport Package
40hc
Specification
7830*2680*4170 mm
Trademark
SDJK
Origin
Shandong
HS Code
8705400000
Production Capacity
100sets/Month
After-sales Service:
Provide a Lifelong Online Problem Solution
Warranty:
1 Year Warranty Service, 12 Months Warranty Service
Certification:
ISO9000, CE, Euro II, ISO9000, CE, ISO9000, CE

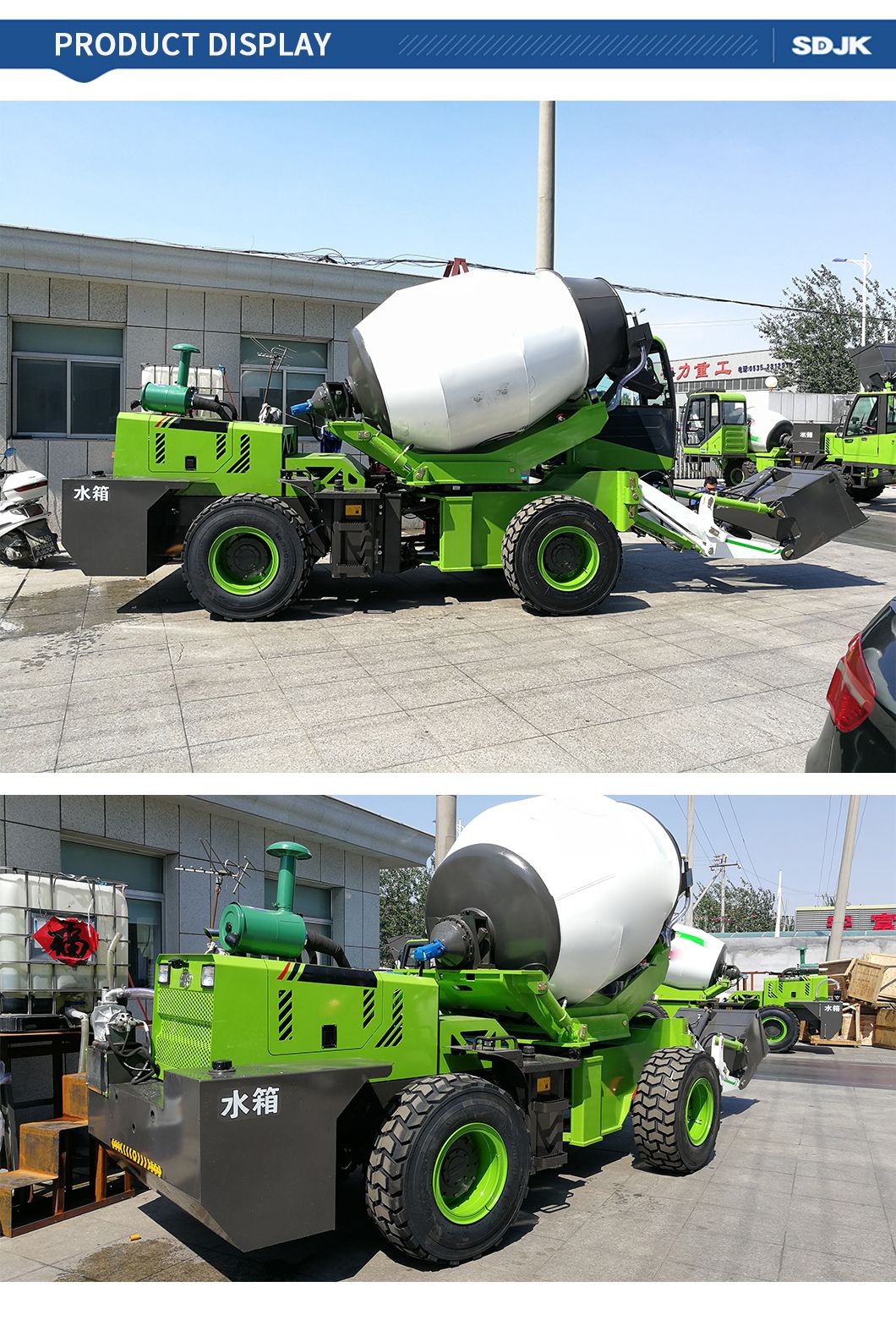

1.JBC-35 Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture..
2. Cab and mixer drum can be integrated , rotate 270°together, which makes forward-reverse universal. Rolling drum can also be lifted up 20°to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%.
3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.
4. Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively.
5. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.
The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.
2. Cab and mixer drum can be integrated , rotate 270°together, which makes forward-reverse universal. Rolling drum can also be lifted up 20°to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%.
3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.
4. Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively.
5. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.
The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.
| Model | JBC-35 | Max. Water suction Volume | 550 L/min. (self-priming hydraulic water pump) |
| Mixing Capacity | 3.5 m³ | Water tank Volume | 2x310 L |
| Geometrical Capacity | 5.3 m³ | Max. Travel Speed | 30 km/h |
| Concrete Output | 3.5 m³ / batch, 14 m³ / h | Grade ability | 40° |
| Drum Rotating Speed | 16-20 rpm | Min. Turning Radius | 5300 mm |
| Drum Rotating Angle | 270° | Operating Weight | 7200 kg |
| Model | YUCHAI 4105 | Max. Load | 8400 kg |
| Type | 4-cylinder, 4-stroke, turbo-supercharged,water-cooling | Max. Gross Weight | 15600 kg |
| Rated Power | 85 KW (116HP) @ 2400 rpm | Overall Dimension (L×W×H) | 7830*2680*4170 mm |
| Emission Standard | Euro II | Fuel Tank Volume | 75 L |
| Loading Bucket Capacity | 0.6 m³ | Total Hydraulic System Capacity | 75 L |
| Loading Times to Full Drum | 6 Times | Oil Tank Volume | 16 L |
| Discharge chute | 2 Sets |
