Model NO.
9CBM
Payload
30T
Fuel
Diesel
Drive Mode
6x4
Maximum Horsepower
300-400hp
Condition
New
Power
290HP(213kw)
Transport Package
Nude
Specification
9CBM
Trademark
SINOMADA
Origin
China
HS Code
8426120000
Production Capacity
50/Month
After-sales Service:
1 Year
Warranty:
1 Year
Certification:
ISO9000
Transmission Type:
Automatic
Emission Standard:
Euro 4
Displacement:
6

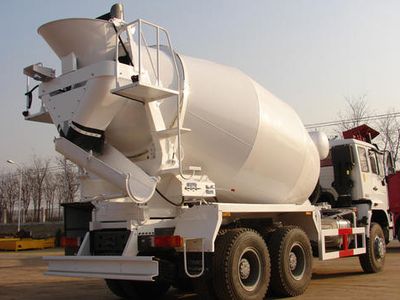

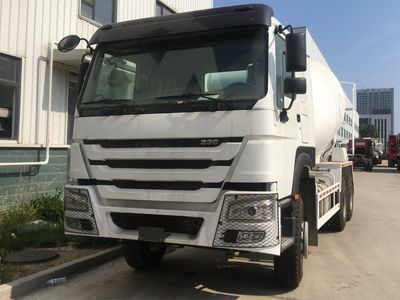

Howo 6x4 Mixer Truck 9CBM Concrete Mixer Truck
Contact
Terry
Product Description
HOWO Mixer basic configurations and main technical parameters (6×4, Euro , extended cab)
| Typical truck model | ZZ5257GJBN3641W | ZZ5257GJBN3841W | ZZ5257GJBN4041W | |||||
| Cab | Model | HW76 | ||||||
| Type | HW76 extend cab, one berth, with A/C all steel forward control, 55°hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt. | |||||||
| Engine | Model | WD615.87 | WD615.69 | WD615.47 | ||||
| Rated power | 290HP(213Kw/rpm) | 336HP(247Kw/rpm) | 371HP(273Kw/rpm) | |||||
| Displacement | 4 stroke direct injection diesel engine | |||||||
| Type | 6 cylinder in-line with water cooling, turbo-charging & intercooling | |||||||
| Wheelbase | 3600+1400mm | 3800+1400mm | 4000+1400mm | 4300+1400mm | ||||
| Mixer tanker size | 8CBM | 9CBM | 10CBM | 12CBM | ||||
| Clutch | Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance | |||||||
| Transmission | SINOTRUK HW series 10/12/16 speed transmission, 10 forward and 2 reverse | |||||||
| Front axle | Steering axle with double T-cross section HF9 | |||||||
| Drive axle | Pressed axle housing, central single reduction HC16 Ratio:5.73 | |||||||
| Chassis | Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Spare wheel carrier: with one spare wheel Aluminum fuel tank: with 400 L fuel tank with locking fuel cap | |||||||
| Steering | Germany , hydraulic steering with power assistance | |||||||
| Brakes | Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option: ABS | |||||||
| Wheel & Types | Rims: 8.0-20, 10 hole-steel Types 11.00-20 tube; Option: 12.00-20 tube, 12.00R20 tube | |||||||
| Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW Alternator: 28V, 1540W; Batteries: 2×12, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp | |||||||
