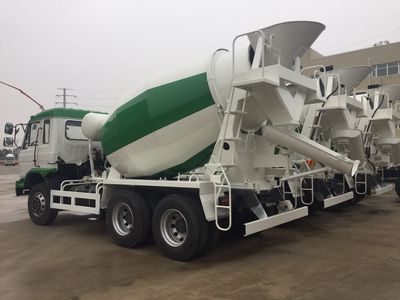

DFAC 10MT Cement Concrete Mixer Truck 10 Wheeler 6x4/6x6 RDH/LHD
Product Parameter
Vehicle parameters | |||
Vehicle Model | DRZ5254GJBD | Vehicle Brand | DONG RUNZE |
Overall dimensions | 8870x2500x3030mm | Curb weight | 11800kg |
Loading capacity | 10-12m3 |
|
|
Chassis parameters | |||||
Chassis model | EQ1254GJ2 | Chassis brand | DONGFENG | ||
Overall dimensions | 8550x2480x3200mm | Wheel base | 3800+1300mm | ||
Front/rear wheel track | 1940/1860/1860mm | Front/rear suspension | 1250/1750mm | ||
Approach/departure angle | 32/18° | Maximum speed | 85km/h | ||
Chassis Manufacturer | Dongfeng Motor Corporation | ||||
Cab | Configuration | DONGFENG a row and a half cab, allowable 3 passengers | |||
Color | White, other color is optional | ||||
Engine | Model | YC6A240-33 | |||
Emission | Euro 3 | ||||
Type | 6 cylinders, in-line,4-stroke, turbo inter-cooling,diesel engine | ||||
Rated power | 240hp,rated power speed 2300rpm | ||||
Displacement | 7255ml | ||||
Max.torque | 960N.m | ||||
Bore x stroke | 108x132mm | ||||
Manufacturer | Guangxi Yuchai Machinery Group Co., Ltd. | ||||
Tire | Size | 10.00-20 | |||
Number | 10+1 nos | ||||
Frame | 280(8+5)mm | ||||
Front axle | 5.0T | ||||
Rear axle | 10T | ||||
Drive form | 6X4 | ||||
Rated voltage | 24V,DC | ||||
Gear box | FAST, 9 speed forward 1 reverse. | ||||
Steering device | Power assisted steering | ||||
Steering wheel | Left hand drive | ||||
Concrete mixer truck structure parameters | ||||
Mixing capacity(m³) | 10-12 | Color and Logo | Optional | |
Feeding speed (m³/min) | ≥8 | Discharge speed(m³/min) | ≥5 | |
Discharge residual rate | ≤0.5% | Slump scope(mm) | 50-210 | |
Water tank capacity(L) | 300 | Water pressure(Mpa) | 0.35-0.38 | |
Tank material | 5mm alloy steel | Tank front head | 8mm alloy steel | |
Standard configuration | chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device. | |||
10m3 | Italy PMP reducer, EATON hydraulic pump, EATON hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material) | |||
