Model NO.
SY5423THB 560C-8D
Payload
50T
Fuel
Gasoline
Drive Mode
8x4
Maximum Horsepower
300-400hp
Condition
New
Vertical Reach
56 M
Output
200/137 M3/H
Pressure
8.3/12 MPa
Empty Weight
43600kg
Horizontal Reach
51m
Reach Depth
36.6m
Chassis Brand
Benz
Transport Package
14000*2500*4000mm
Specification
10050*2530*3850mm
Trademark
SA-NY
Origin
China
HS Code
8705400000
Production Capacity
5000units/Year
After-sales Service:
Free Spare Parts
Warranty:
1year
Certification:
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Transmission Type:
Automatic
Emission Standard:
Euro 4
Displacement:
9

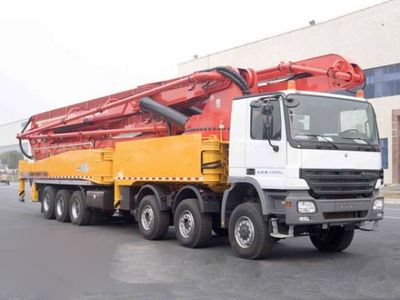

SYG5441THBCB 560C-10Truck-mounted Concrete Pump
Features
* Energy-saving Technology
When system pressure reaches 12Mpa: No. of stroke reaches 29t/Min. Pump efficiency increases 25%(Max). Diesel consumption decreases 10%.
* Anti Overswing Technology
To use top rotation brake technology to control the amplitude of Boom on swing, the boom's overswing amplitude is reduced by 60%.
* Self-diagnosis Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.
Parameters
Model | SYG5441THBCB 560C-10 |
Length | 14000 mm |
Width | 2550 mm |
Height | 4000 mm |
Empty Weight | 43600 kg |
Vertical Reach | 56 m |
Horizontal Reach | 51 m |
Reach Depth | 36.6 m |
Output | 200/137 m³/h |
Pressure | 8.3/12 MPa |
